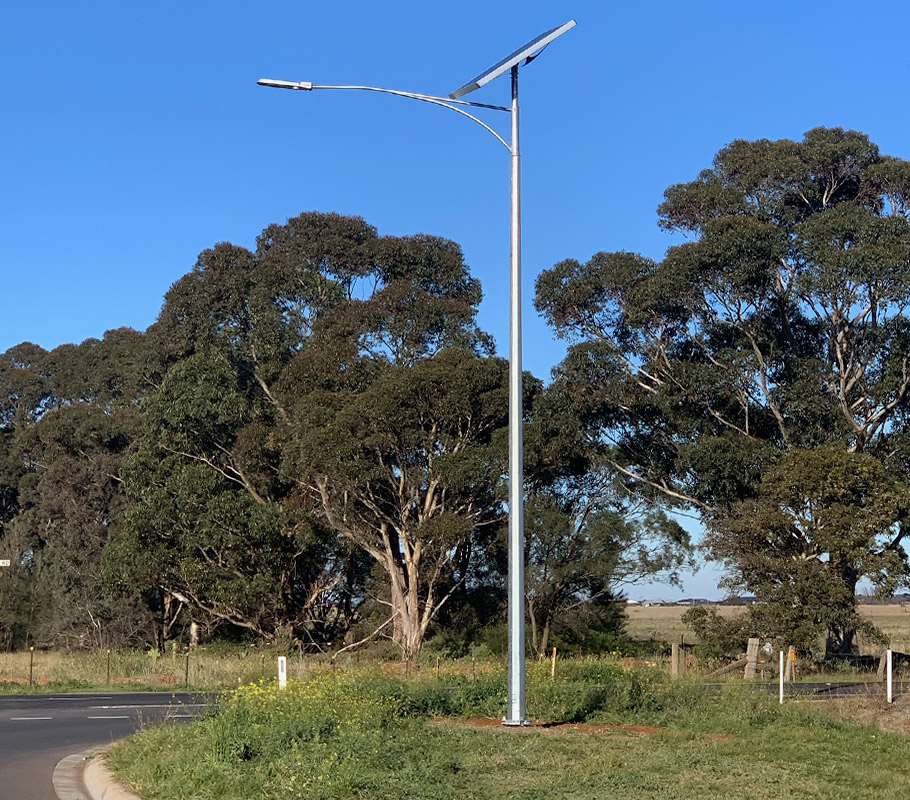

Roadway Solar V-LED Light

Roadway Solar V-LED Light

Ideal solar lighting solution

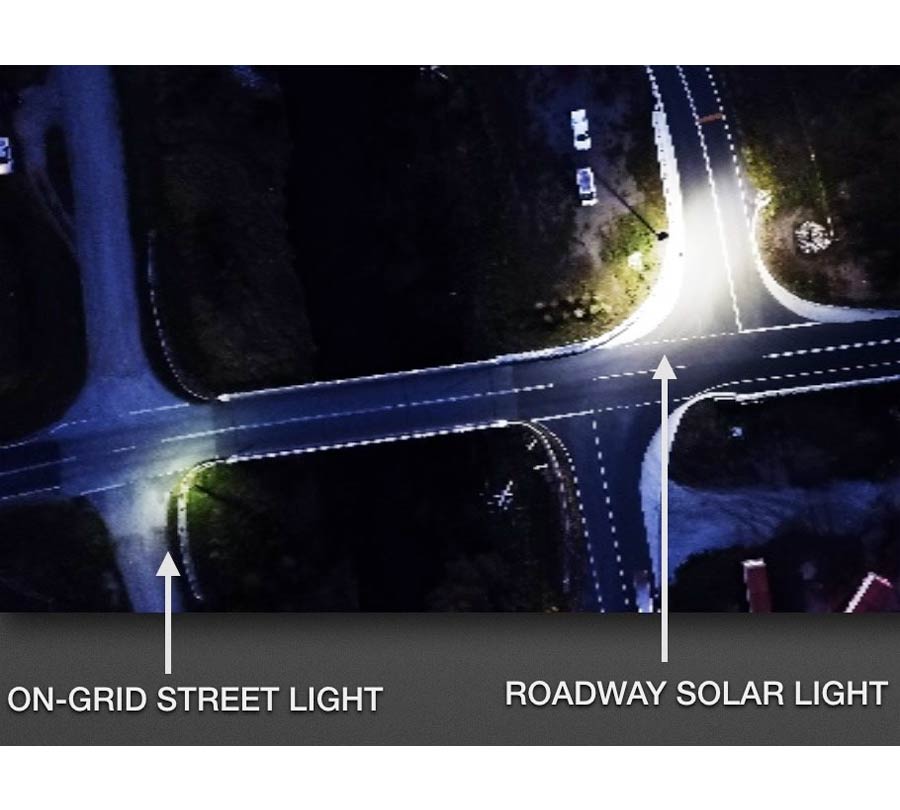

The Roadway Solar V-LED Light is the ideal solar lighting solution for areas without affordable access to power. This solar light has been designed to provide bright light throughout the night, out performing the average on-grid street light.

With new and improved technology in solar panels, batteries and LED’s, the Roadway Solar V-LED Light provides a powerful spread. It has been designed with ease of installation in mind, and does not require deep cycle gel batteries which need to be buried in the ground. This light has the battery storage to run at full capacity for several days, even in the case of inclement weather.

The Roadway Solar V-LED Light will suit many applications, including remote roads, parklands, walking tracks, multi-use streetscapes, carparks, mining areas and blackspot locations.

  • 75W Australian approved V-LED Luminar
  • 360W solar panel
  • Built-in lithium-ion batteries
  • Heavy duty aluminium frame
  • Direct bury slip base pole
  • Wind rating: Region A, B & C
Buy Online
Need to order a large quantity? Enquire now

Videos

Solar Integrated Lighting 30w
Roadway Solar Light
100w Ultra Solar Lighting
Solar Lighting

Specifications

Product Code K20200106
Rating IP66
IK06

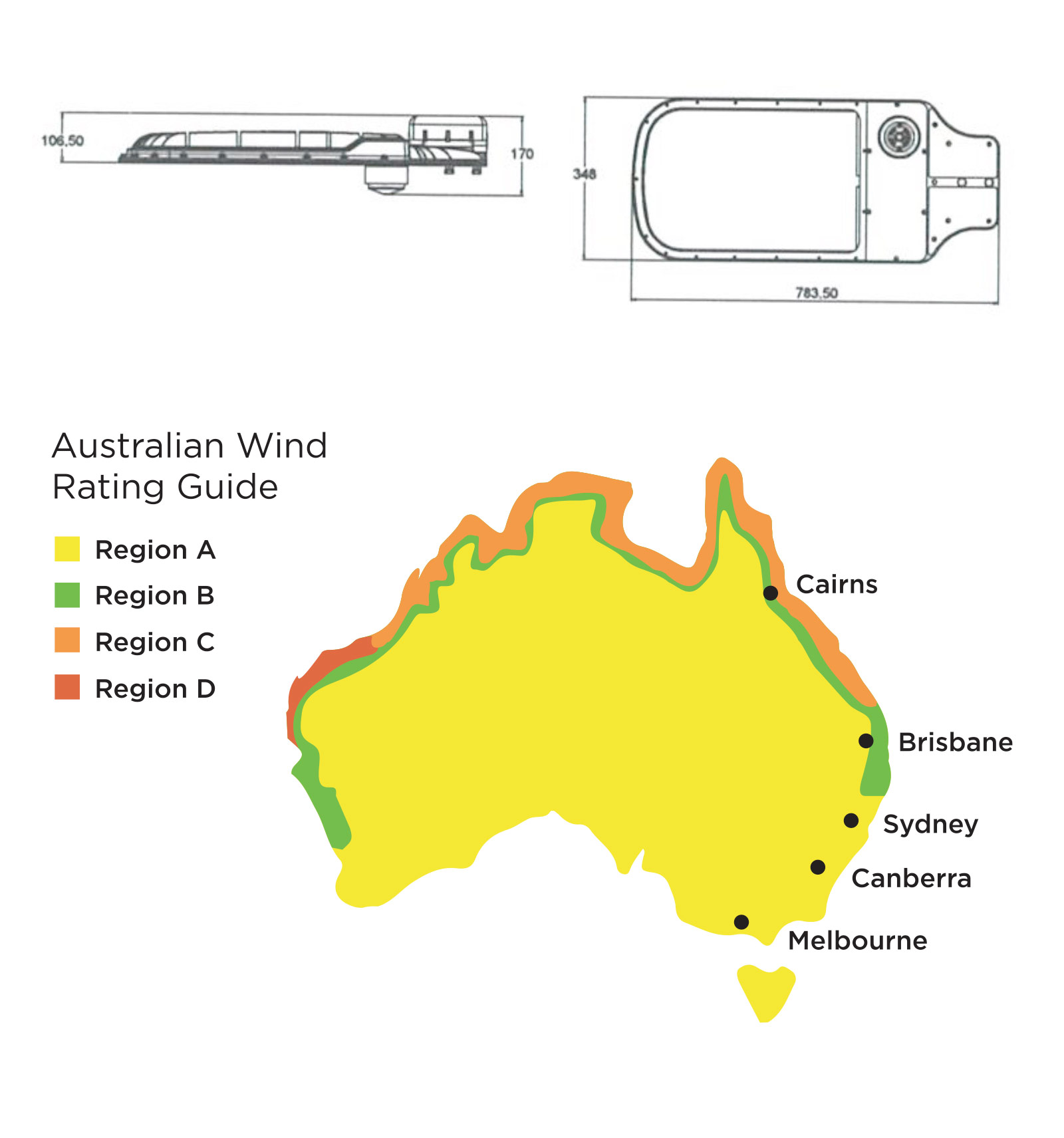

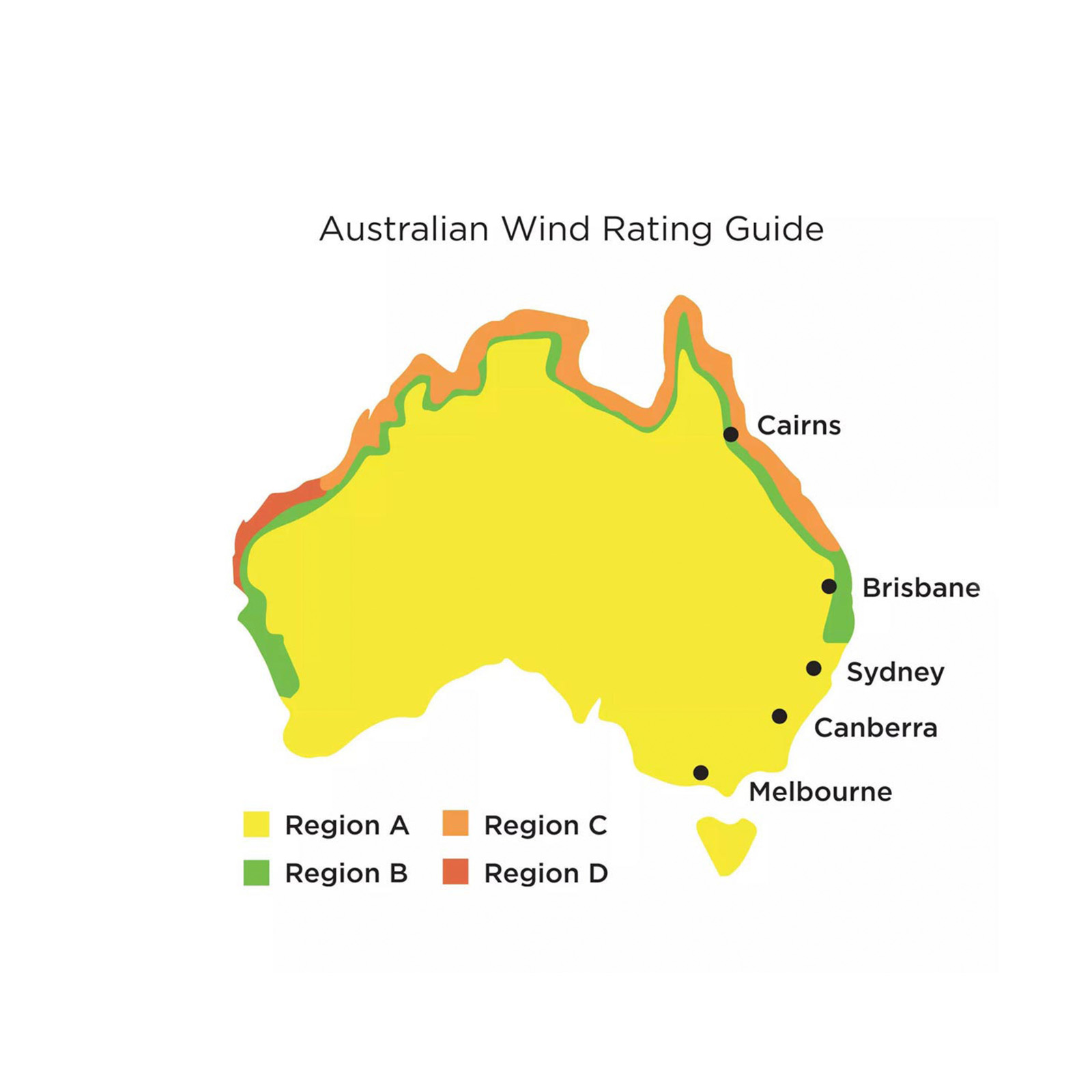

Wind Rating Regions A, B & C
Light Head Body High Pressure Die Cast Aluminium
LED CREE
Wattage 75W Aldridge V-LED
Finishing Powder Coated (std. grey)
Power 360W Solar Panel
Pole Wall Thickness 7mm
Pole Grade GDE 350



Please note: Saferoads Roadway Solar V-LED Light is mounted on a direct bury, slip base pole. The pole is to be installed in accordance with local road or power authority requirements. Typically the hole is to be backfilled with compacted layers of approved natural material, crushed rock or stabilised sand. An un-reinforced concrete pad at the bottom of the hole may be required to help prevent the pole sinking over time.

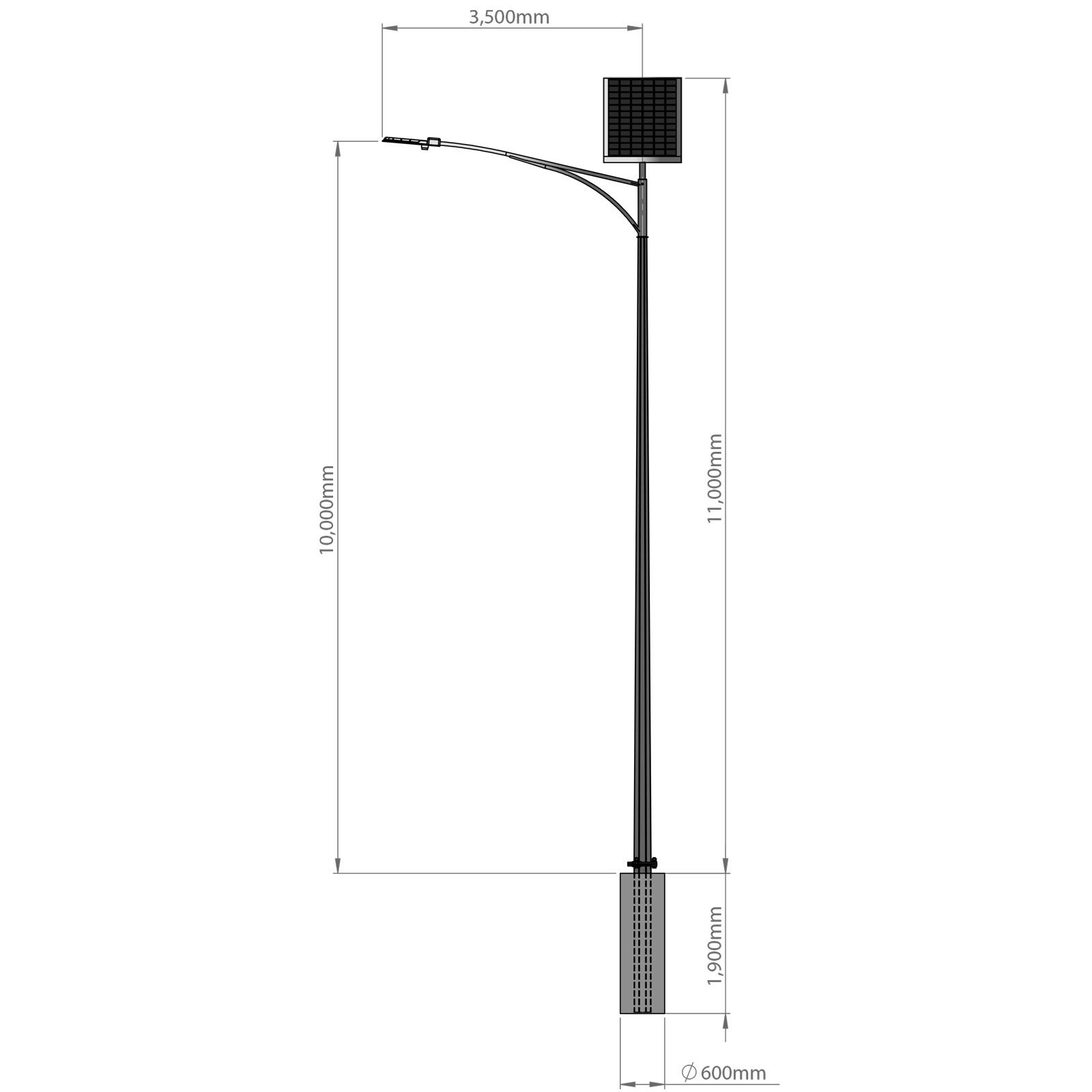

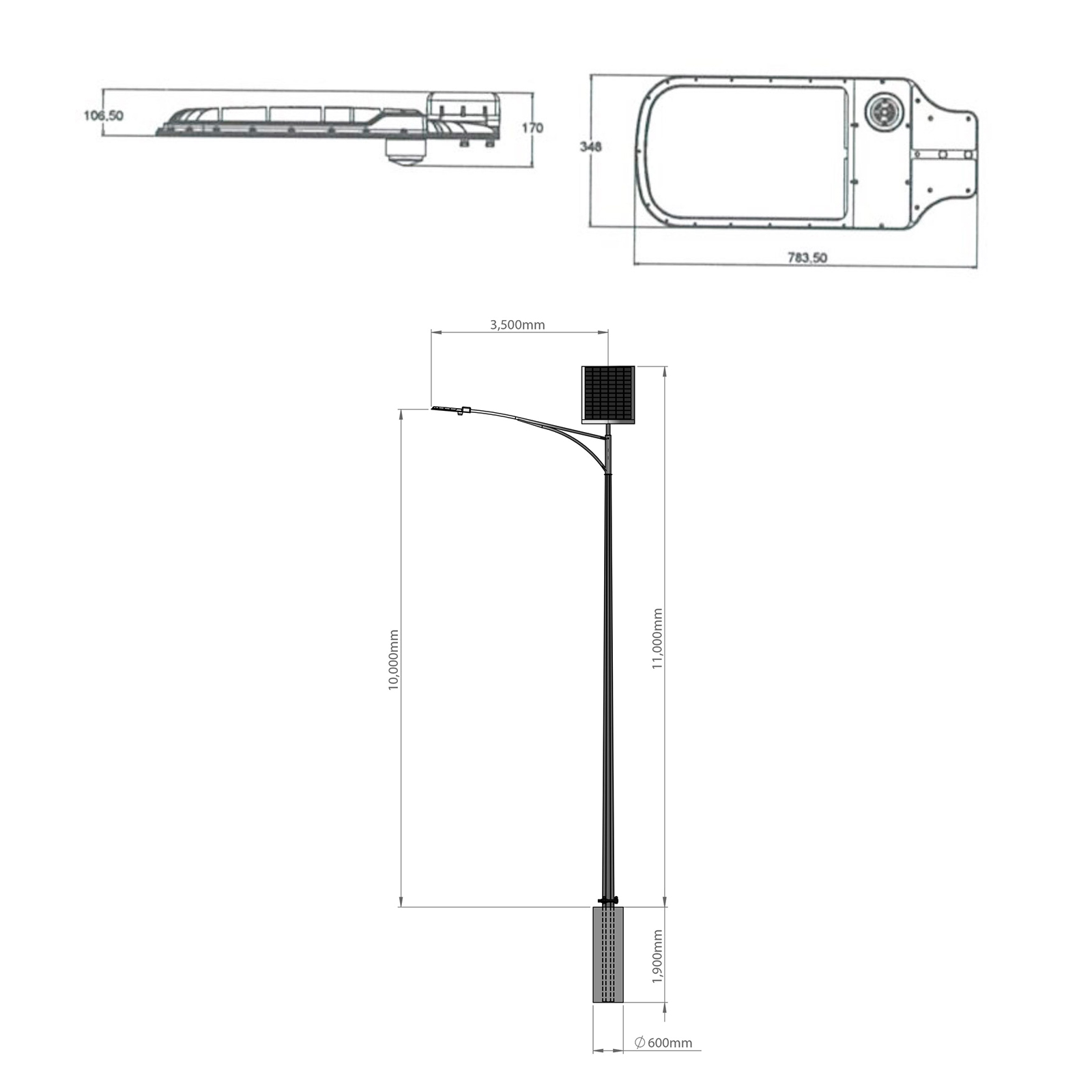

technical drawing
Technical drawing
Technical drawing

Downloads

Warranty SWMS SOP - 8.5m Slip Base Solar Pole SOP - FAT 320W Panel and 75w Light

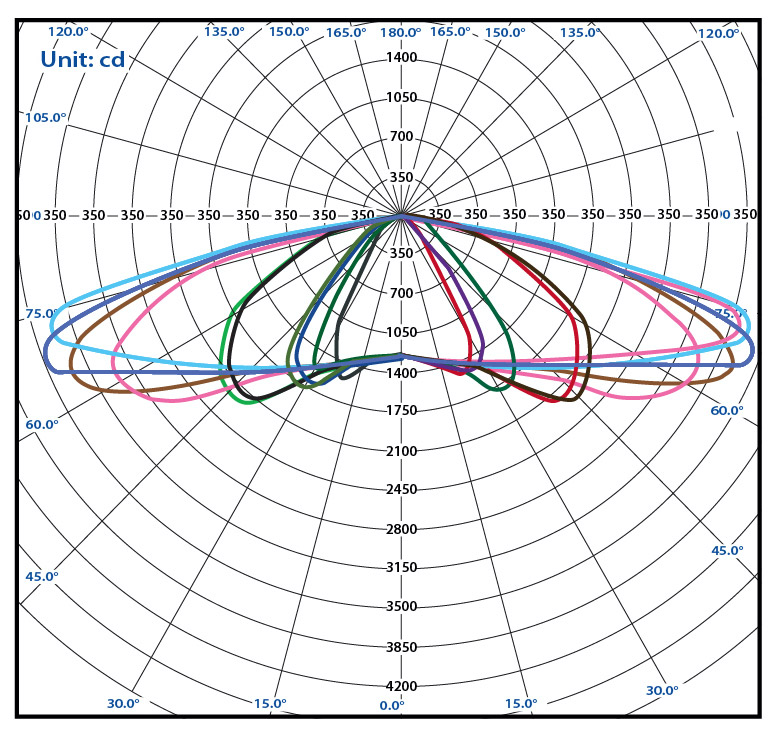

IES File
*Please note this file will only open using programs such as Dialux, AGI32, or Relux.
