SlipLoc Bollard

Rapid Stop Disabled Access

allows access for wheelchairs and prams

The Rapid Stop Barrier is a completely freestanding, modular system that stops intentional and accidental vehicle intrusion into crowded or restricted areas, whilst allowing pedestrian movement. The system is efficient to transport and deploy, and does not require anchoring.

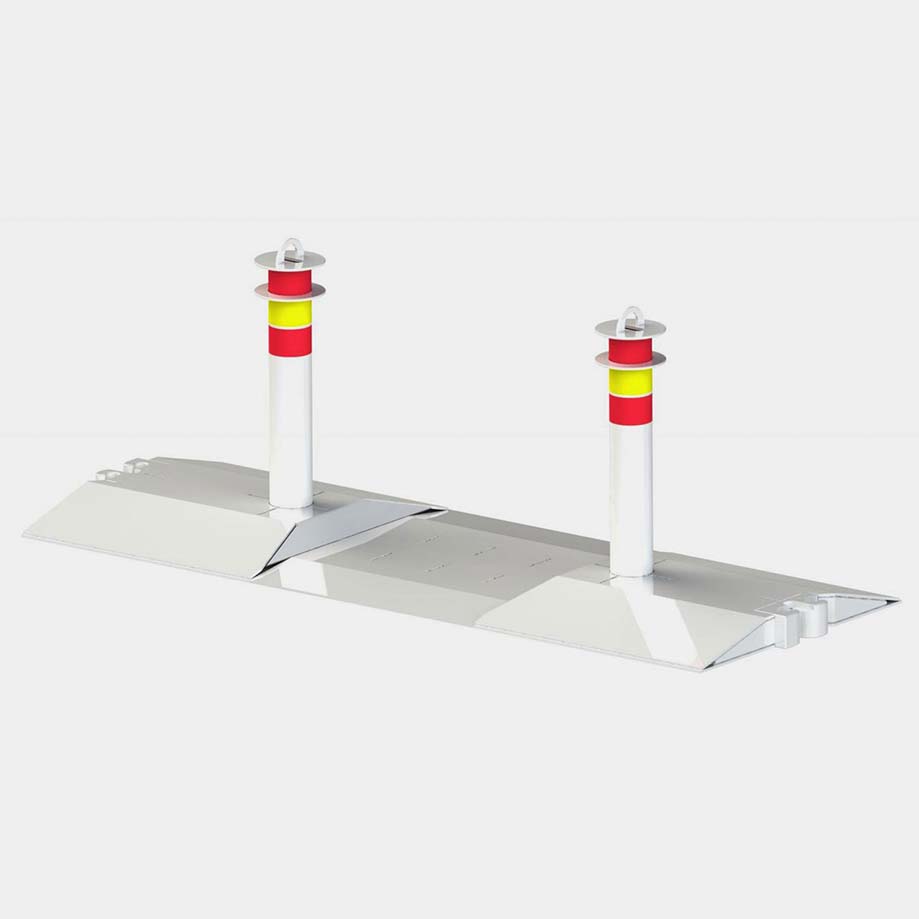

Rapid Stop Barrier Disabled Access module is unobtrusive, and the low profile ramp allows access for wheelchairs and prams. The inclusion of the Disabled Access module ensures an event is inclusive and accessible to everyone, whilst maintaining maximum security and prevention of unauthorised vehicle entry.

The Disabled Access modules should be strategically placed in a deployment of Standard barriers to allow for wheelchair access throughout the system.

  • Portable protection for pedestrian dense areas, events and worksites
  • Low profile ramp allows for easy access for wheelchairs and prams
  • Proven to safely stop vehicles impacting from any angle
  • Fully crash tested with a 2270kg vehicle at 60km/h (MASH compliant)
Buy Online
Need to order a large quantity? Enquire now

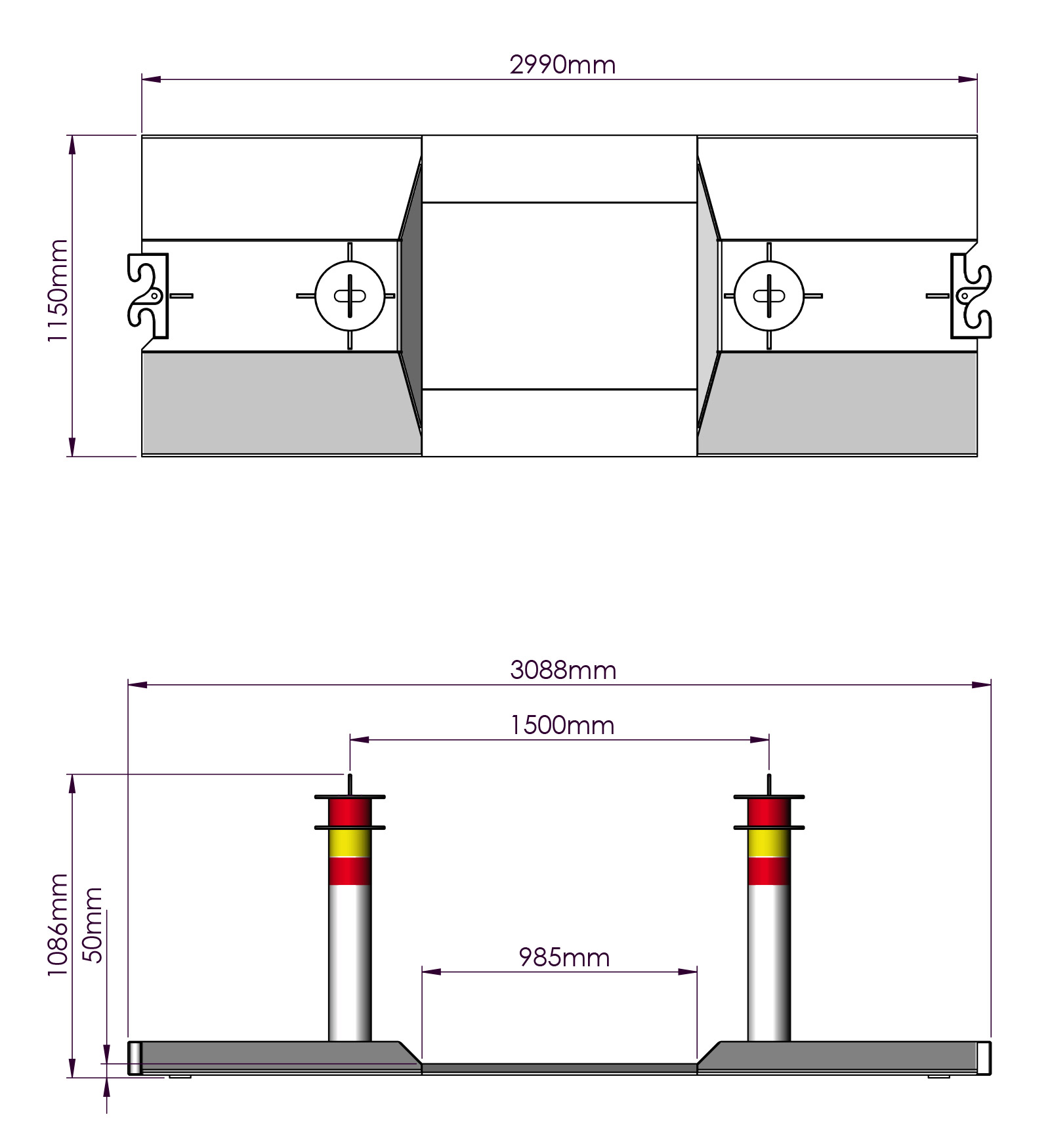

Specifications

Disabled Access Module
Installed length 3000mm
Unit length 3088mm
Unit width 1150mm
Unit height (bollard) 1086mm
Unit height (base) 130mm
Weight 1040kg
Footing Freestanding no footing requirements
Vehicles Stopped
Vehicle Stopped Hatchback
SUV
Vehicle Stopped Sedan
Pickup
Crash Tested ASTM F3016 2270kg/5000lb vehicle at 60kmh/30mph



Downloads



The Rapid Stop Barrier is a form of protection for pedestrians and assets. Its portable nature lends itself to event and workzone applications, high risk terrorist areas and can also be used to protect assets such as gas, electricity and fuel.

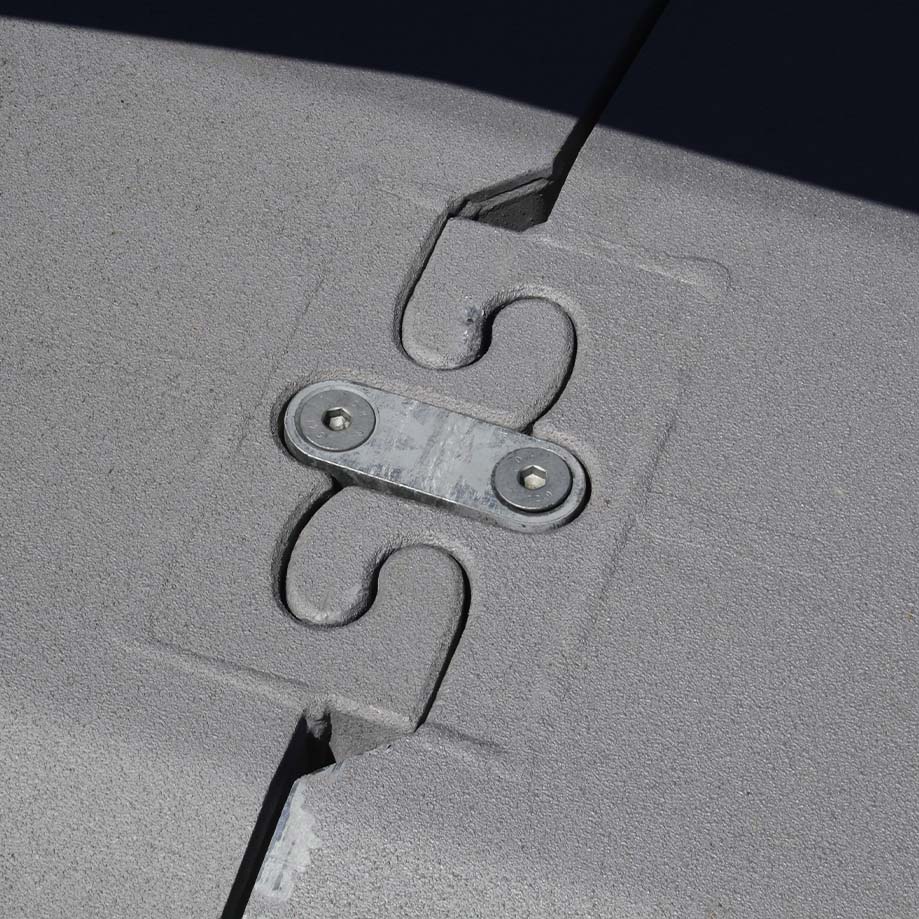

Installation of the Rapid Stop Barrier System is easy! Simply connect each unit on the ground, then bolt them together using the connector plate and bolts.
The Rapid Stop Barrier standard modules are 10 feet long. The Disabled Access module has the same 10 feet length. The Disabled Access modules should be strategically placed in a string of Standard units to allow for wheelchair access through the system.
The Rapid Stop Barrier is available in any paint colour. Standard colours are usually galvanised steel, black, white, heritage green, yellow and blue. If there is a specific colour you require, please discuss with your local sales representative who can assist you further in your enquiry. Please Contact us for details.
Yes. The Rapid Stop Barrier can stop a 2,270kg pickup travelling at 60km/h (MASH compliant)
The Rapid Stop Barrier design has been computer simulated and engineered to withstand the design impacts, then has been proven by full scale crash testing. Other cheaper non-crash tested bollards may not perform as promised.
Please see the deflection results for Rapid Stop Barrier on the crash test page of this website www.TBA
The bollards are hot dip galvanised, then 2 pack painted. A slip resistant paint is also applied to the top surface.

Case studies

Portable Bollard System at the Block Open for inspections

The Block - Open for inspections

The Block 2019 fans were queuing in the cold overnight to ensure they had the chance to check out the the Oslo terrace houses, which were open for inspection on Sunday

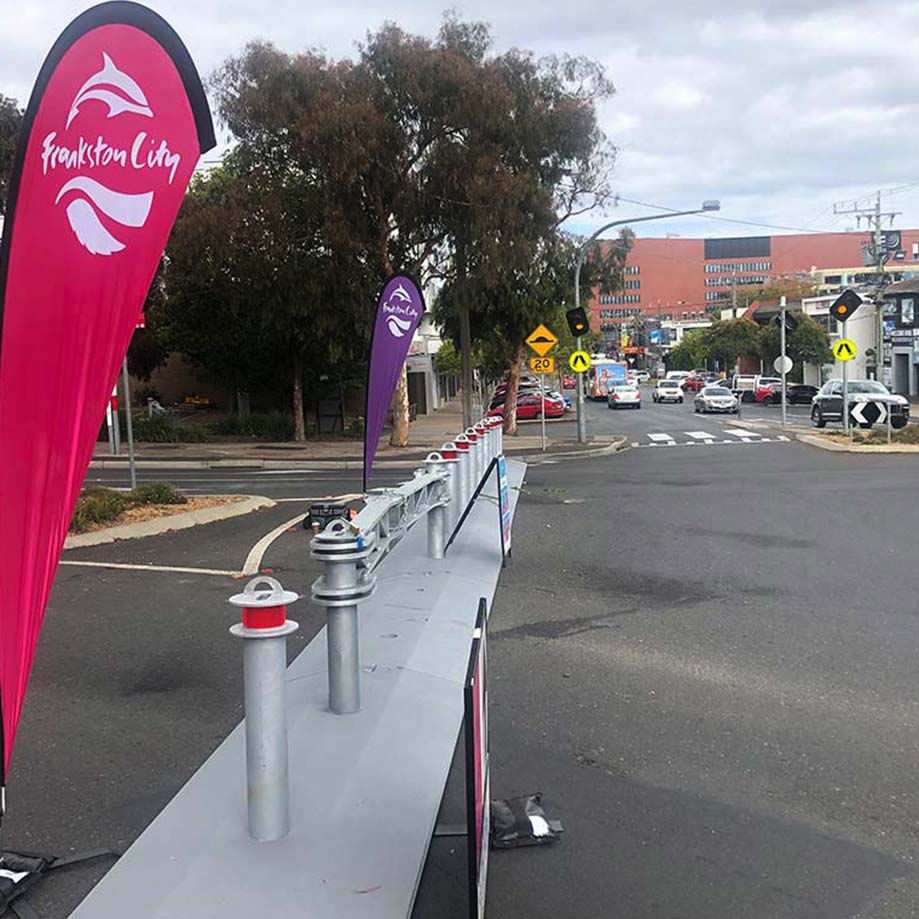

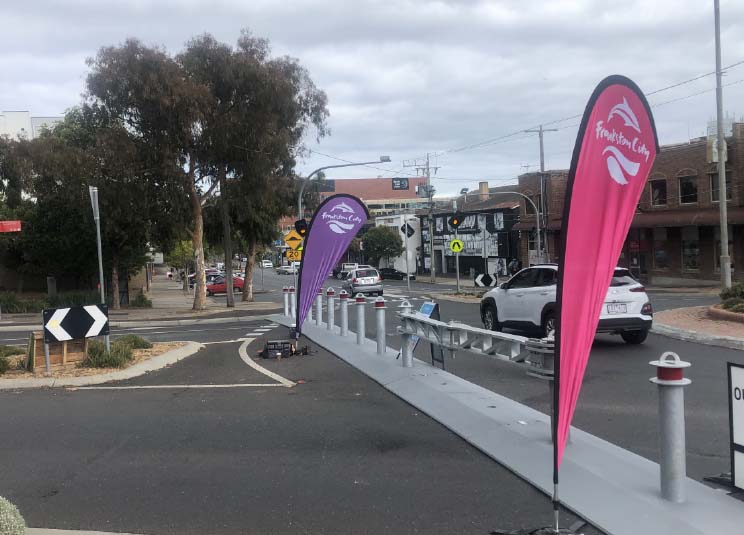

Saferoads Portable Bollard at Frankston Christmas Festival of Lights

Frankston Christmas Festival of Lights

One of Melbourne’s largest and most iconic street festivals, needed to ensure the protection the crowds enjoying the event.
