Zone VMS Classic

Zone VMS Classic

Communicate promotional or traffic-control messages

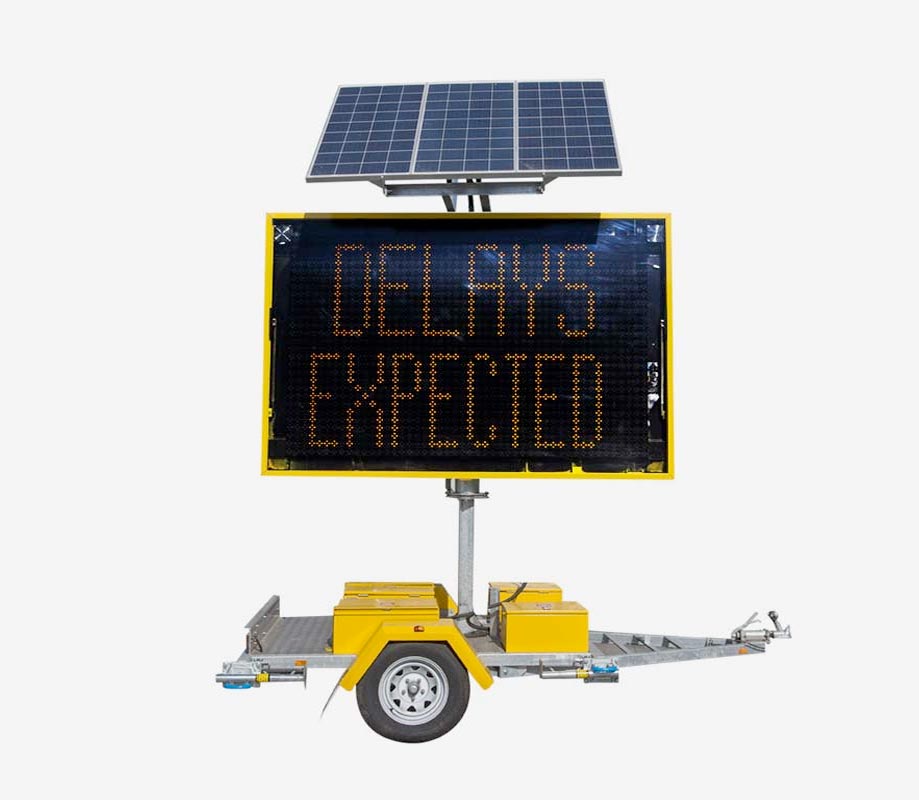

For our most powerful variable message sign yet, our Zone VMS Classic is a must. Slightly larger than the Essential model, with added solar panels, the 5 colour Zone Classic VMS board is the ideal way to advertise your event or business, or encourage safe driving around roadworks and changed conditions Contact our team for more information on these innovative, Australian designed and built trailers.

Available in either amber or five colour fonts, the solar powered Zone Classic variable message board is designed to be easily controlled via smartphone or tablet, ensuring your display reads correctly wherever it’s located.Zone 2 management platform enables you to schedule future messages so you can set and forget, with 24/7 access to our Australian based support team available to all users.

  • C-Size VMS
  • Made to the highest quality standards
  • Amber or five colour (blue, green, amber, red and white) options
  • Heavy duty
  • Fully galvanised and powder coated
  • Australian designed and built
  • Remote access
  • Easy to use internet platform
  • Zone Cloud Software is 100% Australian developed, owned and hosted
  • Accessible from any browser/smart phone / tablet device
  • Option to schedule future messages
  • 24/7 Australian support
  • On board message manager
  • 4 x 12V 200AH batteries with on board battery charger
  • 3 x 200W solar panels that tilt and rotate
  • Fully sealed tool boxes with gas struts
  • Checker plate floor
  • Spare wheel
Buy Online
Need to order a large quantity? Enquire now

Videos

Zone Classic Variable Message Signs
Electronic Signs
Zone Classic Variable Message Board
Deploying Saferoads Zone VMS

Specifications

Product Code Amber F1504001C 5 Colour F1504001P
Weight (TARE) 1180kg 1180kg
ATM 1500kg 1500kg
Length Overall 3650mm 3650mm
Width Overall 2080mm 2080mm
Height Travelling 2930mm 2930mm
Deployed Footprint Length 3650mm 3650mm
Deployed Footprint Width 2725mm 2725mm
Max Deployed Height 5300mm 5300mm
Number of 12V 200AH Batteries 4 4
No. of 200W Solar Panels 3 3


Product Features & Inclusions

LED Display
48 x 28 Full Matrix LED Pixels
400mm Character Height
Galvanised/Powder Coated Trailer With Extendable Stabilising Outriggers
On Board Battery Charger
Automatic Brightness/Dimming
No Software To Install
Solar Panel Tilts And Rotates
360 Degree Rotatable Display
Checker Plate Floor
On-Board Message Manager
Fully Sealed Tool Boxes With Gas Struts
Program Using Any tablet/smart phone
Remotely Monitor Battery Levels, GPS Location, Power Usage And Settings
Scheduling Software Allows Pre Programming
Spare Wheel
Radar System For Speed Monitoring - Optional

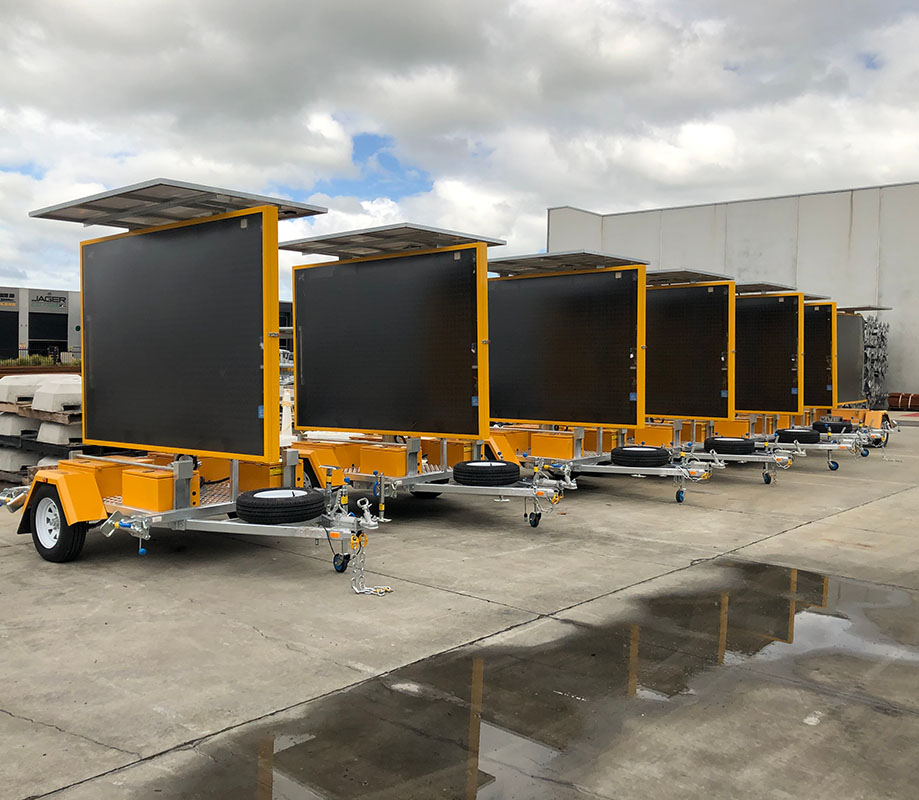

Please note: A Hybrid version of this VMS is available. The Hybrid VMS does not include the tilt and rotate feature on the solar panels
