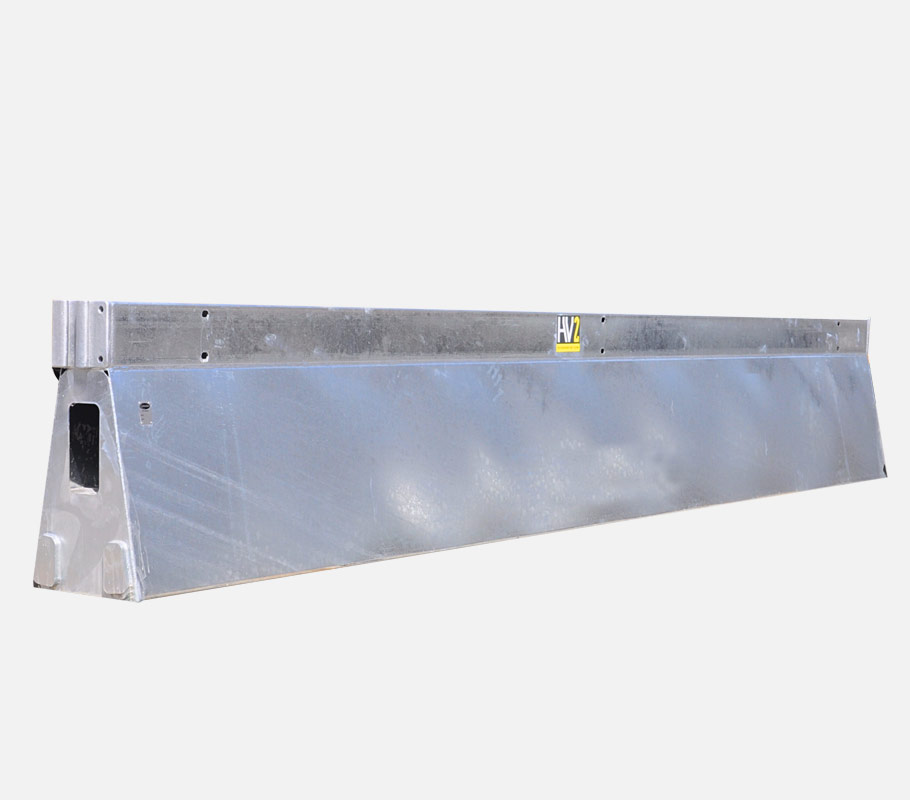

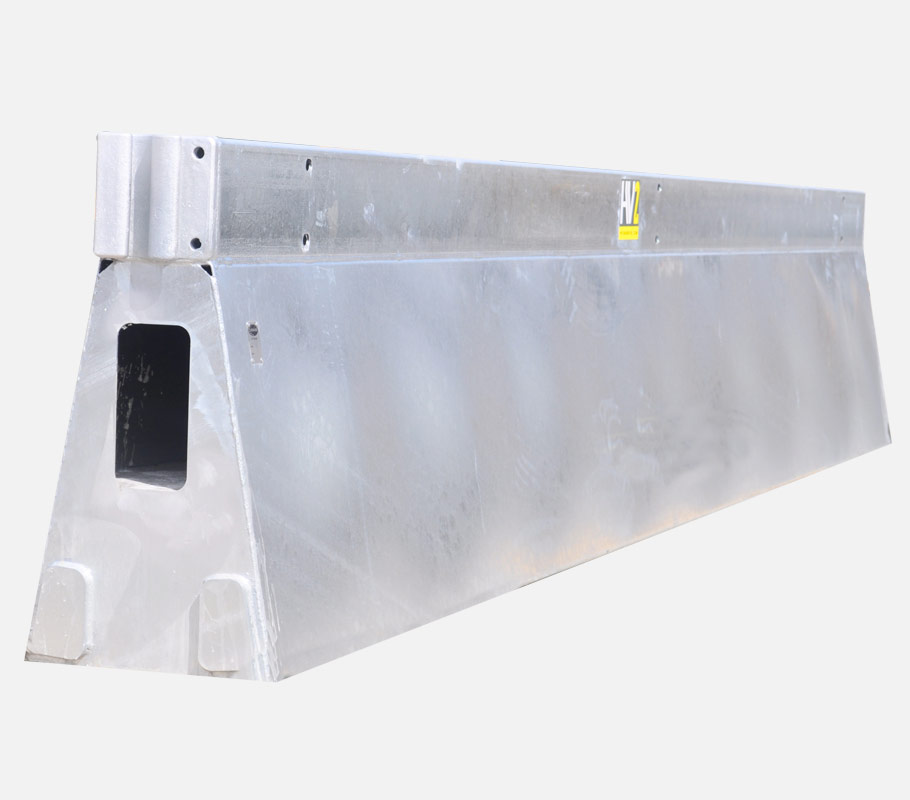

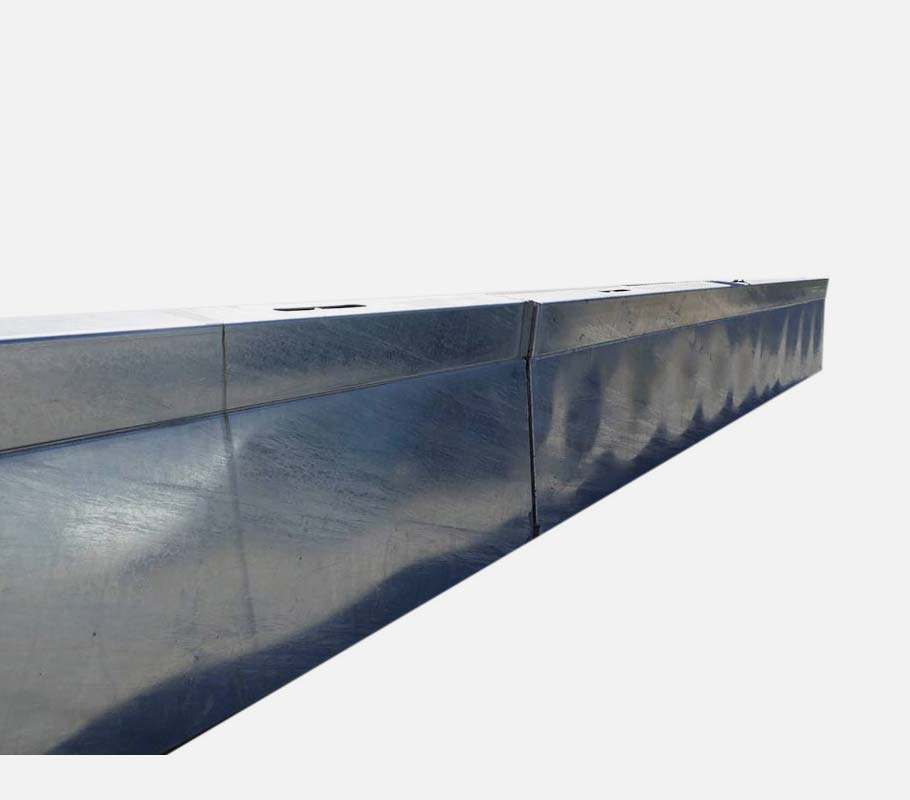

HV2 Barrier

With patented hybrid technology and unique connectors, the HV2 Safety Barrier offers high containment and low deflection upon impact.
With no time-consuming anchoring required, this barrier has been successfully tested to MASH TL-4.

The HV2 BARRIER is the first and only unanchored steel barrier to successfully be crash tested to MASH TL-4.

The patented hybrid technology and unique connectors allow this free standing, temporary longitudinal barrier system to offer high containment and low deflection, while remaining economical to transport and deploy.

  • Freestanding barrier
  • High containment
  • Safe redirection
  • Superior deployment and retrieval
  • No anchoring required
  • Maintenance free
  • Multiple end treatments can be used
  • Sight / debris screen options bolt on
  • Durable
  • Economical to transport
  • Lightweight

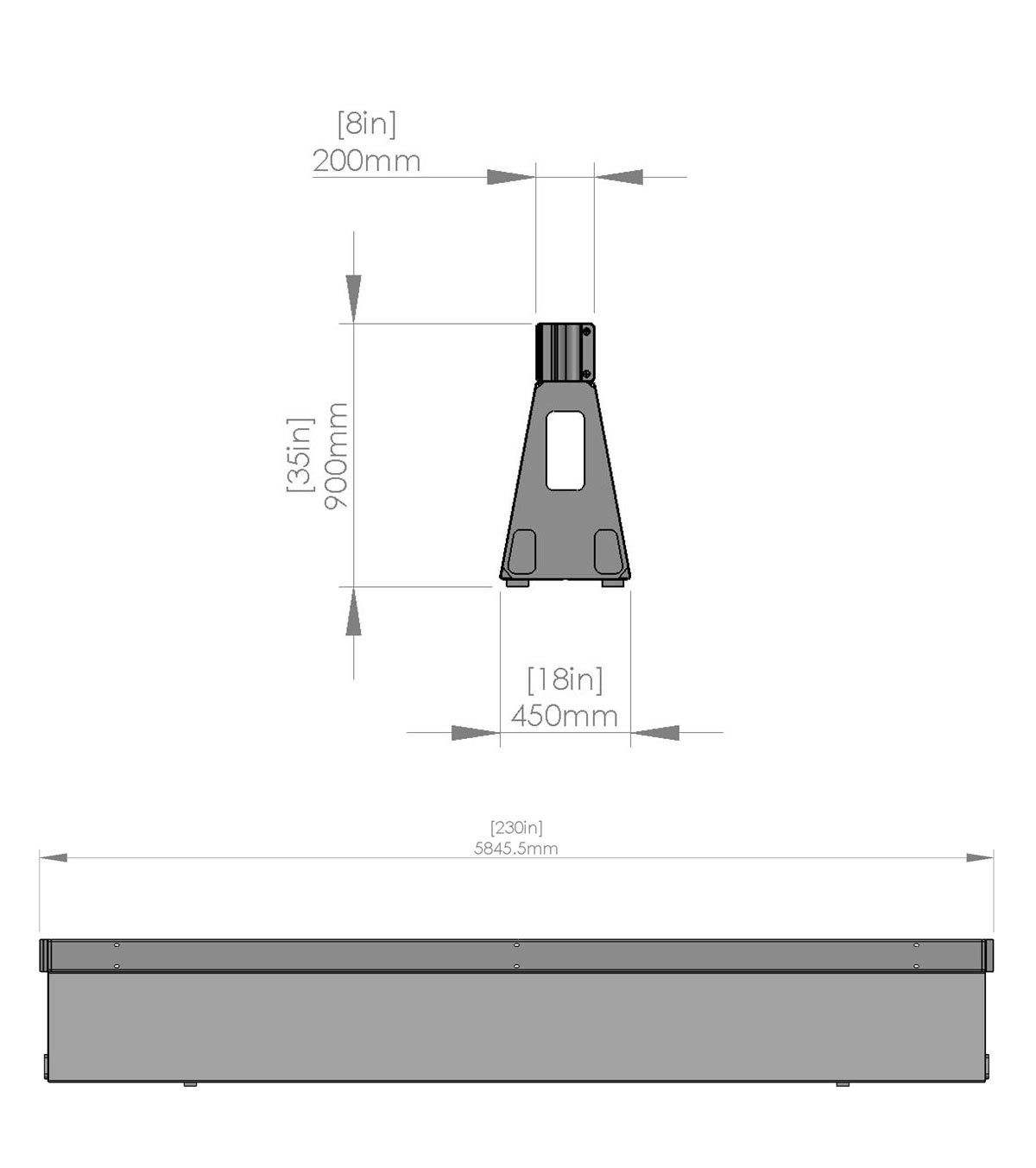

Specifications
Product code F1304028
Effective Length 5.8m
Height 900mm
Width 450mm
Weight 2088kg
Weight Per Metre 357kg
Succesfully Tested To MASH TL-4
ASBAP Approval To Approval Pending
TL-3 Deflection 1.47M
Amount Transportable Per Semi Truck 10
Multiple End Treatments Can Be Used Yes
Sight/Debris Screen Options Bolt On Yes
Lightweight Yes
High Containment Yes
Safe Redirection Yes
Fast Deployment/Retrieval Yes
No Anchoring Required Yes
Economical To Transport Yes
Maintenance Free Yes
Durable Yes
Resources
Video

FAQ's

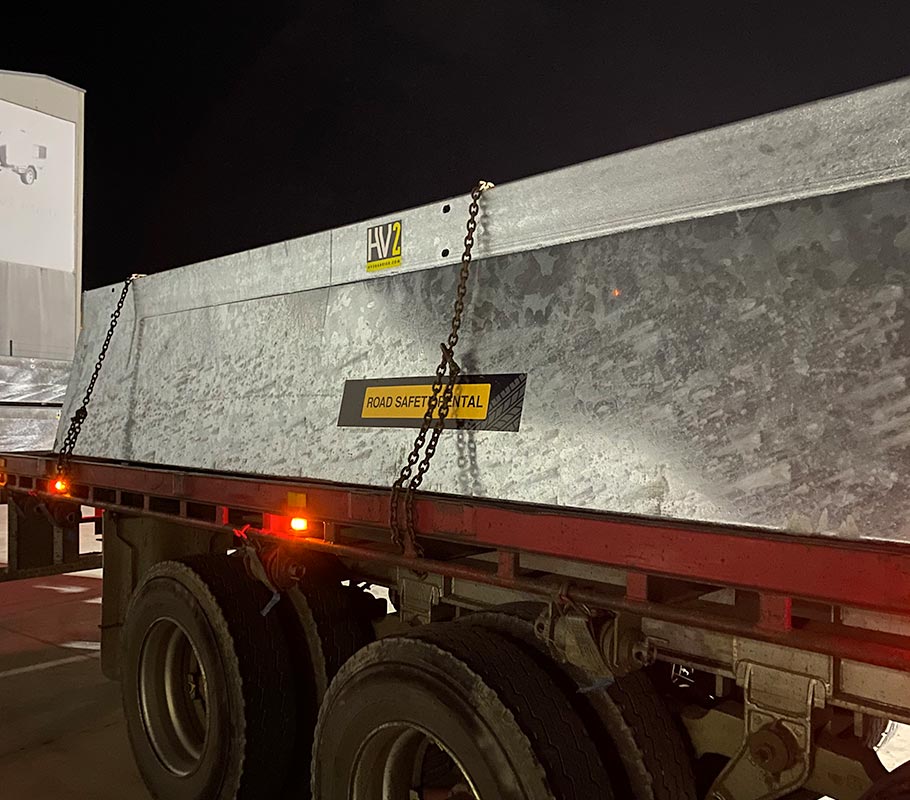

Q. How many barriers can you safely transport on a standard semi-trailer?

A. Each Barrier weighs 2,088kg, 4,600lbs. You can transport between 9 and 11 barriers depending on the trailer weight and district load limits.

Q. What End treatments can I use?

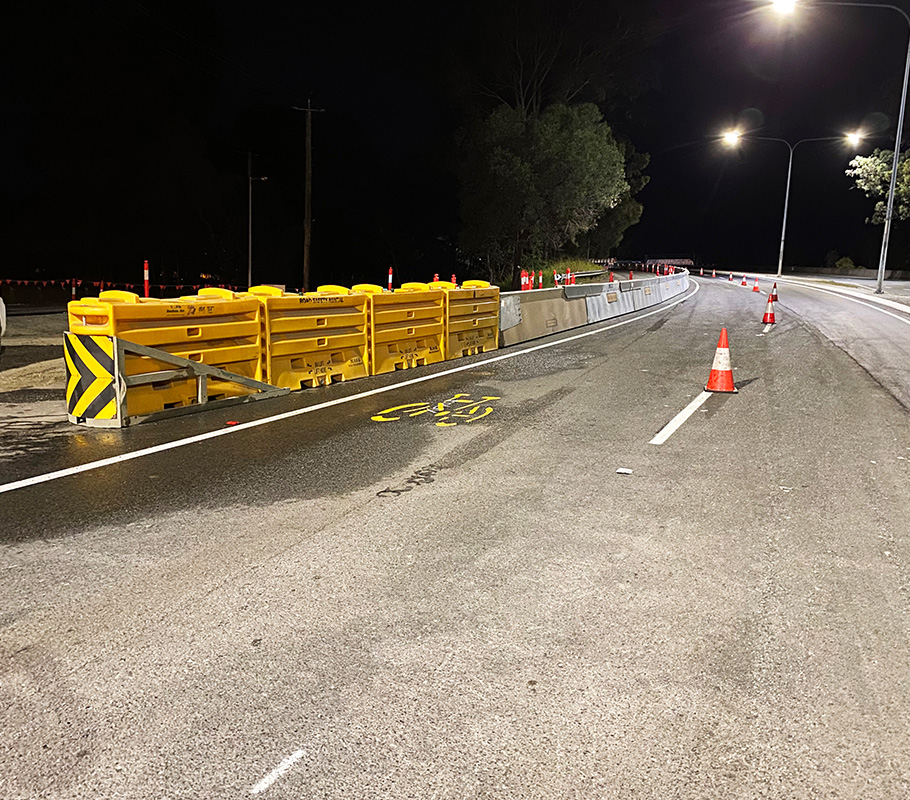

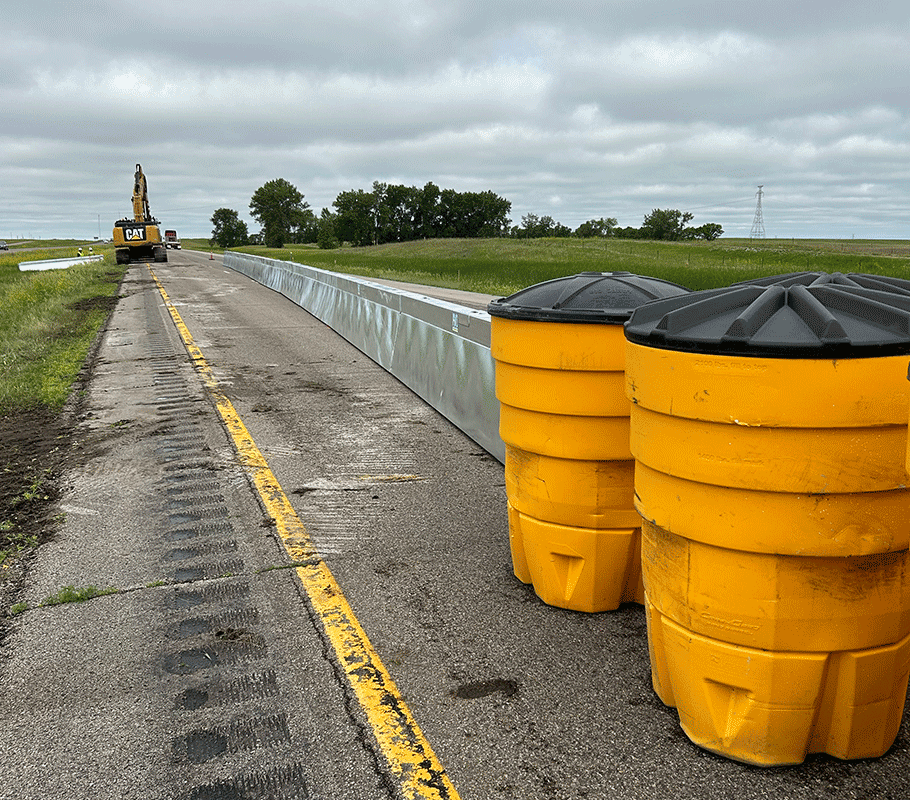

A. Currently you can only flair the blunt end outside the clear zone. End terminal transition testing has been scheduled for the SLED water filled terminal for a completely freestanding system and for the Quadguard for an anchored end terminal.

Q. What is the weight and length of each barrier?

A. Each Barrier weighs 2,088kg, 4,600lbs and has an overall length of 5.85m, 19.2 feet. The effective length per barrier is 5.8m, 19 feet.

Q. Do you have any guidelines on the best way to lift and handle the barriers on site?

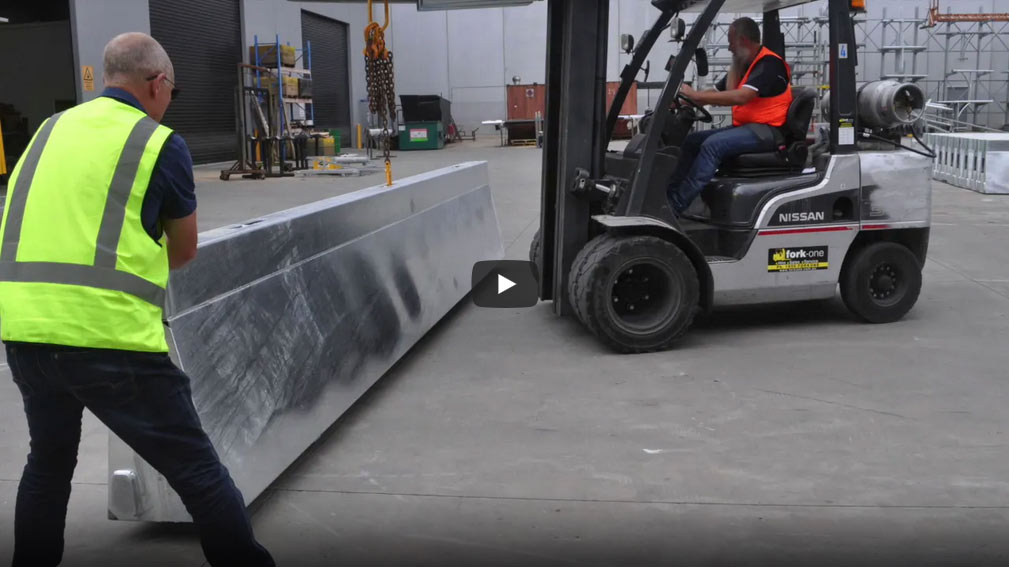

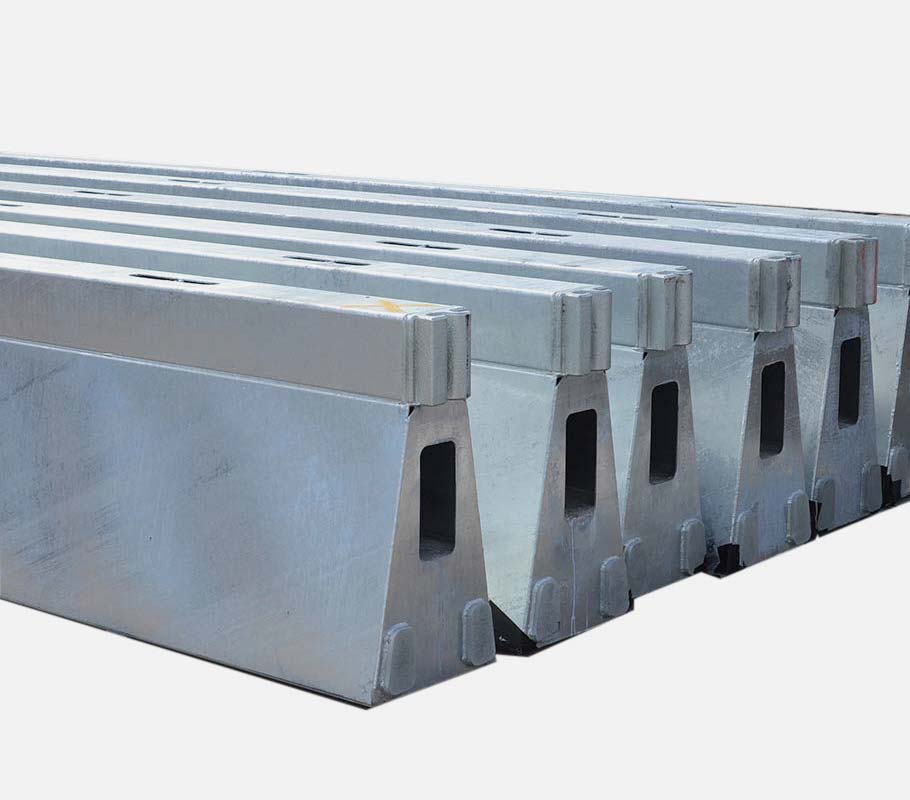

A. The most efficient way to deploy or retrieve the barriers from site is to lift with a single chain from the centre lifting point. They can also be lifted with 2 chains connected to the outer lifting points. The barriers can be lifted by a forklift for yard storage, appropriate bearers will be required when stacking.

Q. What testing & approvals do you have for the HV-2 Barrier?

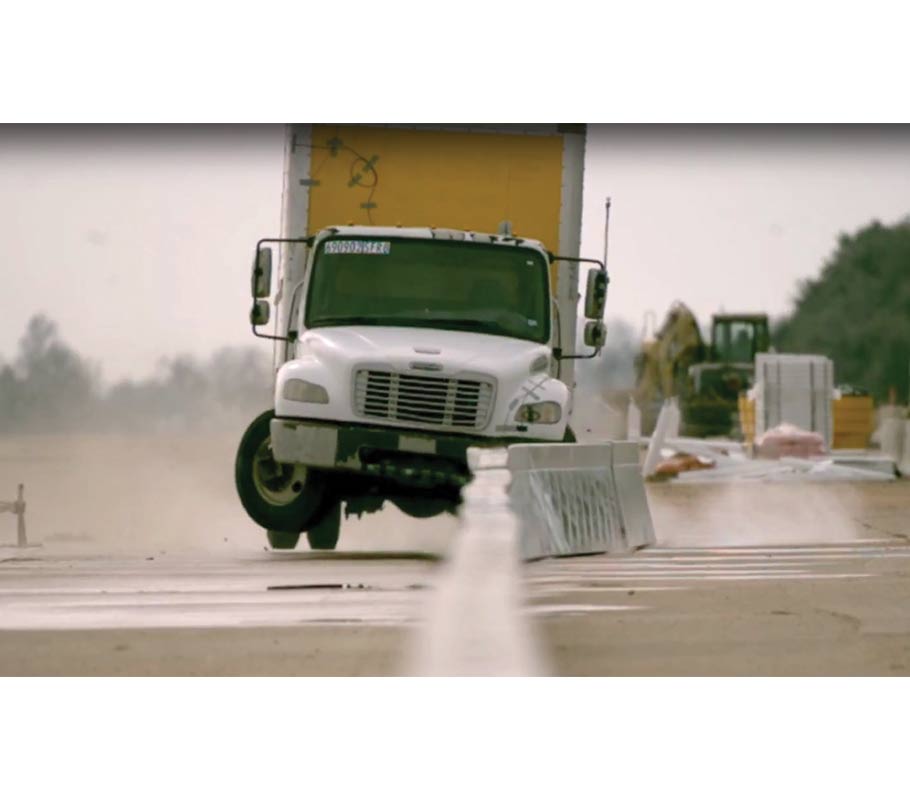

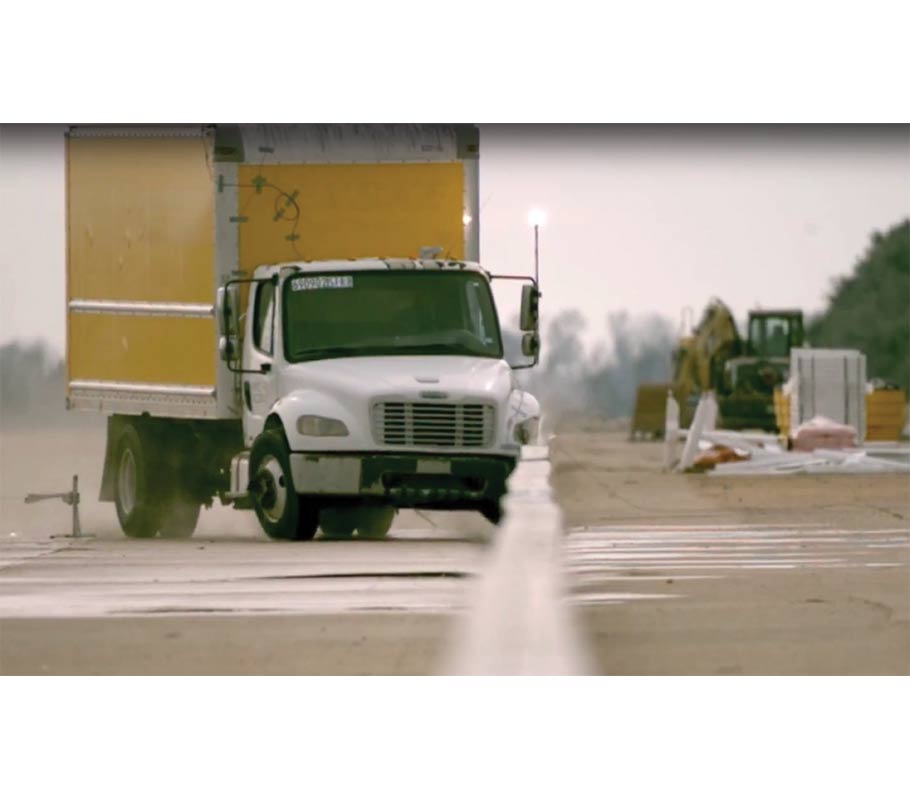

A. The HV2 Barrier has passed MASH 2016 tests 4-10, 4-11 and 4-12. Test Reports are due to be completed soon for submission to the FHWA for LON. approval. The highest capacity test was the 4-12 which is TL-4, 10 Tonne Truck at 90km/h at 15 degrees.

Q. What sort of radius can I achieve on tight bends?

A. The HV2 barrier can be deployed on a Horizontal radius as tight as 78m.

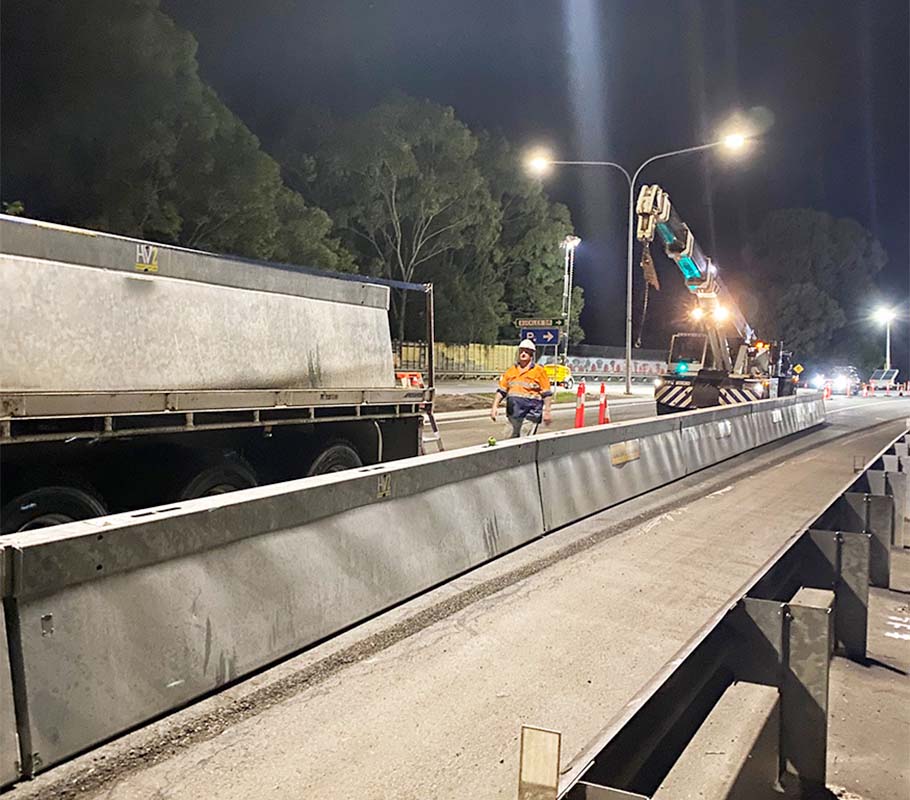

Q. How many metres can you deploy in a day?

A. With a four-man crew and a tight delivery schedule, we would anticipate you will easily deploy 1000m of HV-2 in a single shift.

Q. What are the safe working distances at various speeds for this barrier?

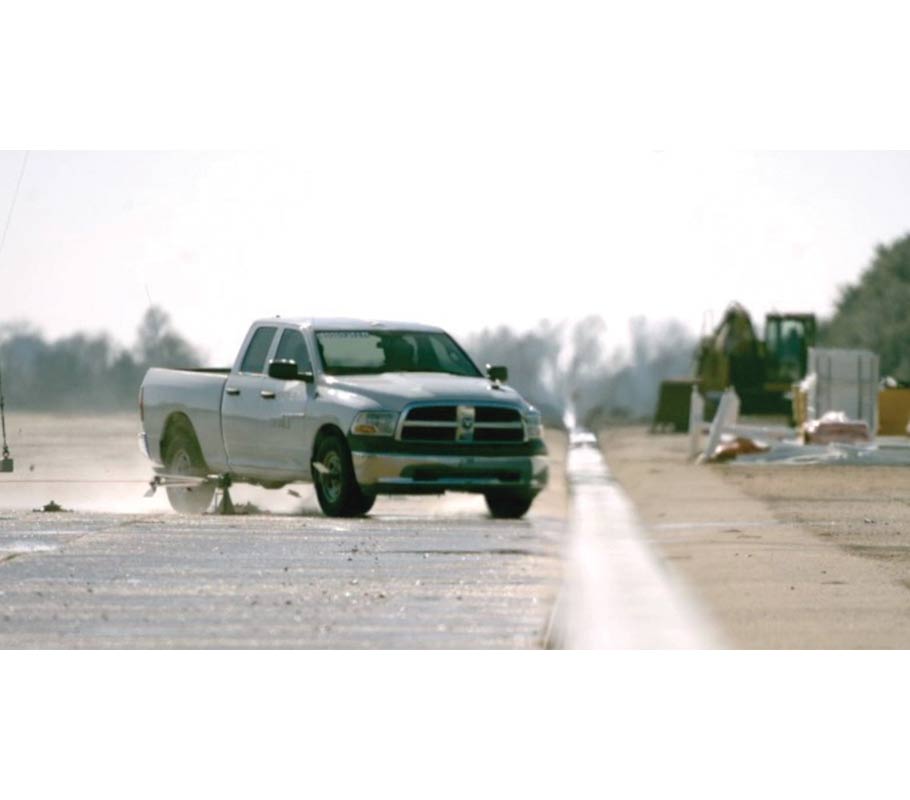

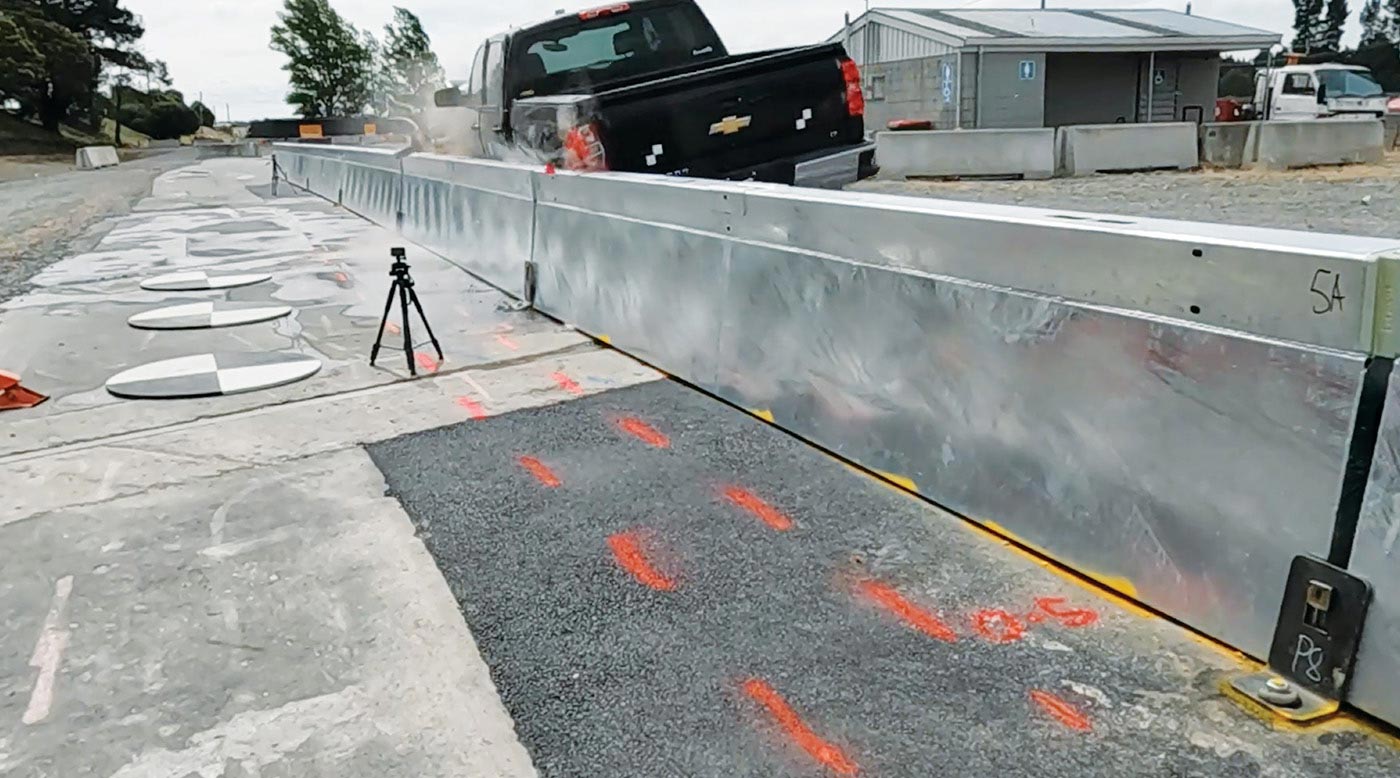

A. The dynamic Deflection for the 2,270kg Pickup TL-3 test at 100km/h was 1.5m, for the 10Tonne Truck at 90km/h the deflection was 2.2m

Q. What are the recommendations for lifting and transporting?

A. The barriers can be lifted with a single chain from the centre lifting point, or be lifted with 2 chains connected to the outer lifting points. The barriers can be lifted by a forklift for yard storage, appropriate bearers will be required when stacking or transporting.
