SlipLoc Bollard

Rapid Stop Emergency Access

Overview Videos Gallery Specifications downloads faq’s case studies get a quote

enabling timely access of emergency vehicles

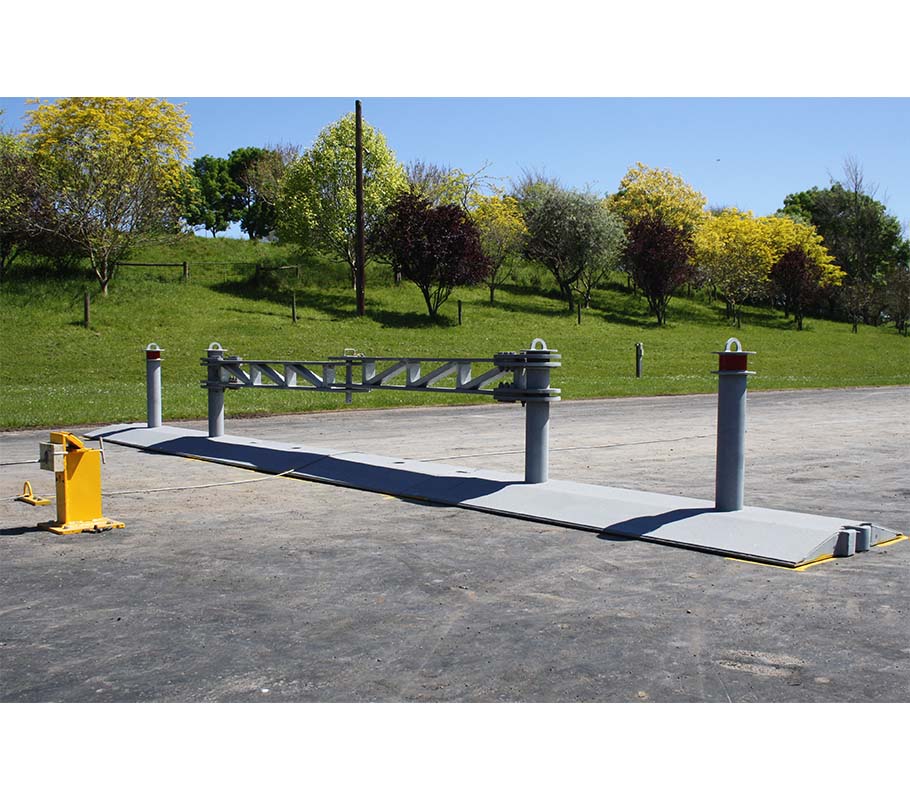

The Rapid Stop Barrier Emergency Access Gate allows for fast entry of emergency vehicles. With pedestrian safety front of mind, the system will not slow the entry or exit of large crowds, whilst enabling the timely access of emergency vehicles as required.

The Rapid Stop Emergency Access Gate can be placed between a minimum of two standard barriers, for a continuous barrier that has a 4.2m gate opening, simplifying emergency services ingress and egress.

  • Portable protection for pedestrian dense areas, events and worksites
  • Allows for easy ingress and egress of emergency vehicles
  • Proven to safely stop vehicles impacting from any angle
  • Fully crash tested with a 2270kg vehicle at 60km/h (MASH compliant)
Get a Quote
Buy Online
Need to order a large quantity? Enquire now

Videos

Crash Tested
Rapid Stop Barrier Crash Test Video

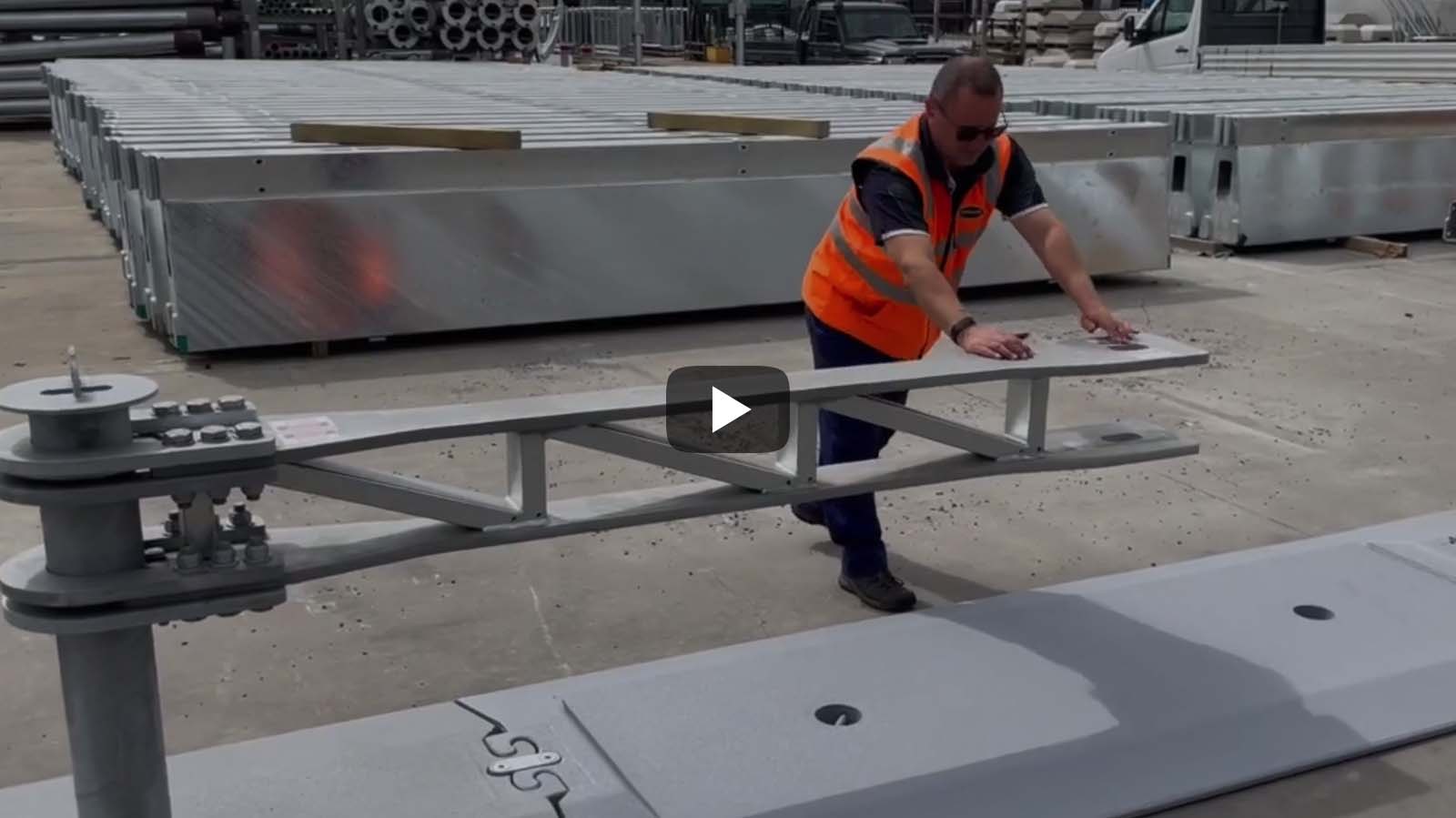

Emergency Exit Installation
Rapid Stop Emergency Access Installation

Specifications

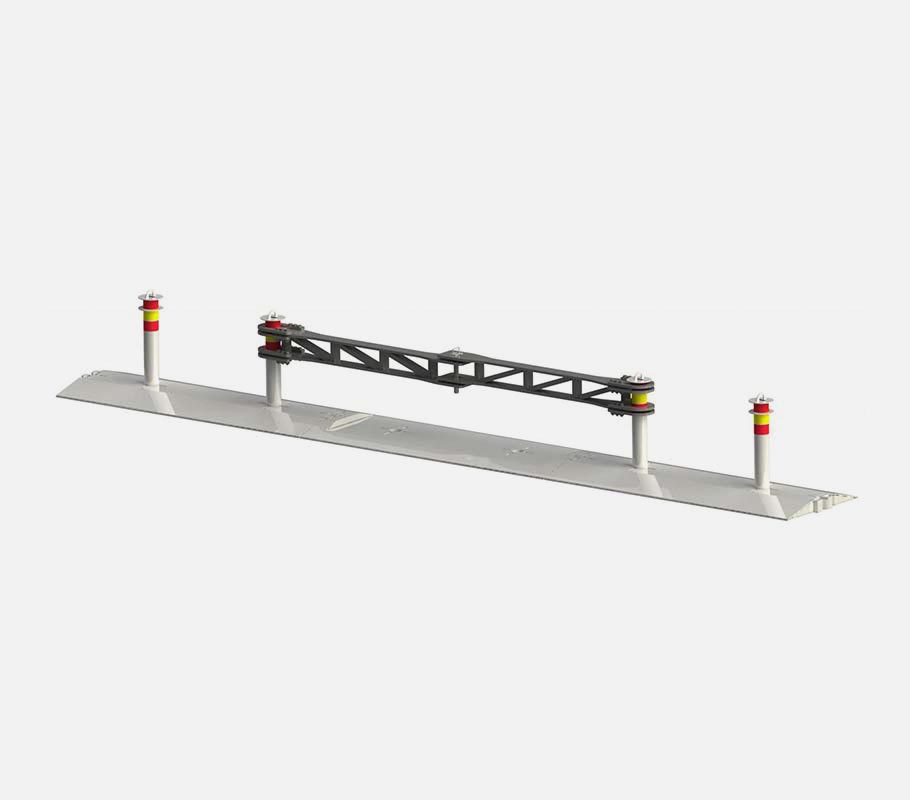

Vehicle Access Module
Installed length 3000mm
Unit length 3088mm
Unit width 1150mm
Unit height (base) 130mm
Weight 930kg

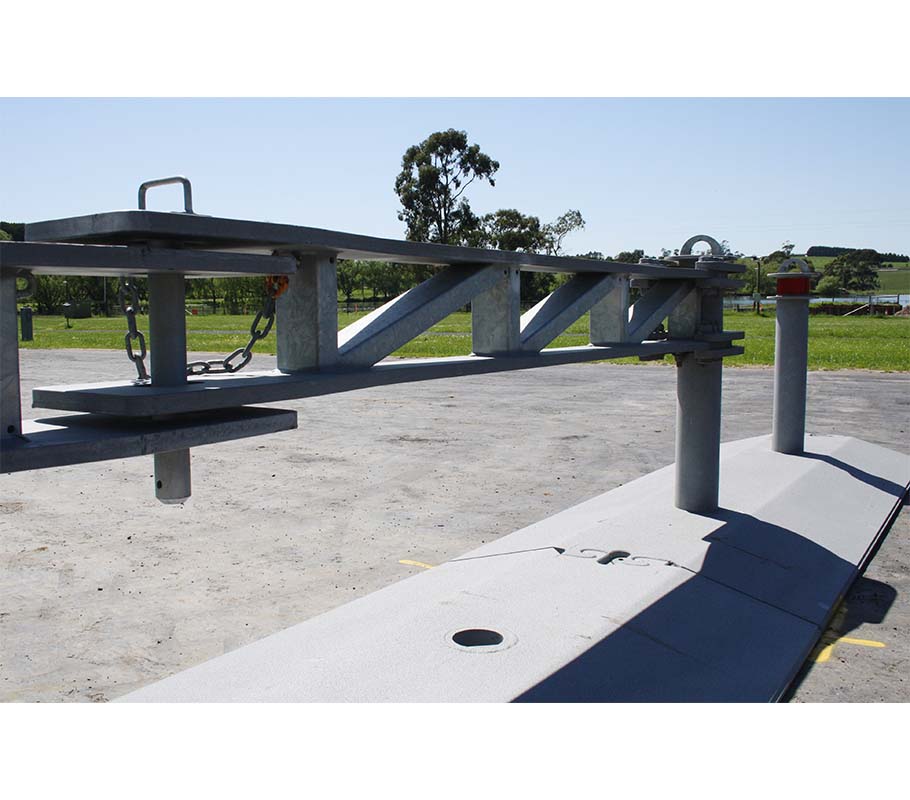

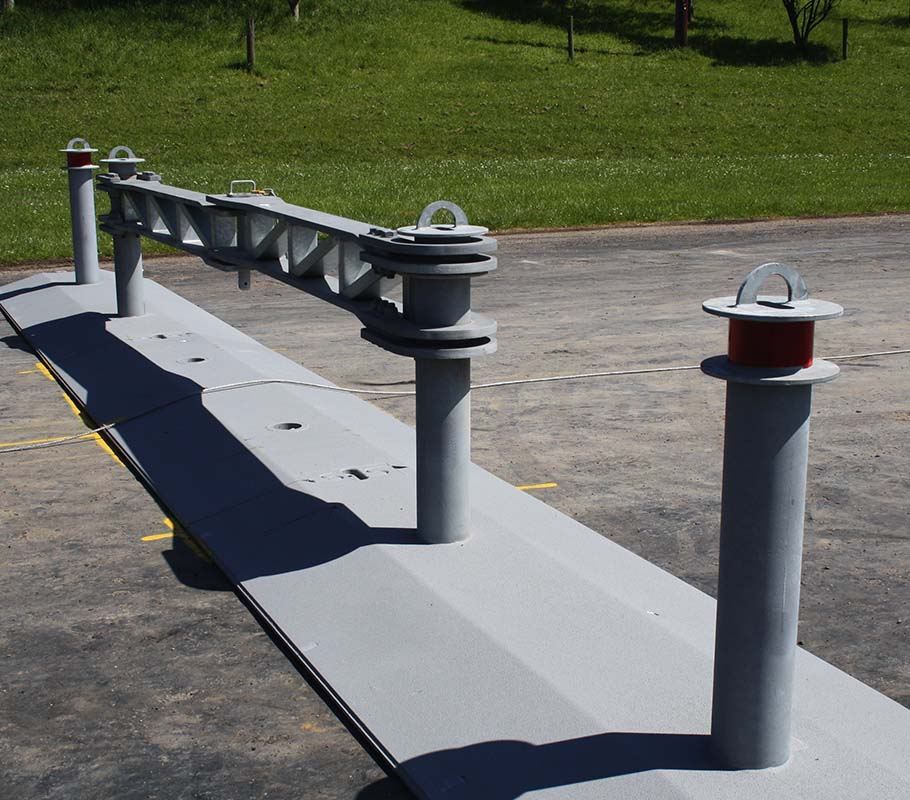

Gate Assembly
Installed length 9000mm
Unit width 1150mm
Weight (assembly) 3900kg

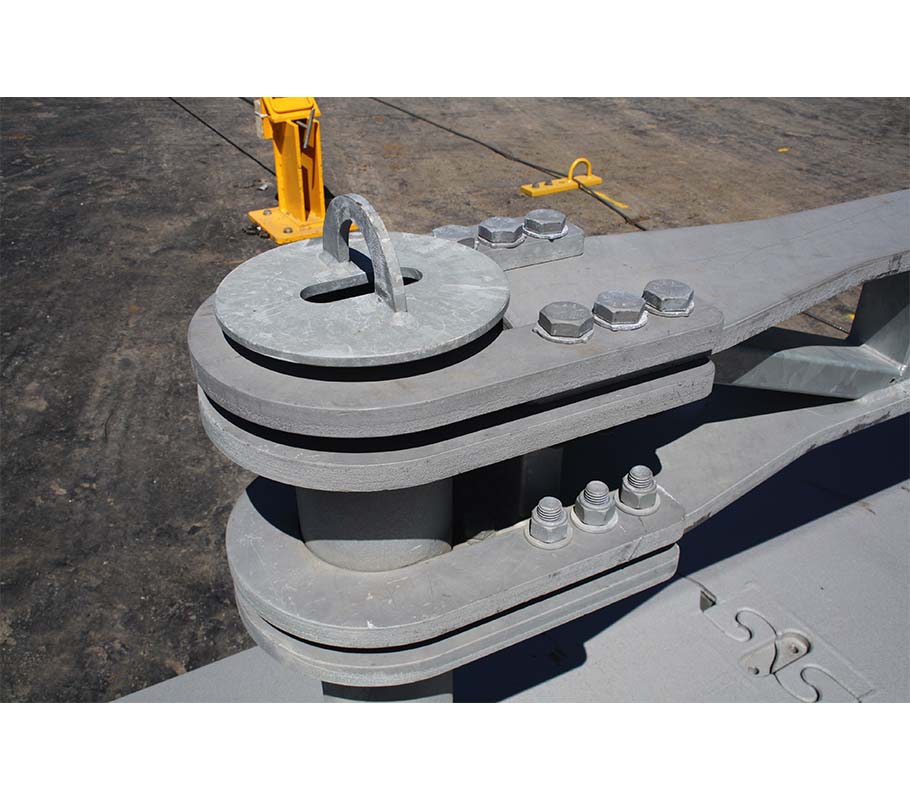

Gate arm (each) 230kg
Gate retaining pin 7kg
Footing Freestanding no footing requirements
Vehicles Stopped
Vehicle Stopped Hatchback
SUV
Vehicle Stopped Sedan
Pickup
Crash Tested ASTM F3016 2270kg/5000lb vehicle at 60kmh/30mph

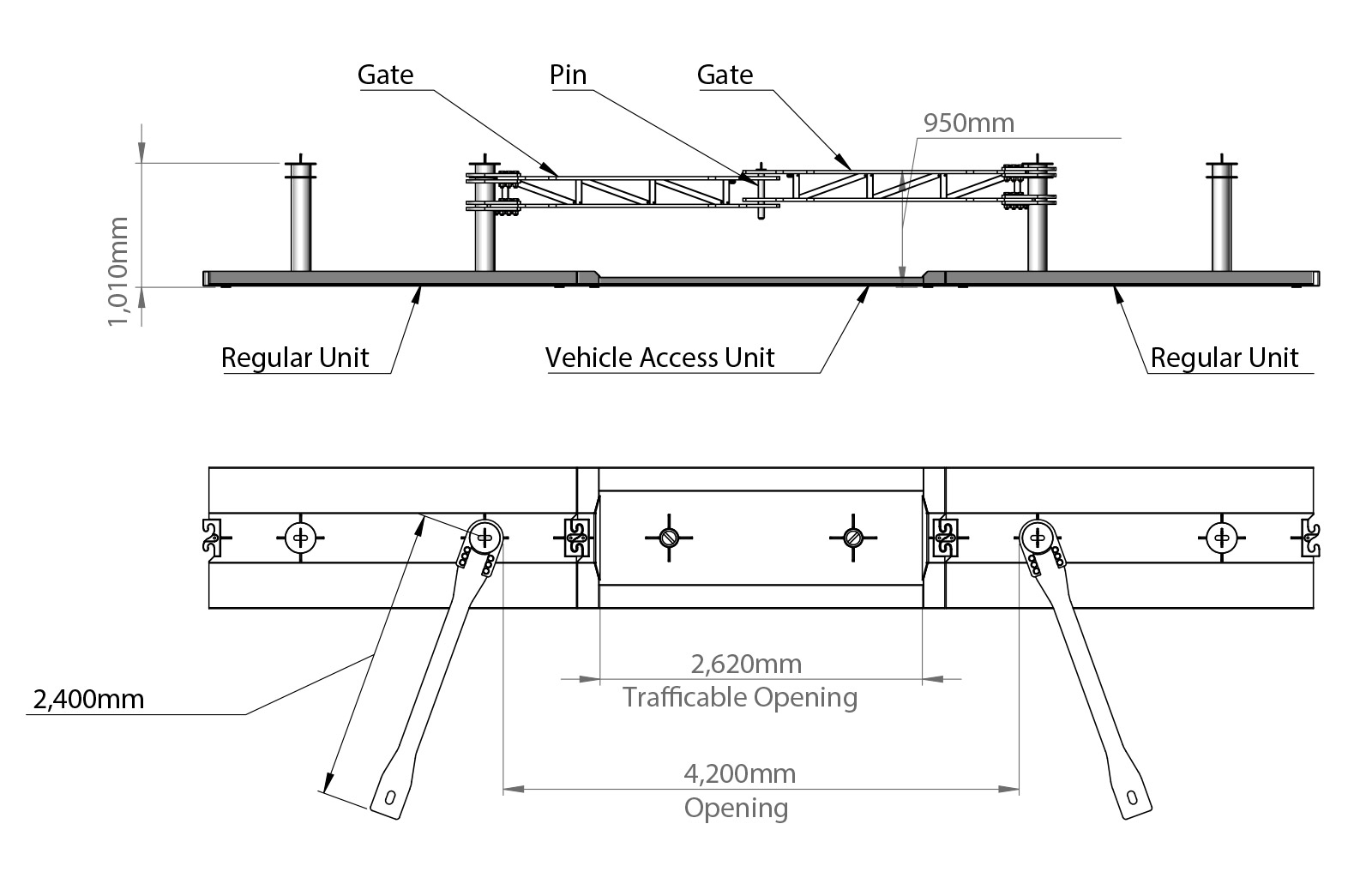

view technical drawing
SlipLoc Bollard



Downloads

SOP - Installation Rapid Stop Portable Bollards SOP - Rapid Stop Portable Bollards – End Plate SOP - Assembling Rapid Stop Portable Gate SOP - Deploying Rapid Stop Portable Gate



FAQ'S

(+)Expand All
The Rapid Stop Barrier is a form of protection for pedestrians and assets. Its portable nature lends itself to event and workzone applications, high risk terrorist areas and can also be used to protect assets such as gas, electricity and fuel.

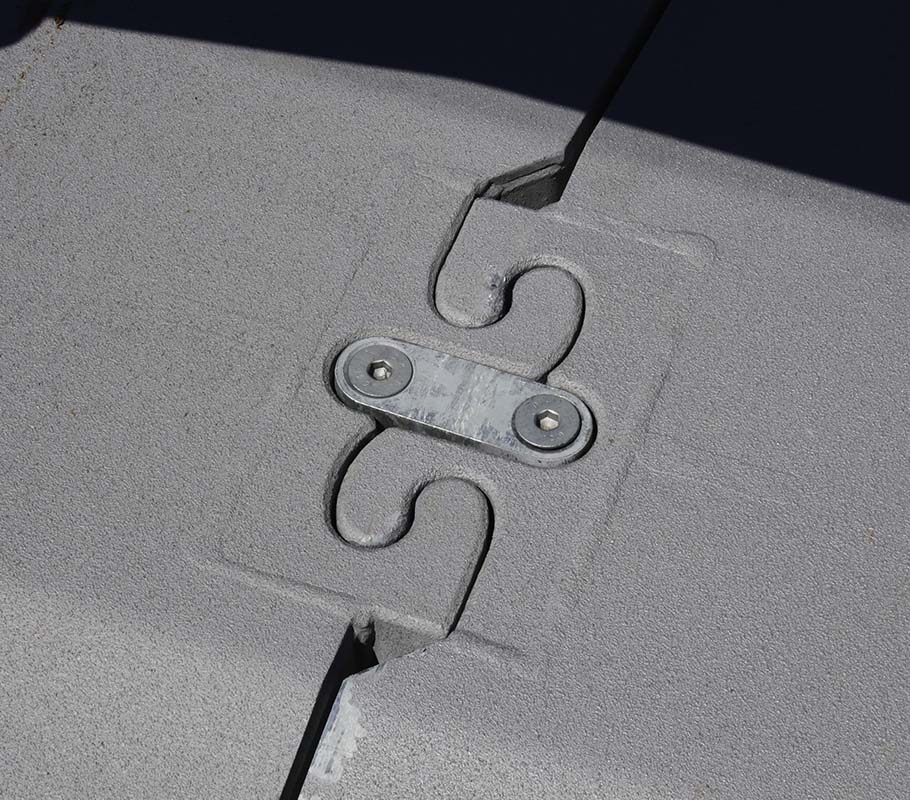

Installation of the Rapid Stop Barrier System is easy! Simply connect each unit on the ground, then bolt them together using the connector plate and bolts.
The Rapid Stop Barrier standard modules are 10 feet long. The Disabled Access module has the same 10 feet length. The Disabled Access modules should be strategically placed in a string of Standard units to allow for wheelchair access through the system.
The Rapid Stop Barrier is a form of protection for pedestrians and assets. Its portable nature lends itself to event and workzone applications, high risk terrorist areas and can also be used to protect assets such as gas, electricity and fuel.
Installation of the Rapid Stop Barrier System is easy! Simply connect each unit on the ground, then bolt them together using the connector plate and bolts.
The Rapid Stop Barrier standard modules are 10 feet long. The Emergency Access Gate module has the same 10 feet length. The Emergency Access Gate module is placed between 2 standard modules allowing for a continuous barrier that can be opened to allow for vehicle ingress and egress.
The Rapid Stop Barrier is available in any paint colour. Standard colours are usually galvanised steel, black, white, heritage green, yellow and blue. If there is a specific colour you require, please discuss with your local sales representative who can assist you further in your enquiry. Please Contact us for details.
Yes. The Rapid Stop Barrier can stop a 2,270kg pickup travelling at 60km/h (MASH compliant)
Yes. The Rapid Stop Barrier can stop a 2,270kg pickup travelling at 60km/h (MASH compliant)
The Rapid Stop Barrier design has been computer simulated and engineered to withstand the design impacts, then has been proven by full scale crash testing. Other cheaper non-crash tested bollards may not perform as promised.
Please see the deflection results for Rapid Stop Barrier on the crash test page of this website www.TBA
The bollards are hot dip galvanised, then 2 pack painted. A slip resistant paint is also applied to the top surface.

Case studies

Portable Bollard System at the Block Open for inspections

The Block - Open for inspections

The Block 2019 fans were queuing in the cold overnight to ensure they had the chance to check out the the Oslo terrace houses, which were open for inspection on Sunday
Read more

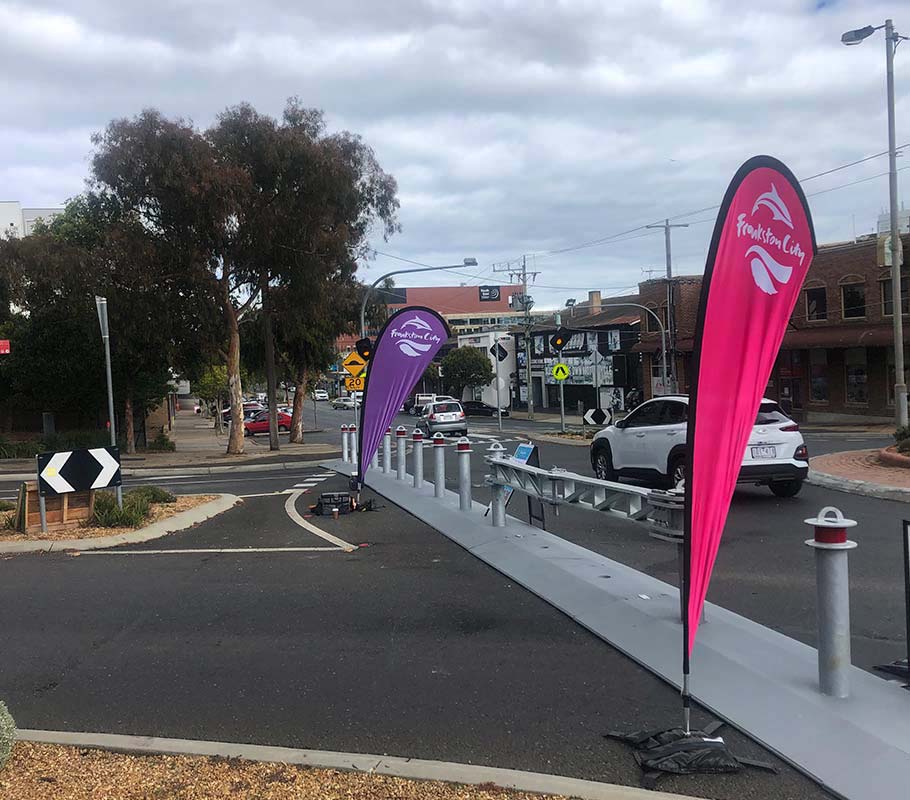

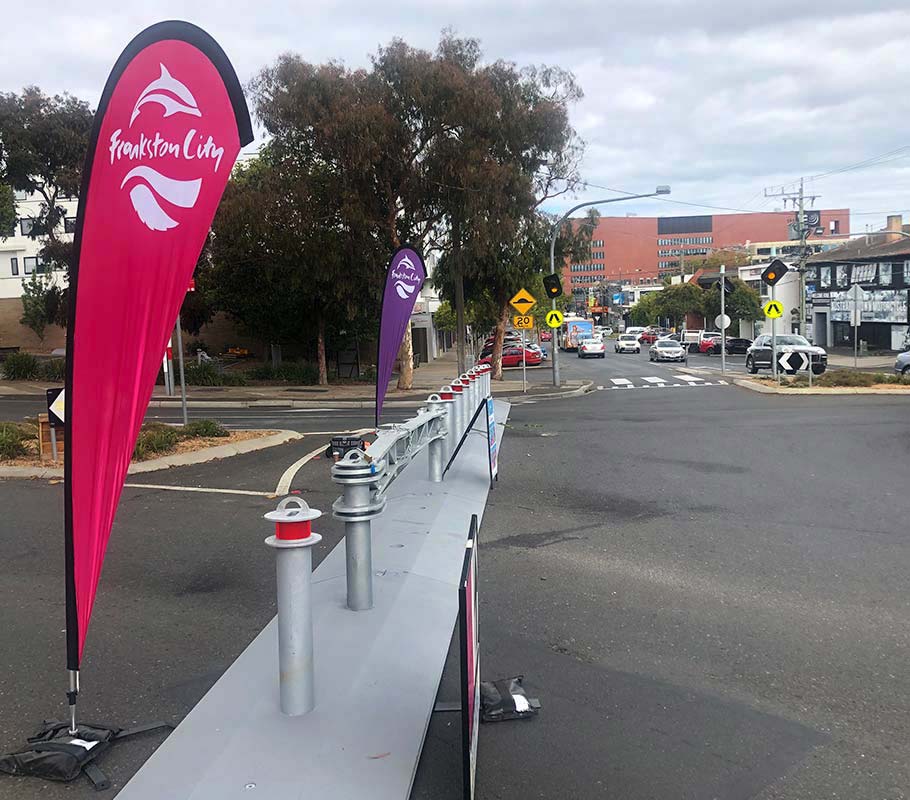

Saferoads Portable Bollard at Frankston Christmas Festival of Lights

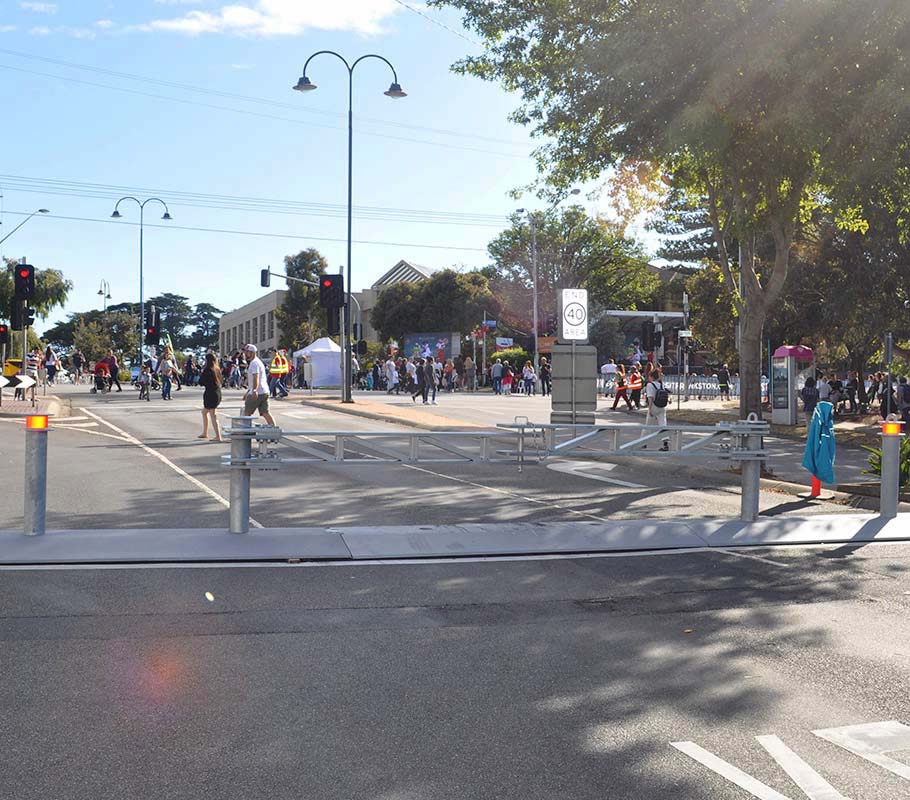

Frankston Christmas Festival of Lights

One of Melbourne’s largest and most iconic street festivals, needed to ensure the protection the crowds enjoying the event.
Read more
