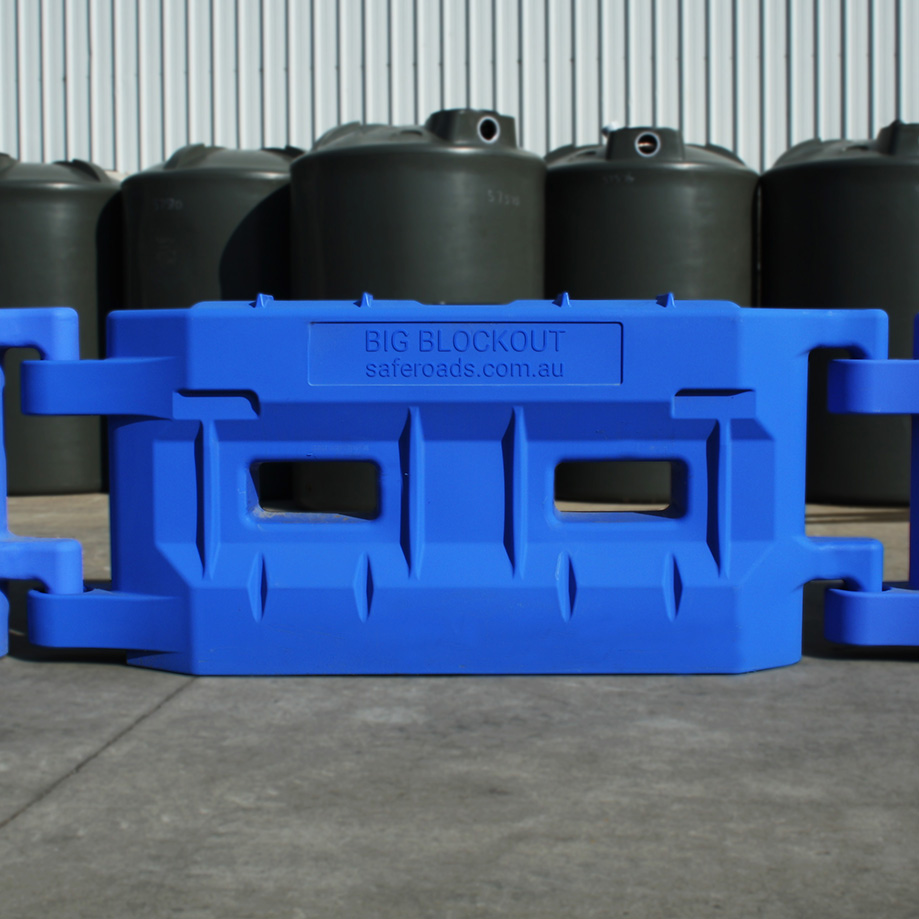

Durable water filled barrier system

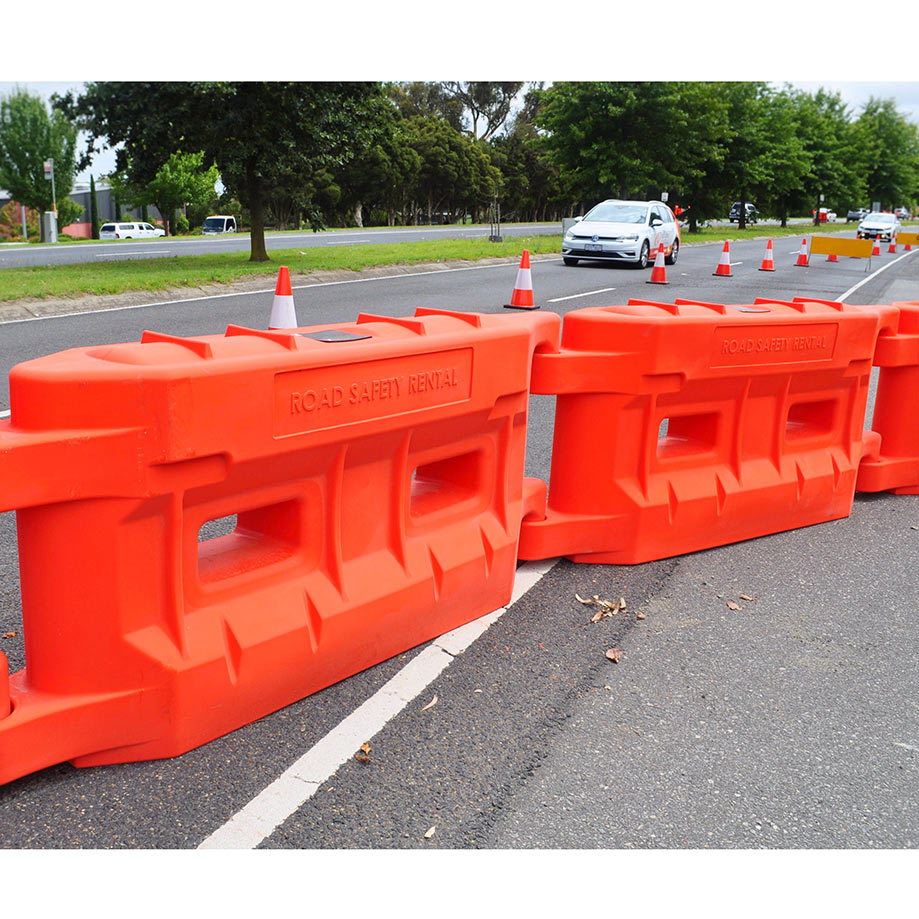

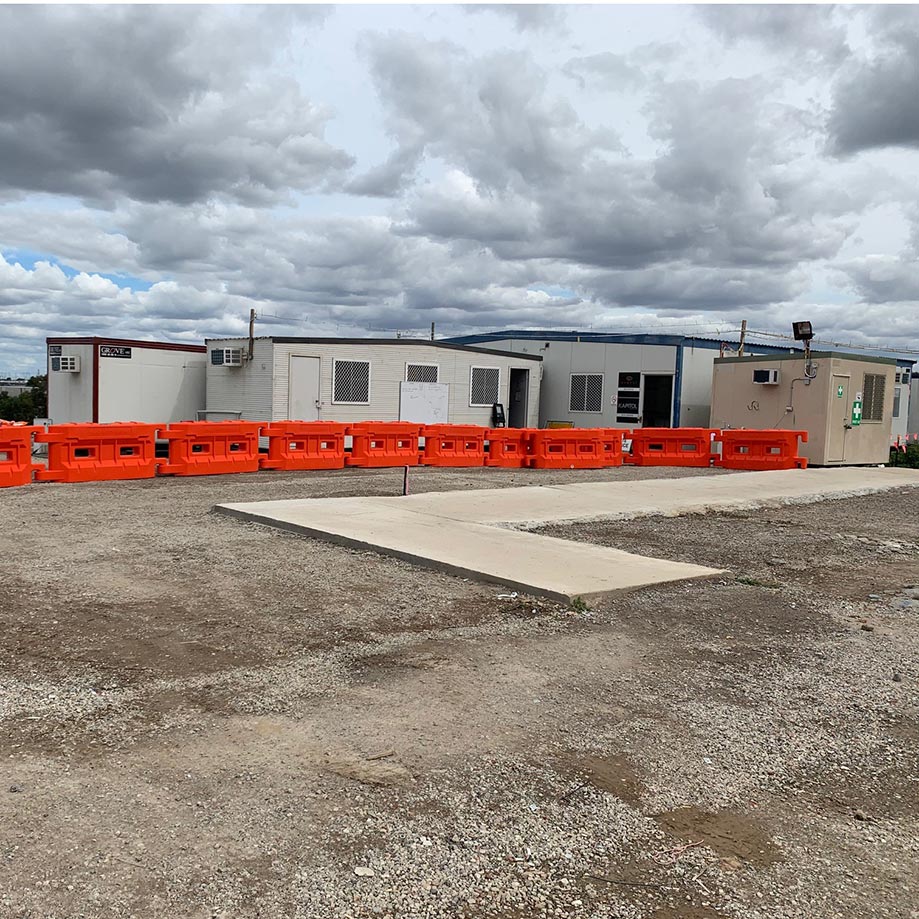

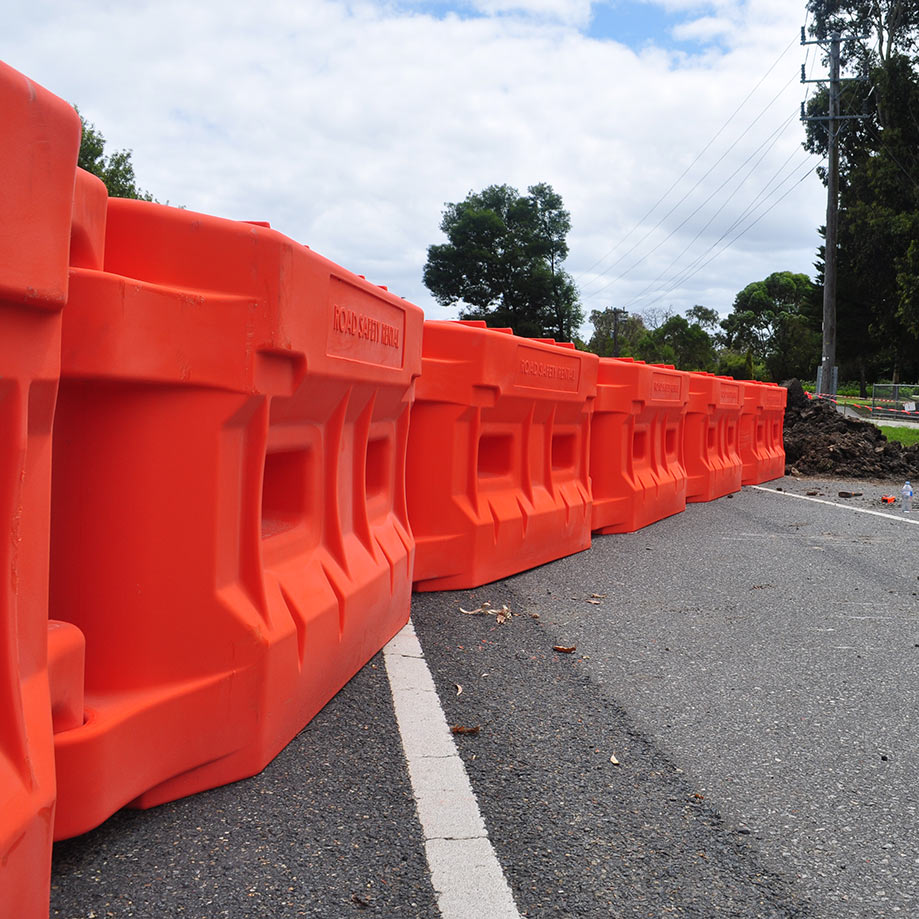

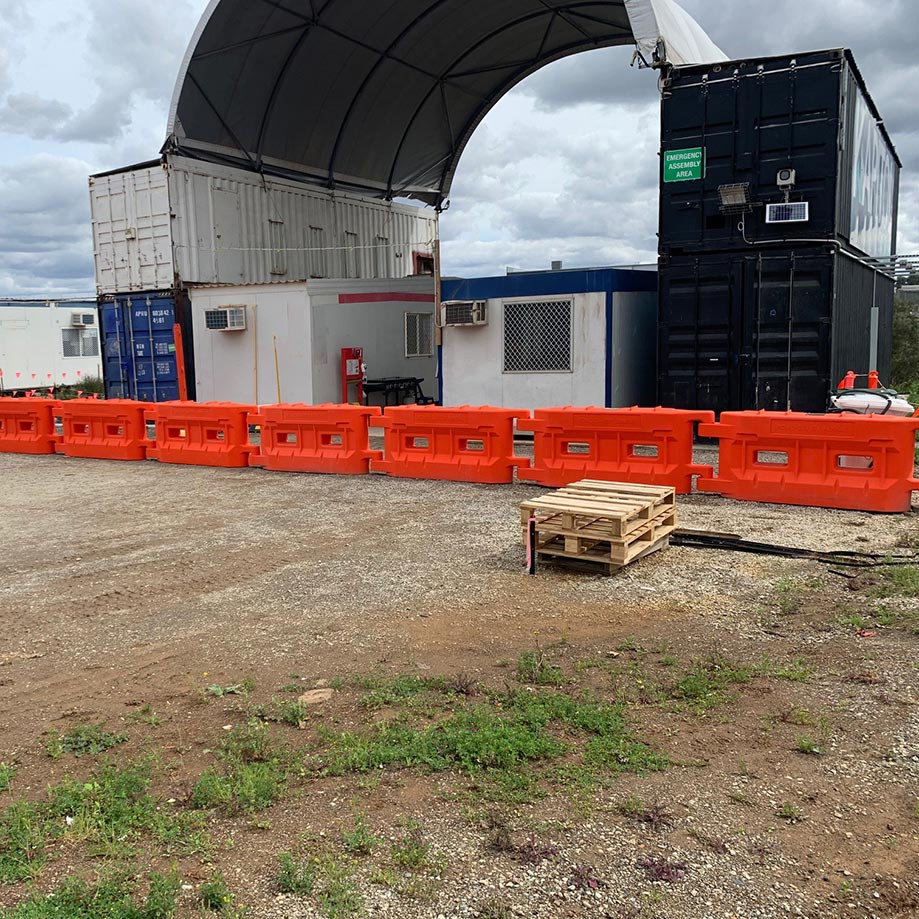

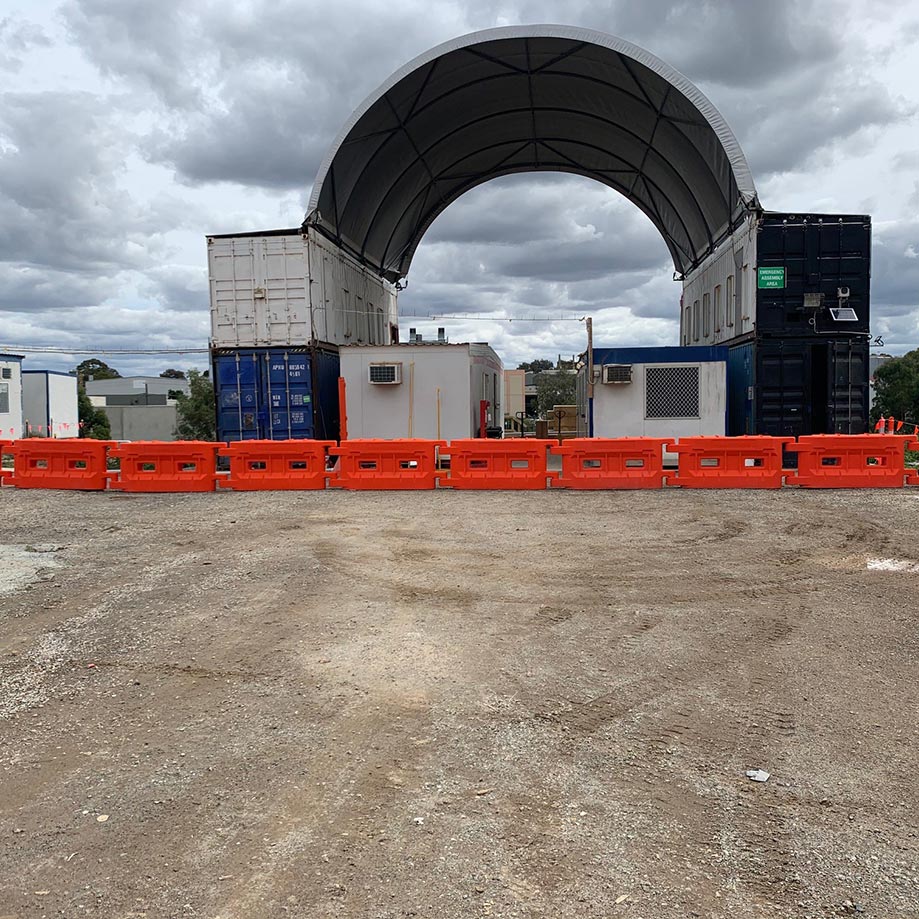

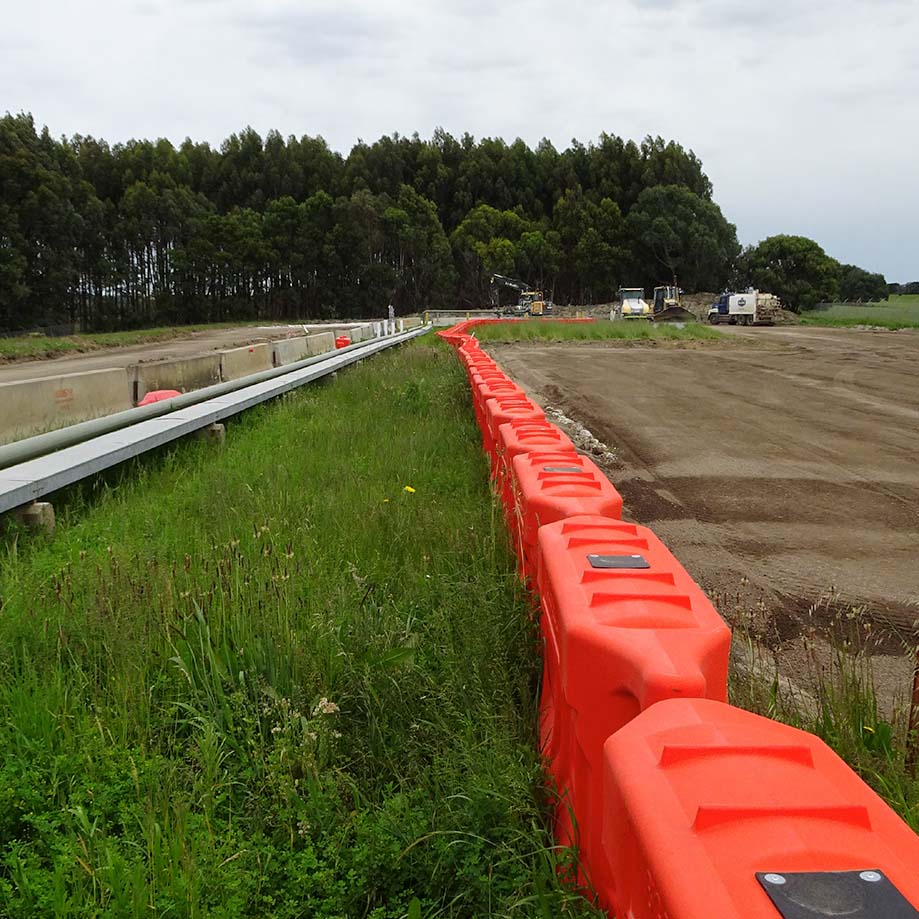

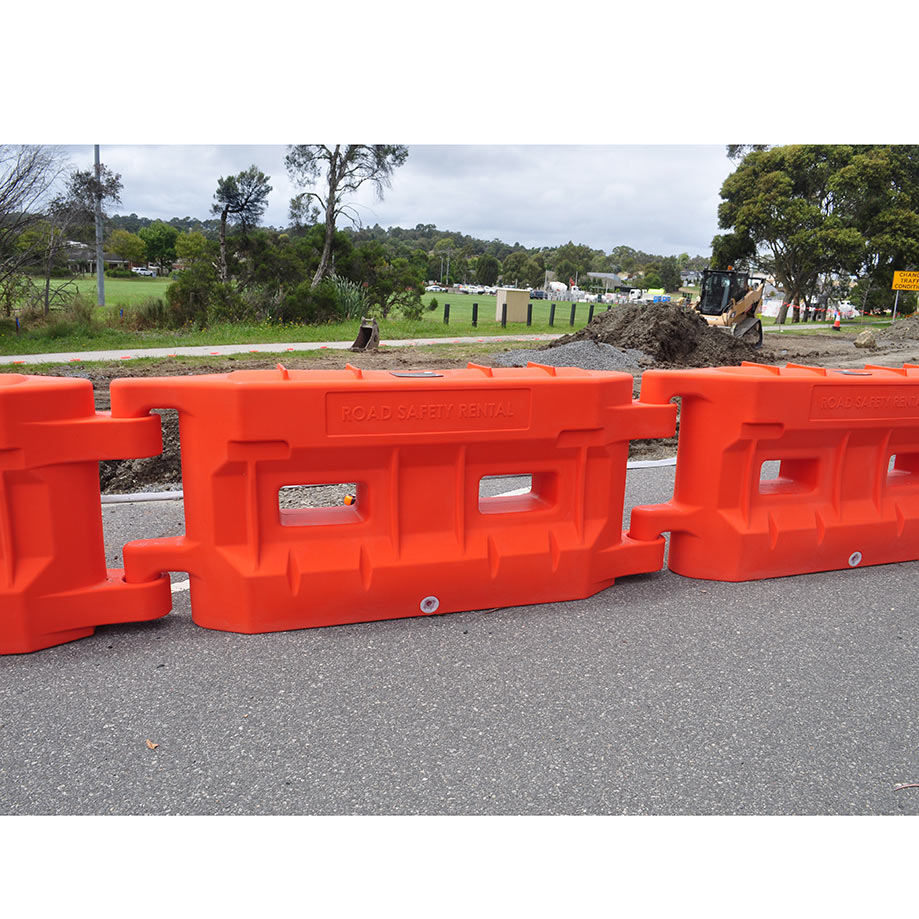

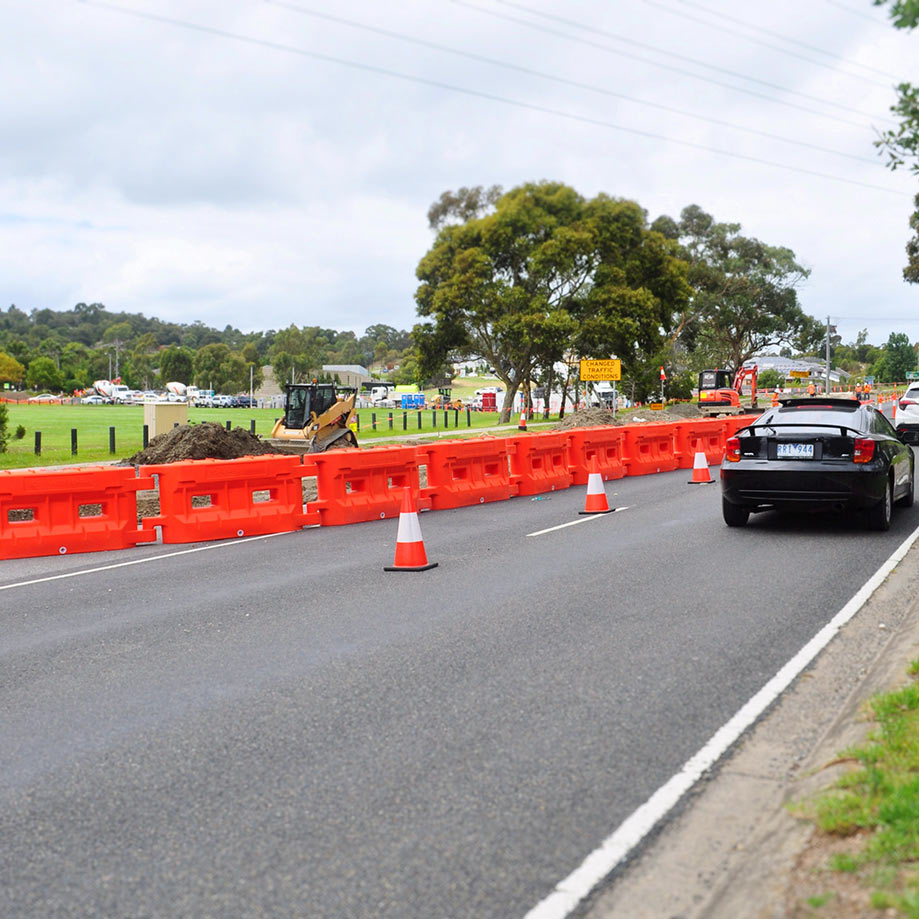

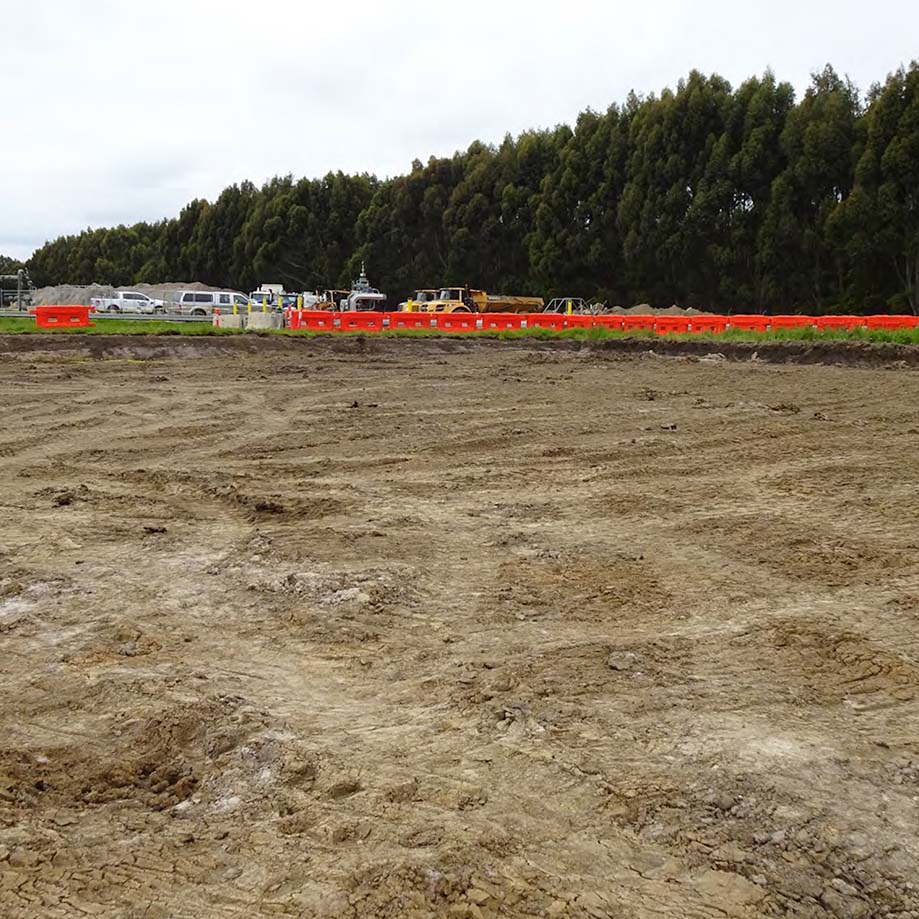

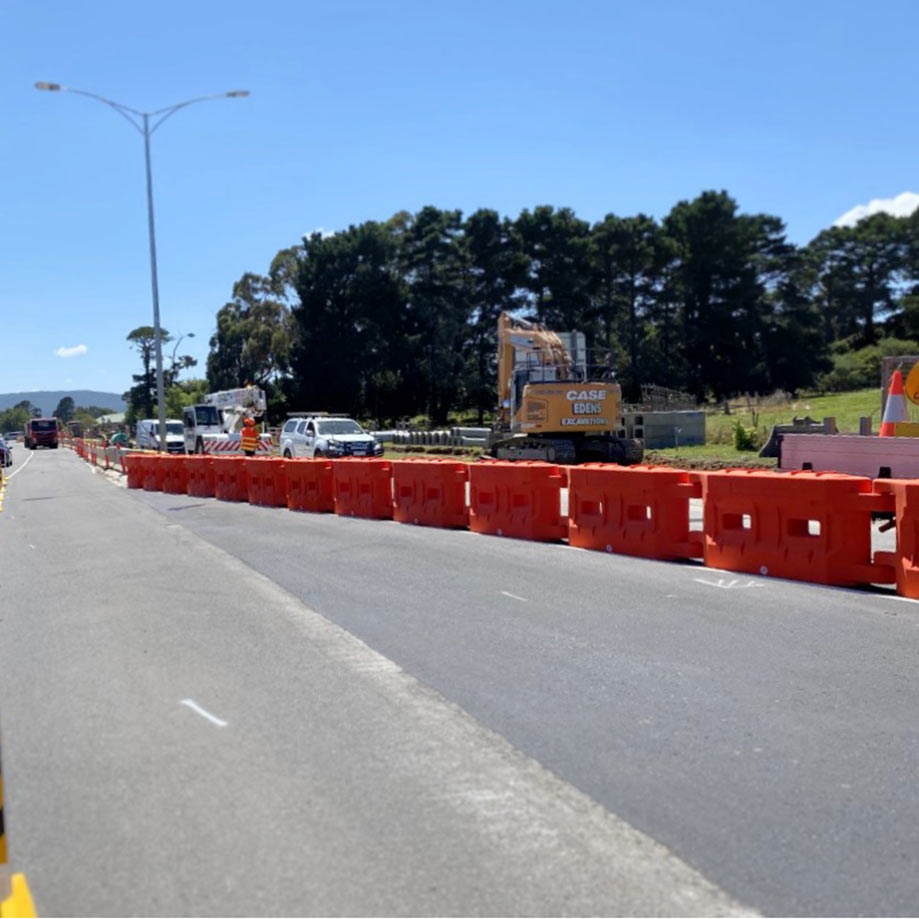

Saferoads has developed a robust barrier system for non tested applications, including and not limited to site work, delineation, shielding or simply for lower speed and offline sections of work areas that require separation from pedestrians or ongoing traffic. These barriers are convenient to deploy and also lend themselves to event management applications.

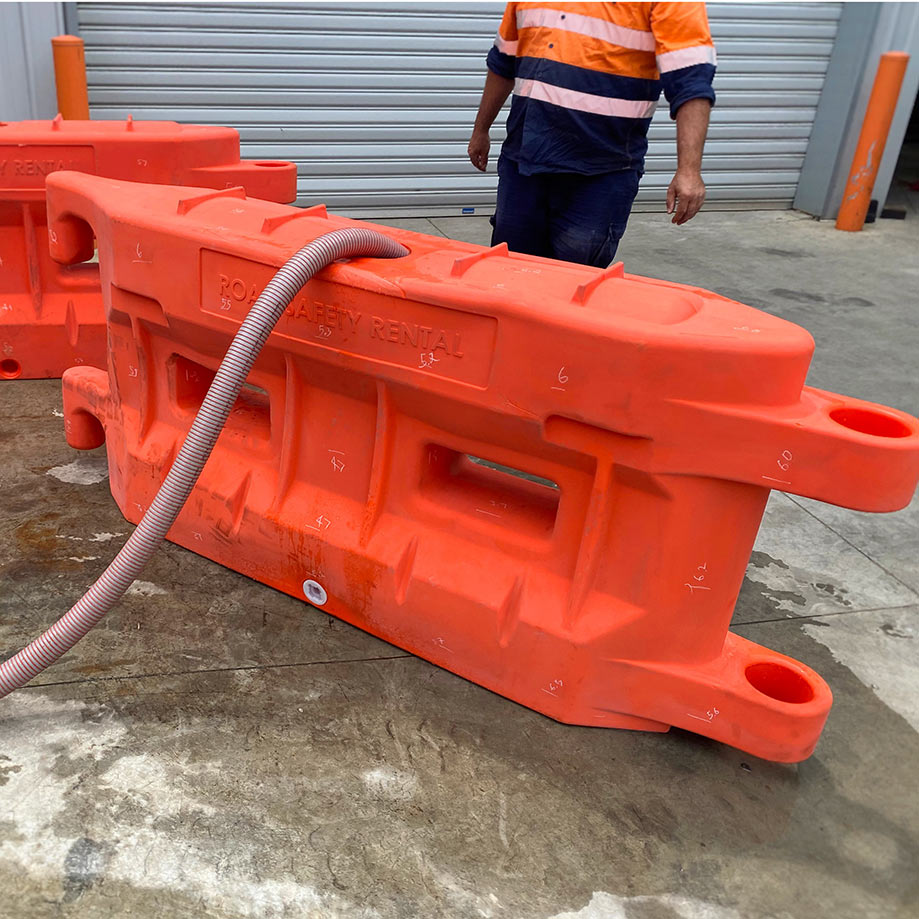

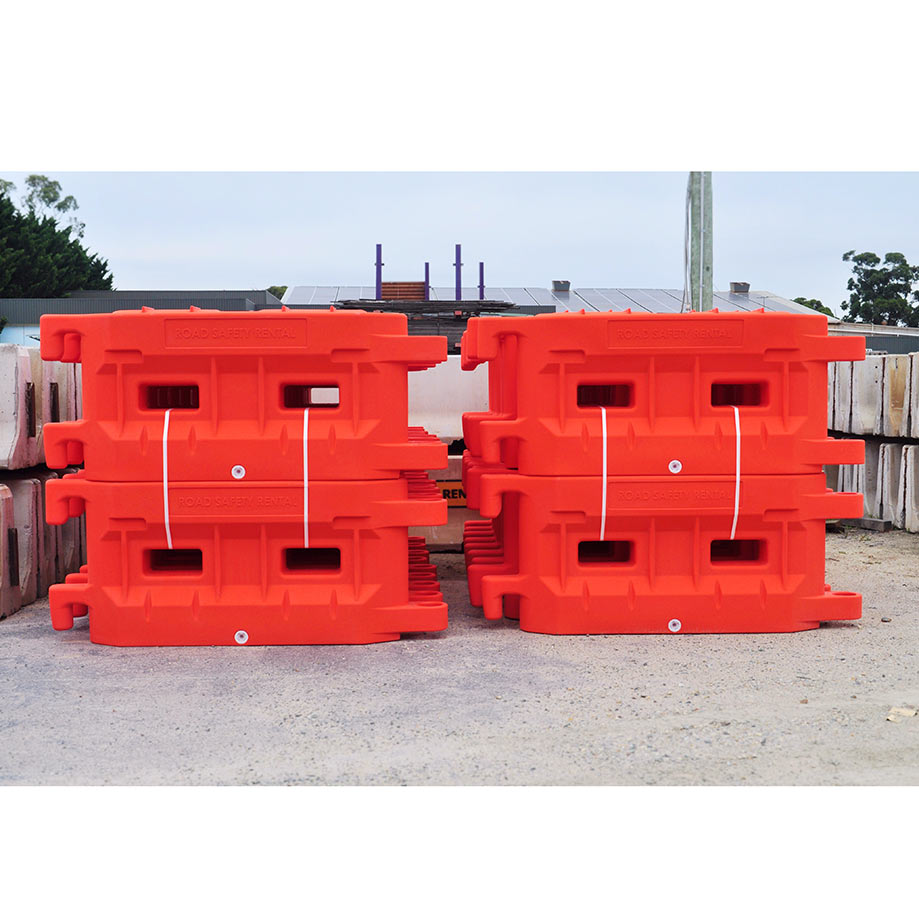

Weighing just 38kg when empty the BIG Blockout can be stacked during storage and transport, and filled with 450L of water once deployed on site.

  • Australian designed and manufactured
  • Extra durable and robust
  • Highest quality plastic barriers available
  • Segments are 2.2m in length

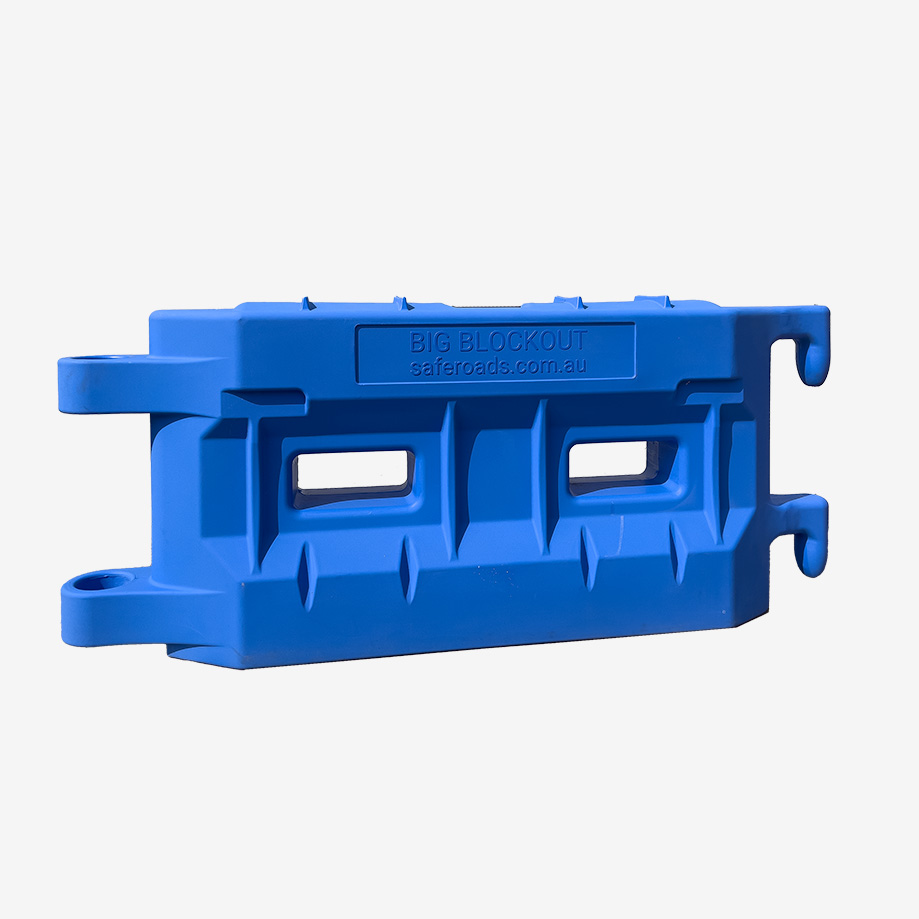

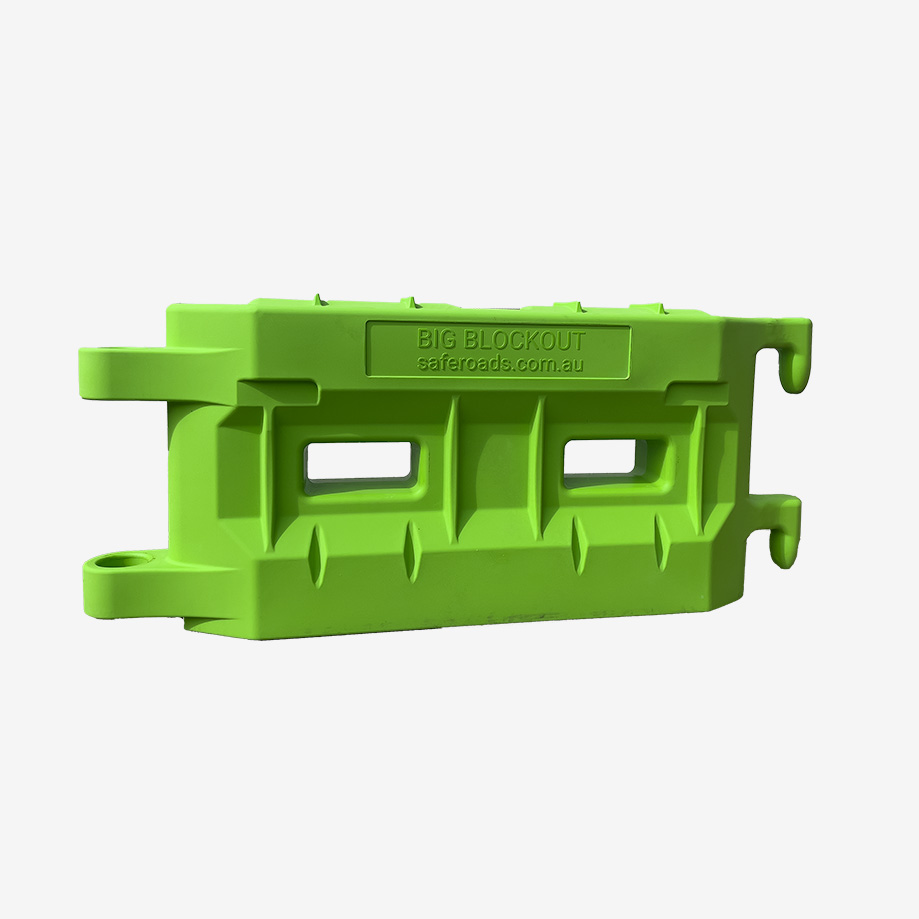

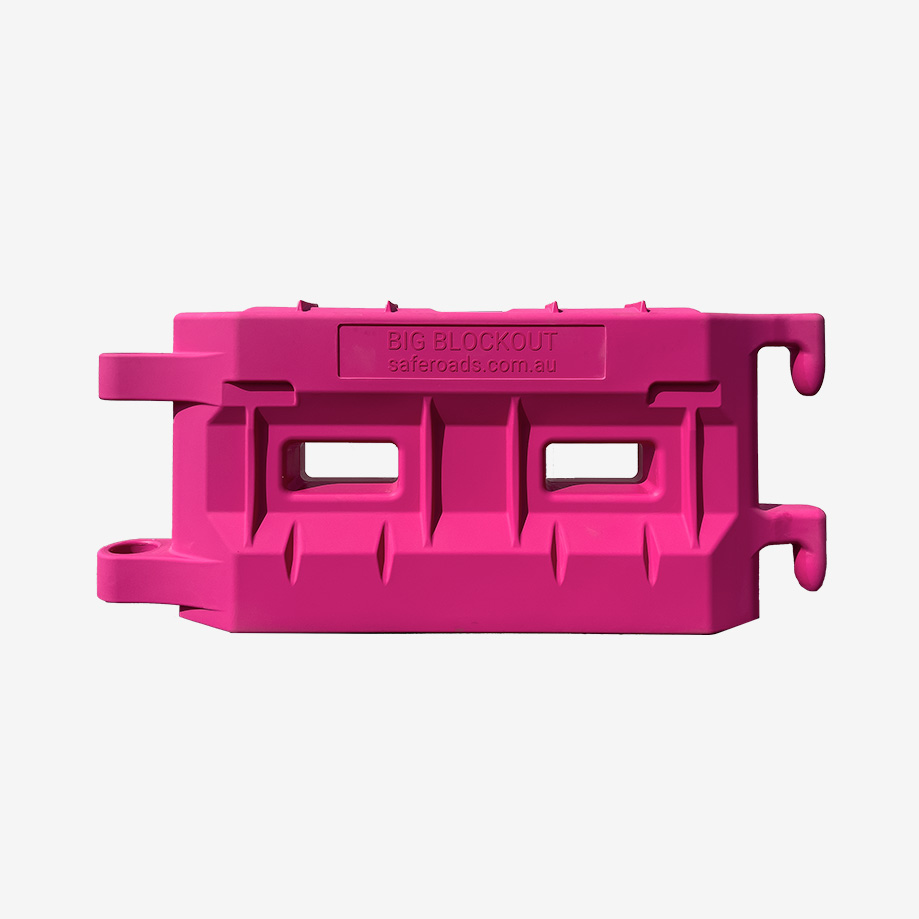

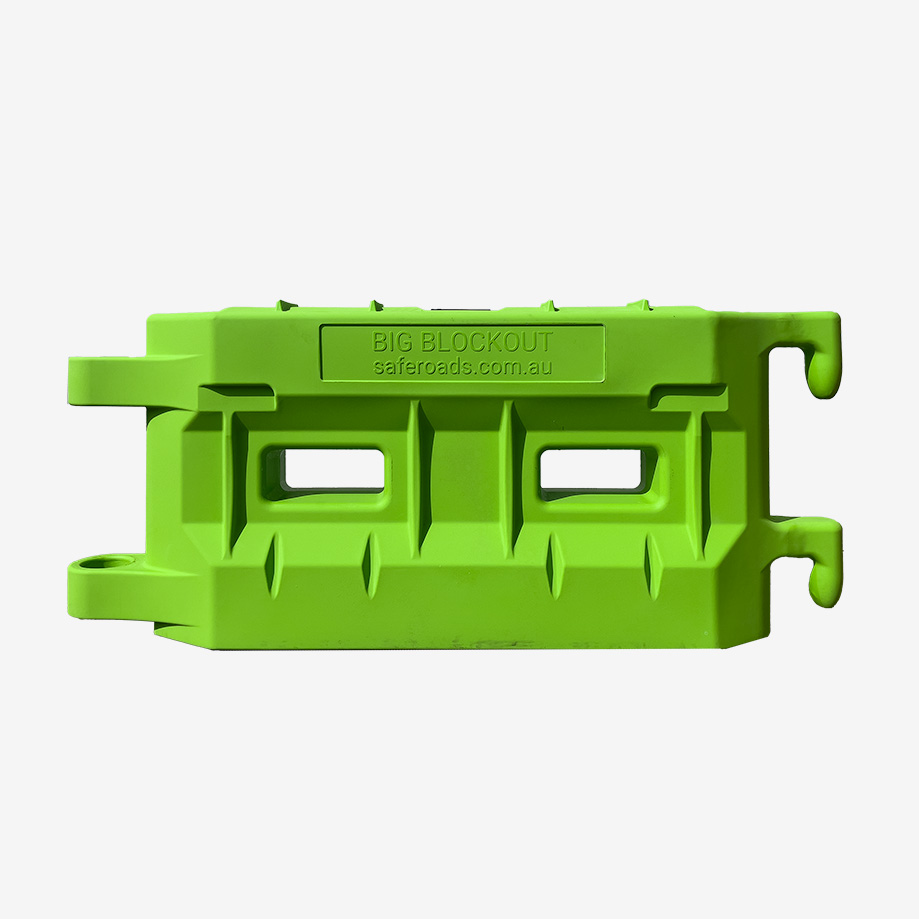

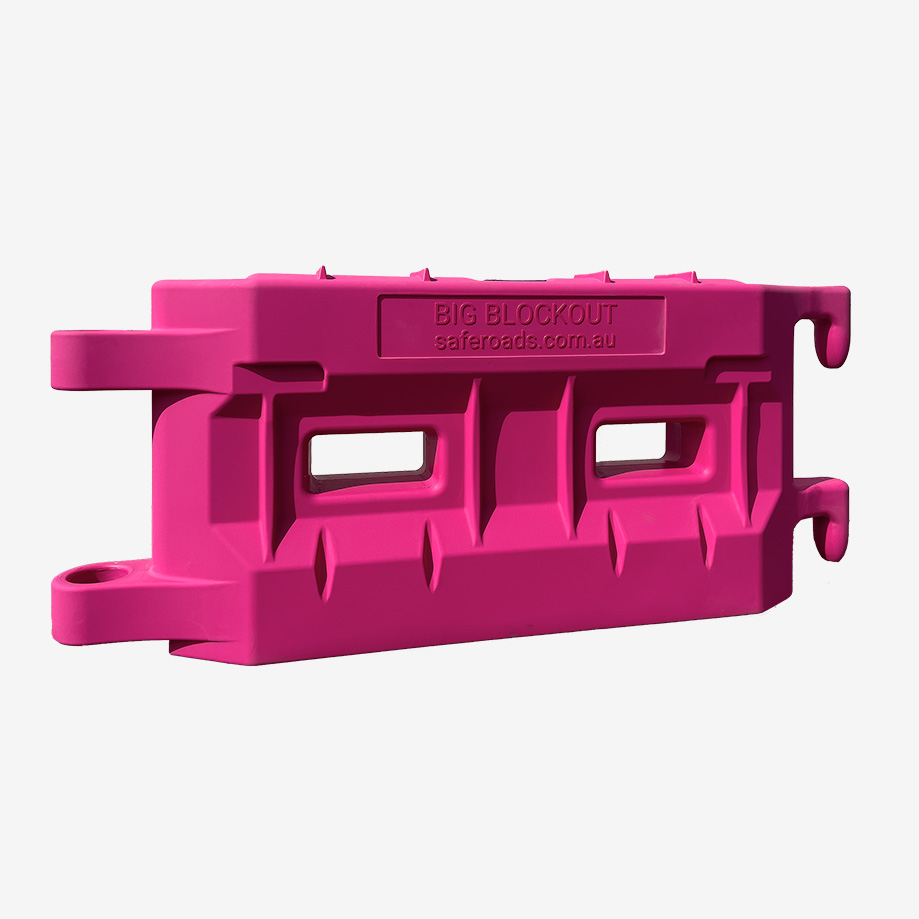

  • Available in a range of bright colours for high visibility on-site
  • Innovative tapered interlocking tabs are efficient to use
  • Convenient to deploy and user friendly to stack

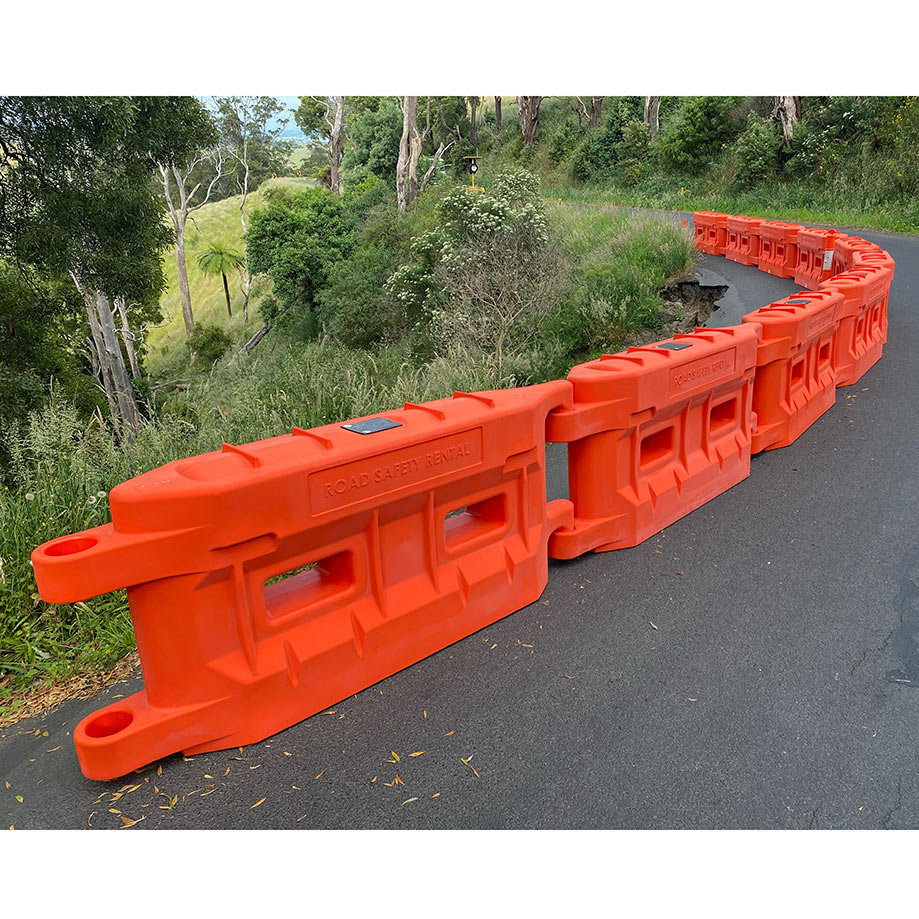

  • Each join allows for 300 degree angling
Get a Quote
Buy Online
Need to order a large quantity? Enquire now

Videos

Temporary Work Zone Barrier
Temporary Barriers

Specifications

Overall Length 2200mm
Installed Length 2050mm
Width 390mm
Height 940mm
Height of 2 stacked units 1840mm
Wall Thickness 8mm
Weight (empty) 38kg
Weight (full) 488kg
Water Ballast 450L

Please note: This is not a crash tested barrier.

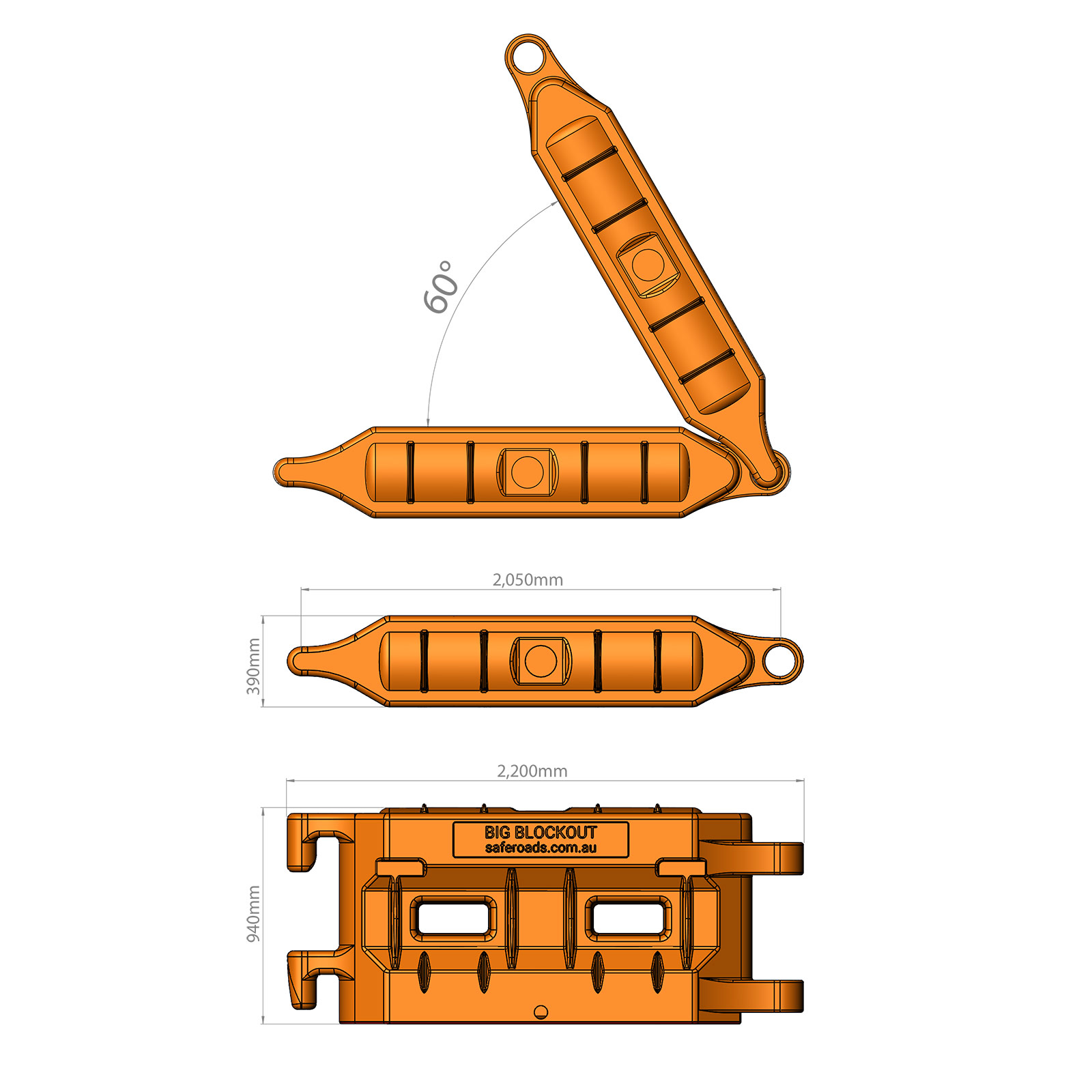

view technical drawing
Blockout Barrier

Downloads

Datasheet Warranty Manual SOP - LEUZ

FAQ'S

(+)Expand All

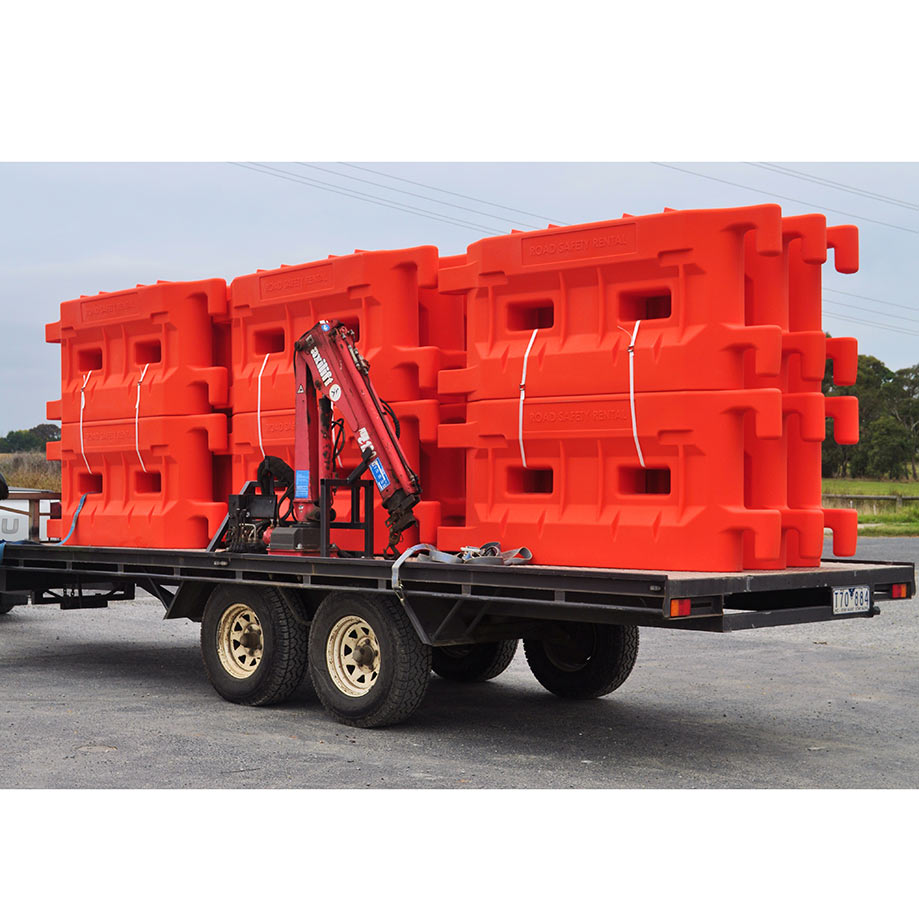

You can transport 72 units on each trailer.

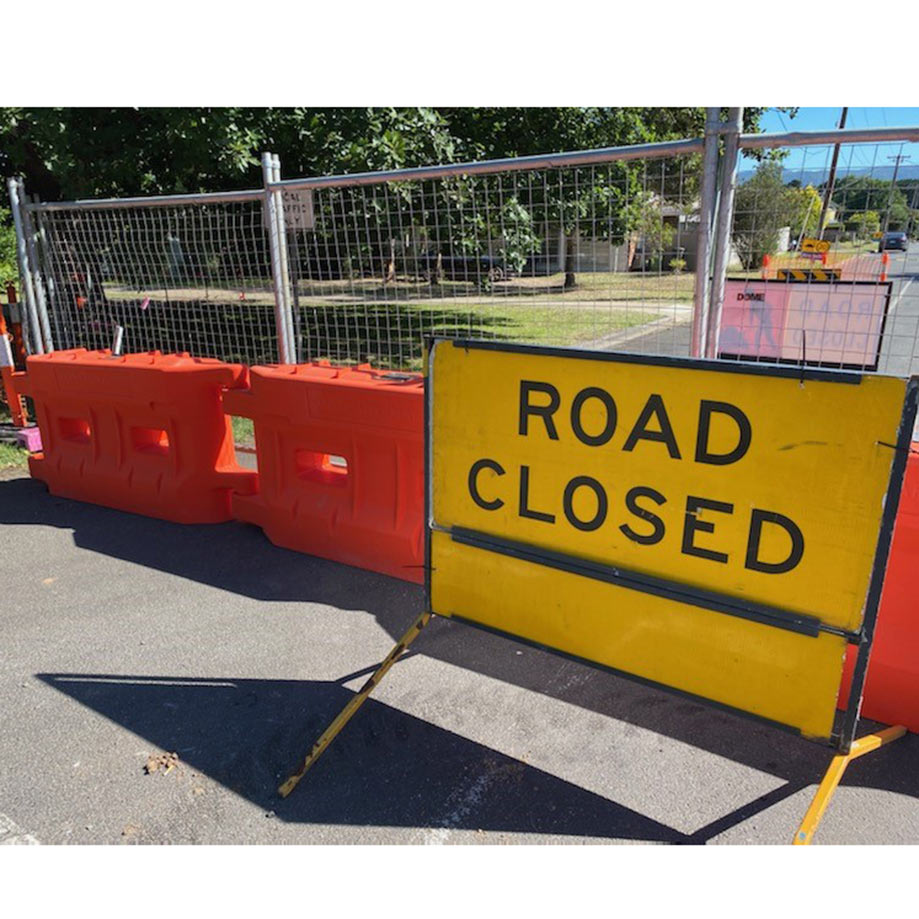

Big Blockout barriers are non-tested barriers, and therefore no end treatments are necessary. These barriers should only be used as a delineation, exclusion device or barricade to separate pedestrians from works areas that do not require a speed rated barrier (tested to MASH).
Each barrier weighs 38kgs and is 2213mm in length (2050mm installed length (please refer to technical drawing).

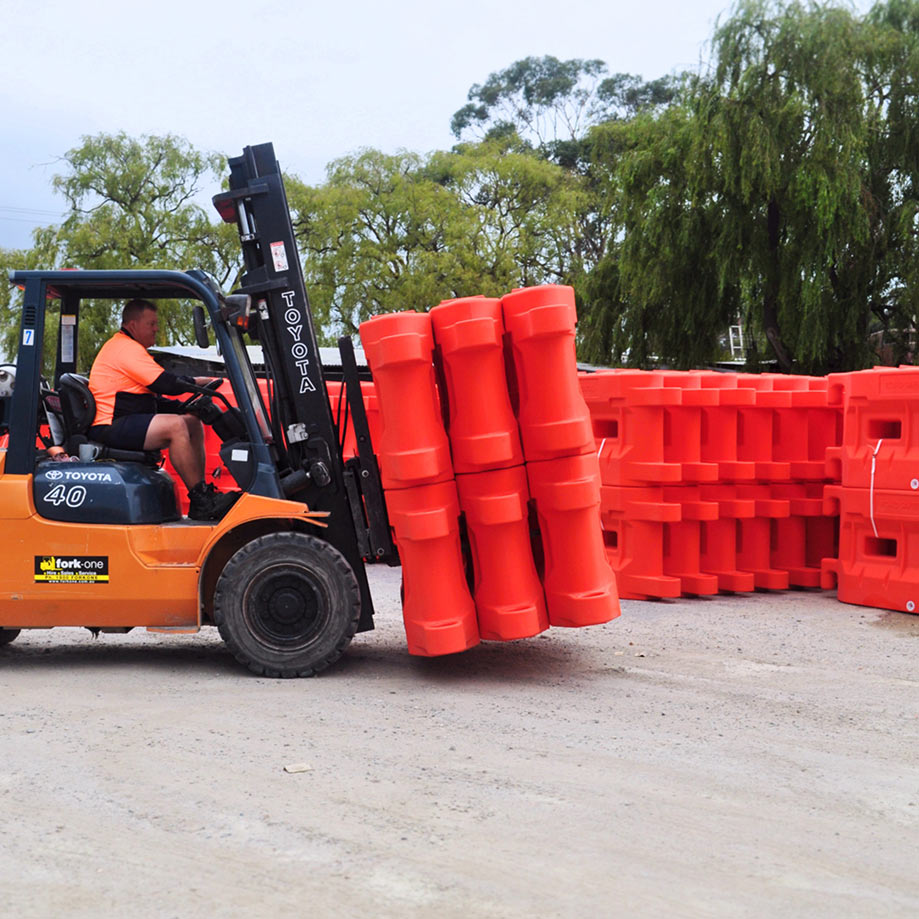

Barriers can be handled by two fit people, and be lifted and fitted together with relative ease. Alternatively, if barriers are tied together in bundles of 6, you could sling these and use a small hiab/crane, however, the activity can be done very quickly with people.

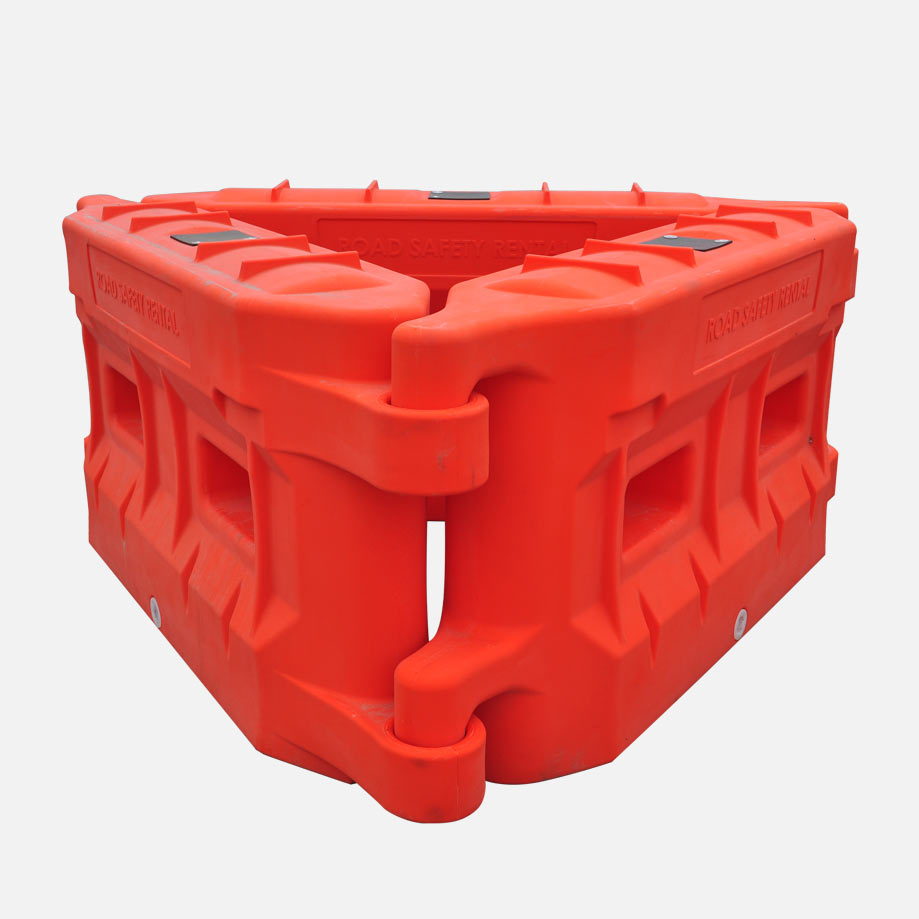

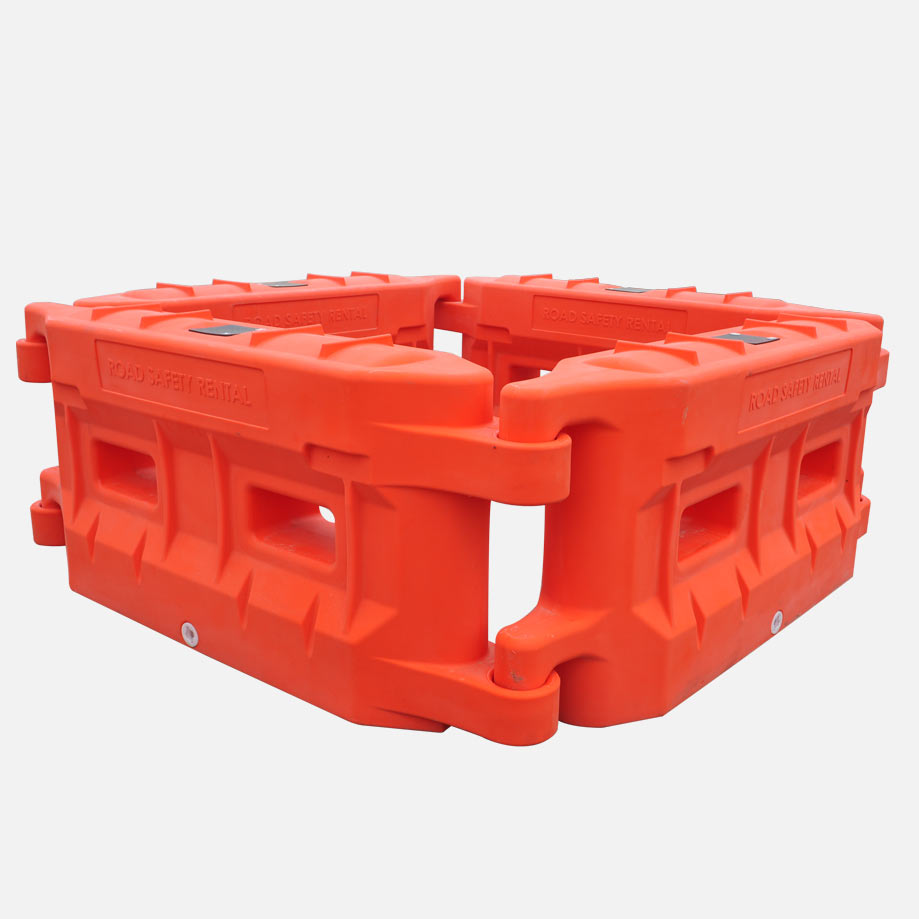

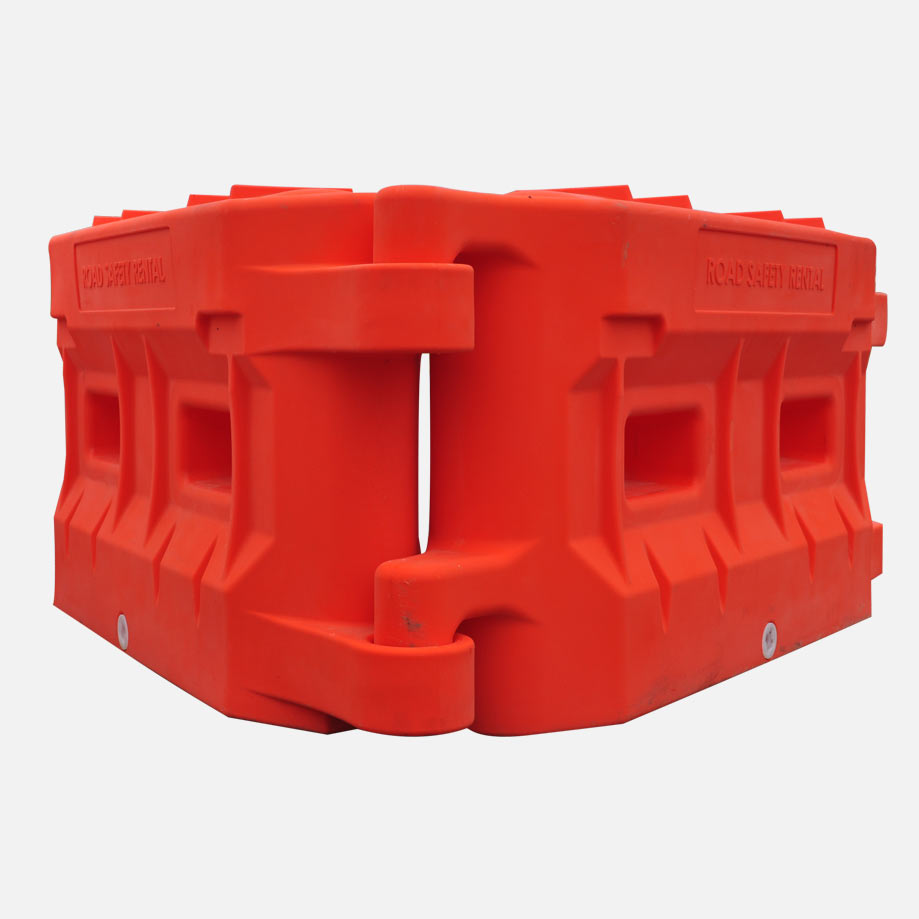

This barrier can effectively be deployed in a triangle using 3 barriers with it's highly versatile knuckles (please refer to the image gallery on the product page).
1000m+ with ease.
These barriers should only be used as a delineation, exclusion device or barricade to separate pedestrians from works areas that do not require a speed rated barrier (tested to MASH).
