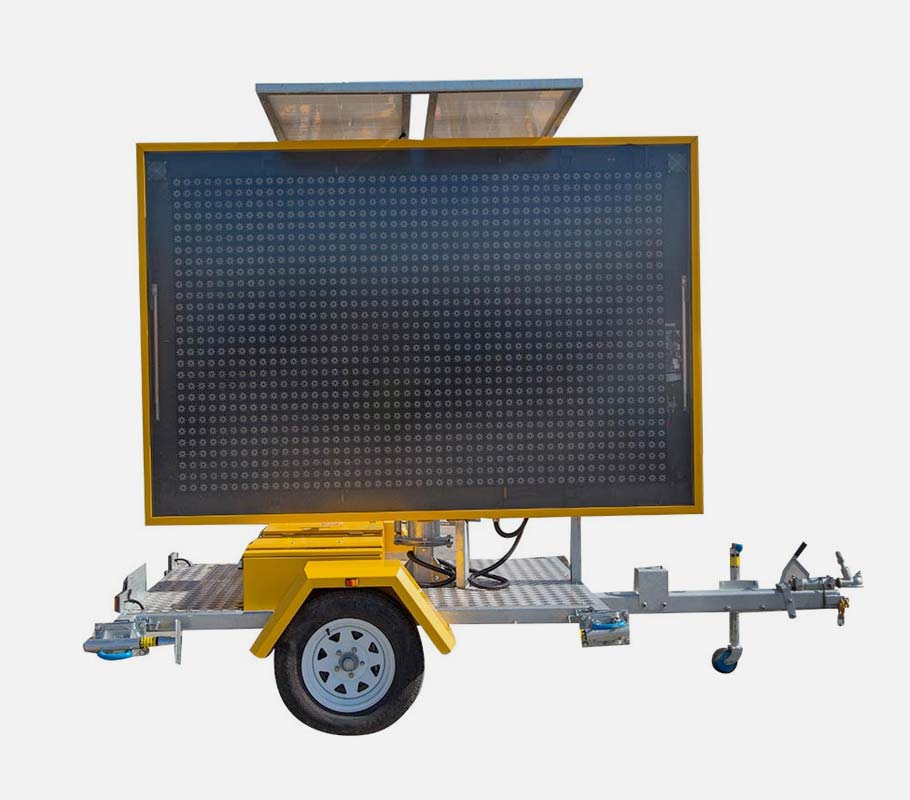

Zone VMS Essential

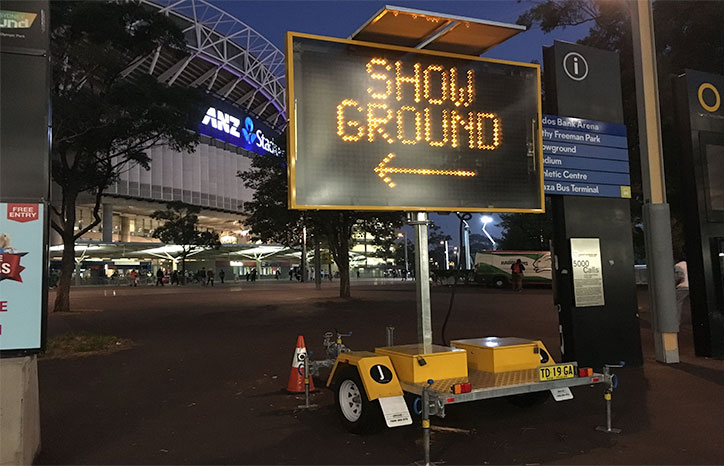

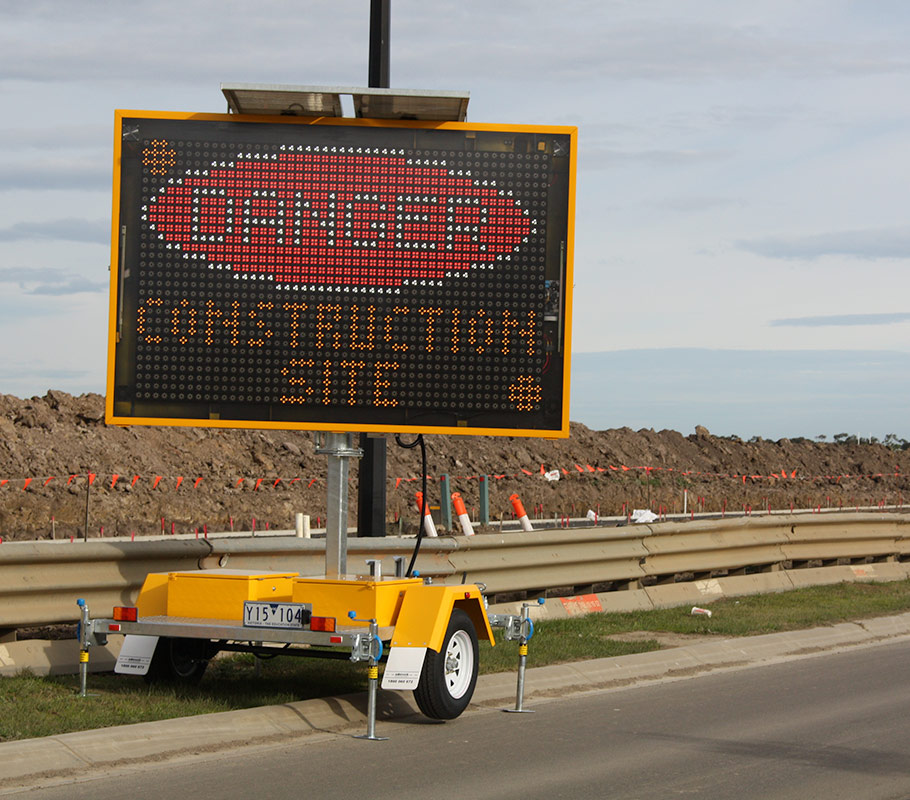

Essential by name, essential by nature – the Zone VMS Essential variable message board is the ideal way to keep drivers and workers
safe on road work sites, or advertise your business or event with ease. Designed and built in Australia,
you can take advantage of 24/7 Australian support services, no matter where your Zone Essential variable message signs are located.
Contact our team for more information.

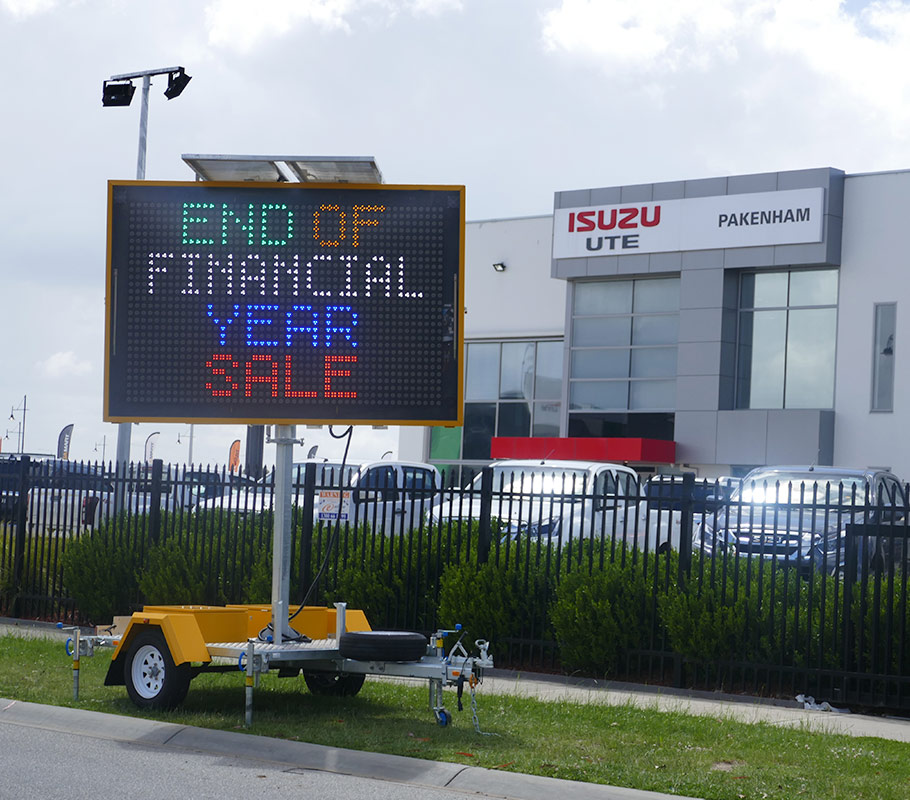

Available in amber or five colour fonts, the Zone Essential variable message board can easily be controlled from your smartphone or tablet, wherever you’re located. Powered with solar energy, it’s an affordable and effective solution for all of your signage needs.

  • Made to the highest quality standards

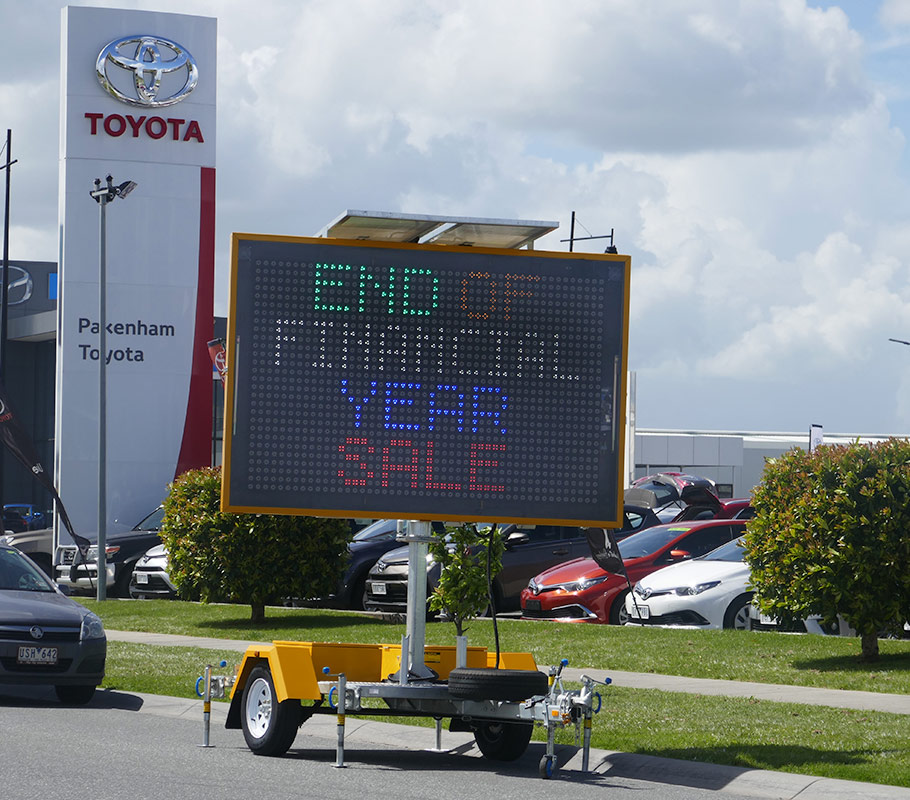

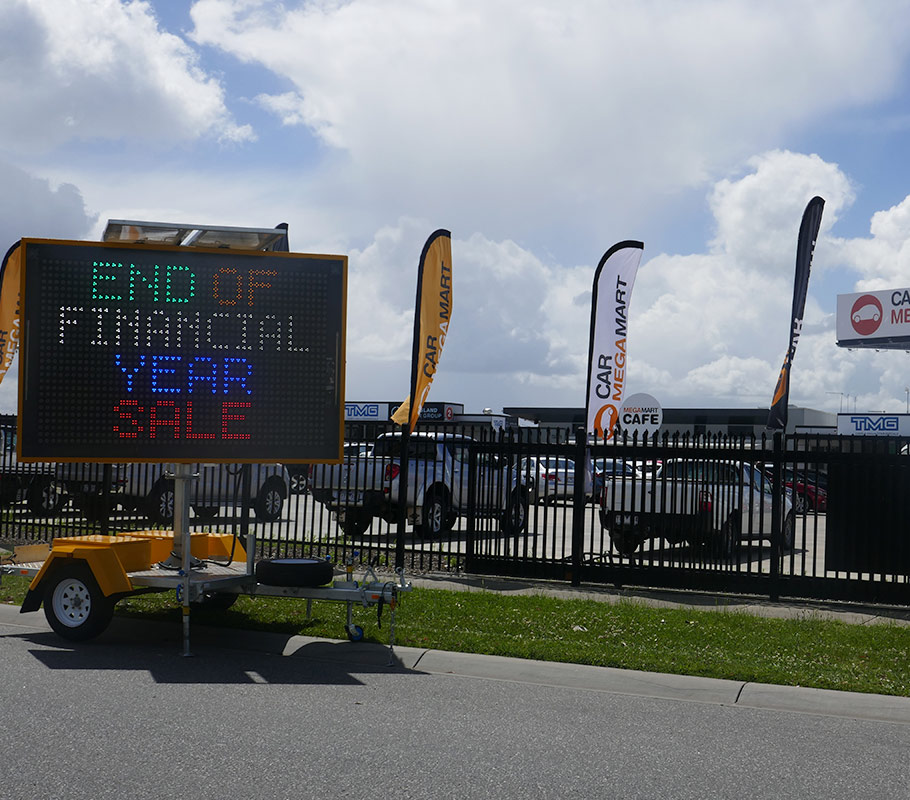

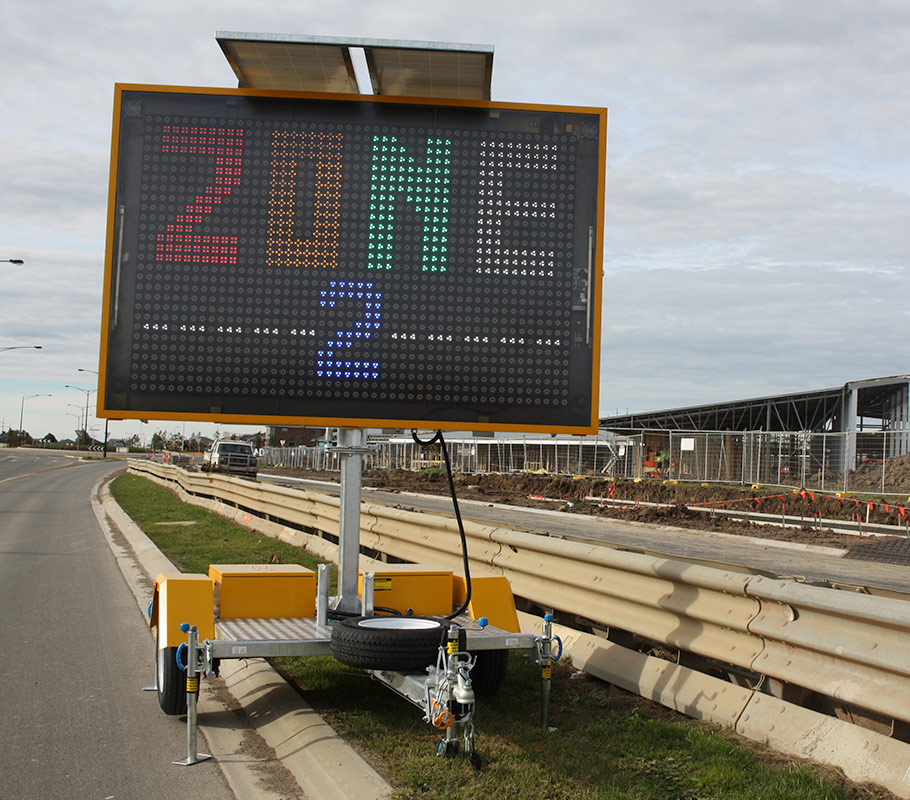

  • Amber or five colour (blue, green, amber, red and white) options
  • Heavy duty
  • Fully galvinised and powder coated
  • Australian designed and built
  • Remote access
  • Easy to use internet platform
  • Accesible from any browser/smart phone / tablet device
  • 24/7 australian support
  • 3 x 12v 200ah batteries
  • 2 x 150w solar panels
Applications
Utility
Mining
Construction
Traffic
Roadworks
Specifications
Product Code Amber F1504001E 5 Colour F1504001EC
Weight 800kg 860kg
Tare 1500kg Atm 1500kg Atm

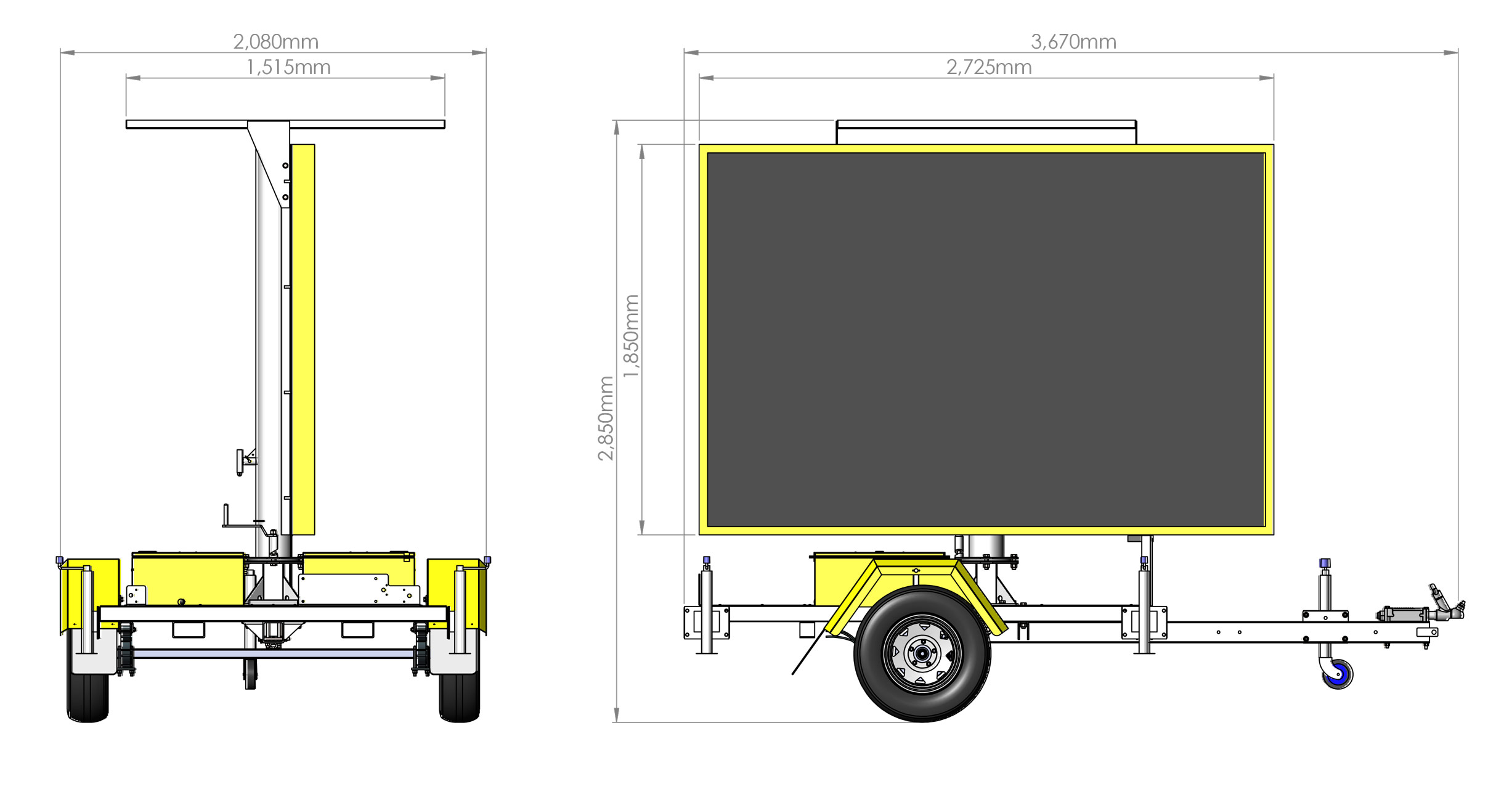

Length Overall 3450mm 3450mm
Width Overall 2000mm 2000mm
Height Travelling 2800mm 2800mm
Deployed Footprint Length 3600mm 3600mm
Deployed Footprint Width 2740mm 2740mm
Max Deployed Height 4200mm 4200mm
Number of 12v 200ah Batteries 3 3
No. of 150w Solar Panels 2 2
Led Display (en and ul/cul approval) Yes Yes
48 x 28 Full Matrix Led Pixels Yes Yes
400mm Character Height Yes Yes

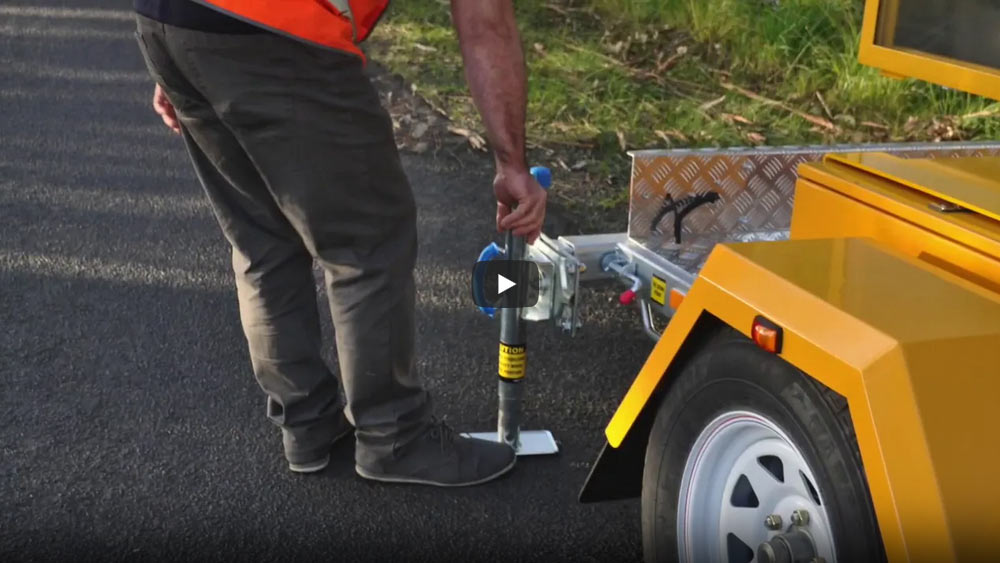

Galvanised/powder Coated Trailer With Extendable Stabilising Outriggers Yes Yes
Removable Drawbar (for multiple unit transport) Yes Yes
On Board Battery Charger Optional Optional
Automatic Brightness/dimming Yes Yes
No Software To Install Yes Yes
Solar Panel Tilts And Rotates No No
360 Degree Rotatable Display Yes Yes
Checker Plate Floor Optional Optional
On-Board Message Manager Optional Optional
Fully Sealed Tool Boxes With Gas Struts No No
Program Using Any Tablet/smart Phone Yes Yes
Remotely Monitor Battery Levels, Gps Location, Power Usage And Settings Yes Yes
Scheduling Software Allows Pre Programming Yes Yes
Spare Wheel Optional Optional
Radar System For Speed Monitoring Optional Optional
