SlipLoc Bollard

Rapid Stop Barrier

Overview Videos Gallery Specifications downloads faq’s case studies get a quote

CRASH TESTED PEDESTRIAN PROTECTION

Innovative and unique, Rapid Stop Barrier has been designed to offer superior protection for events and work zones. Designed to stop out of control vehicles and protect passers-by, they are a must for hostile vehicle protection and event security.

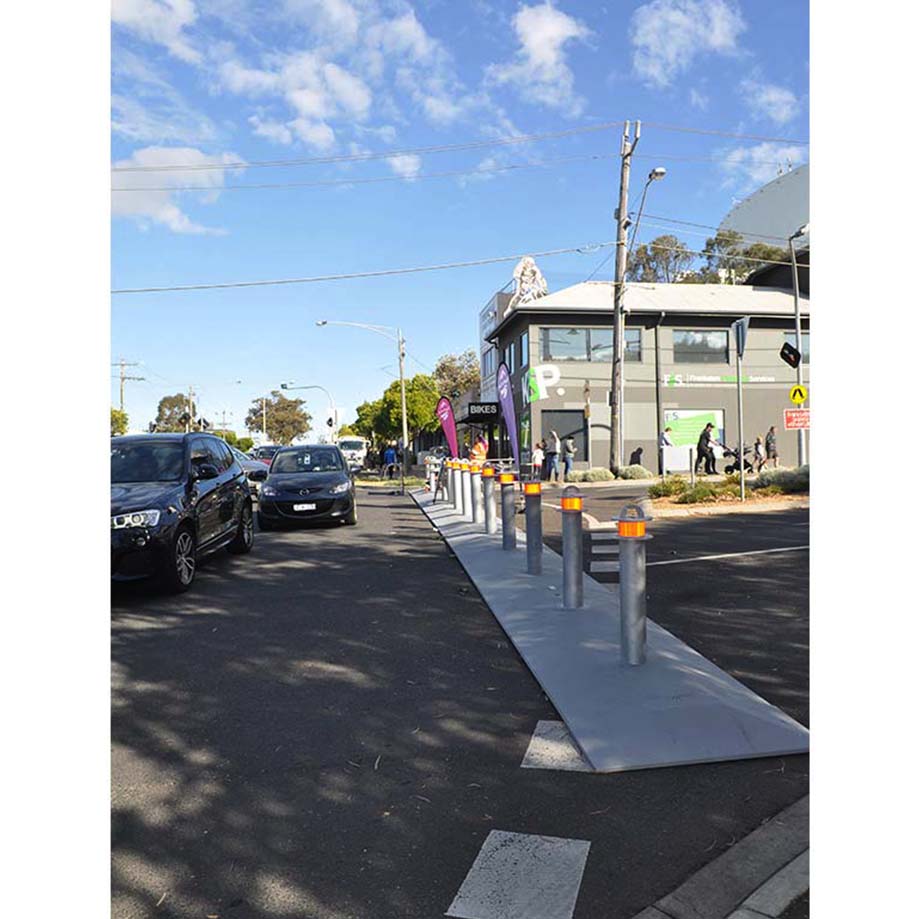

Rapid Stop Barrier is completely freestanding, modular system that stops intentional and accidental vehicle intrusion into crowded areas, whilst not restricting pedestrian access in and out of an area.

The flexible nature of the Rapid Stop Barrier makes it the perfect solution for applications where conventional longitudinal barrier systems are not practical. The system is efficient to transport and deploy and does not require anchoring.

  • Portable protection for pedestrian dense areas, events and worksites
  • Proven to safely stop vehicles impacting from any angle
  • Allows for pedestrian movement
  • Fully crash tested with a 2270kg vehicle at 60km/h (MASH compliant)
  • Non-lethal to occupants of impacting vehicle
Get a Quote
Buy Online
Need to order a large quantity? Enquire now

Videos

Crash Tested

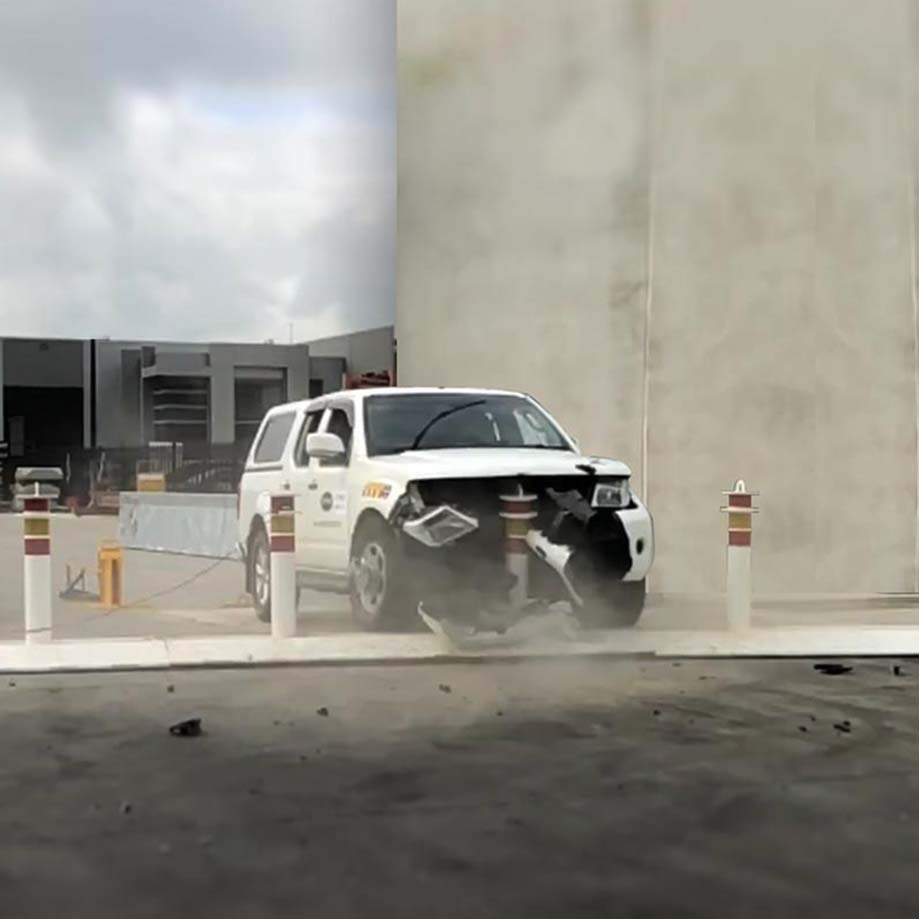

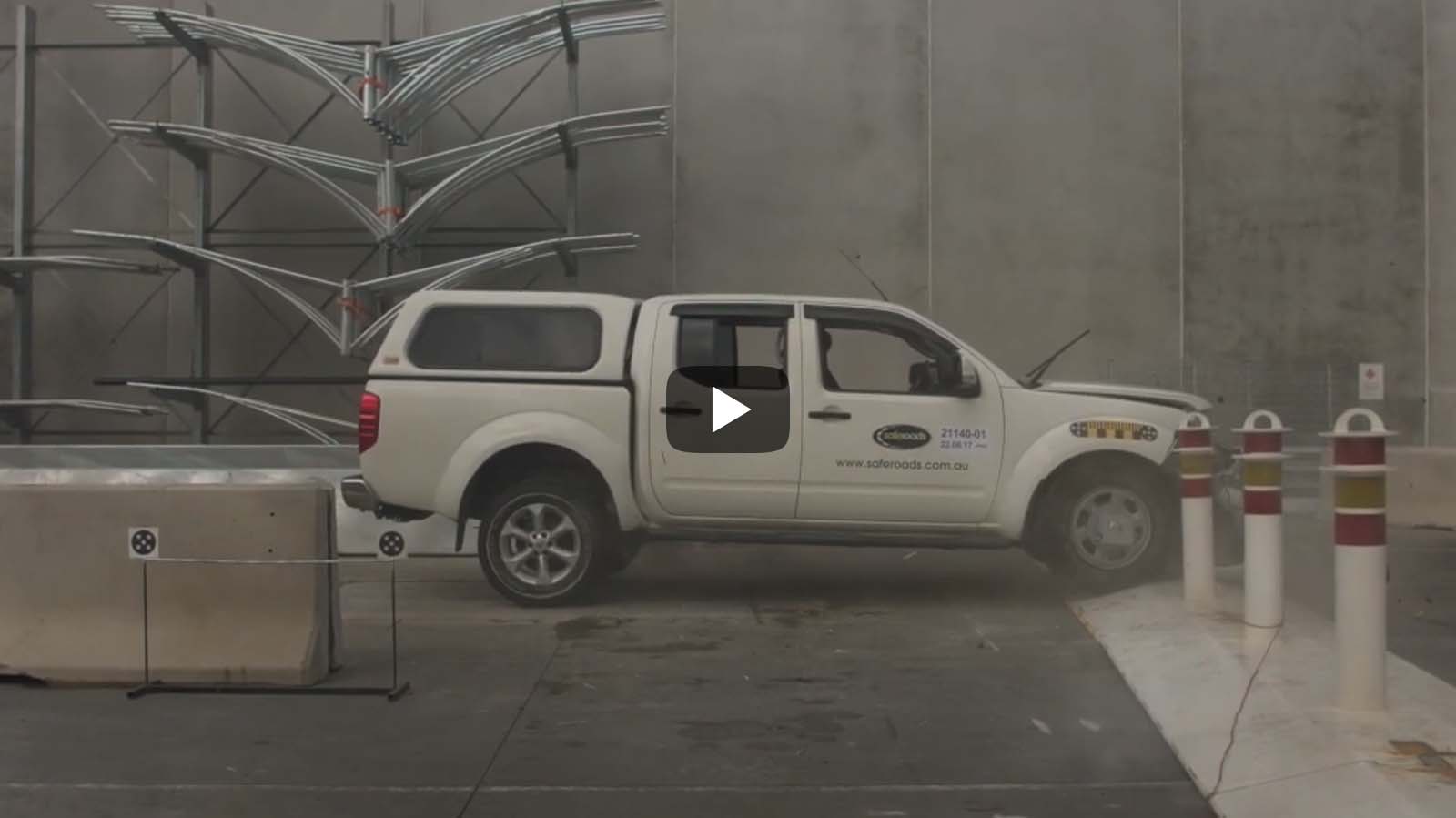

Rapid Stop Barrier Crash Test Video
Installation

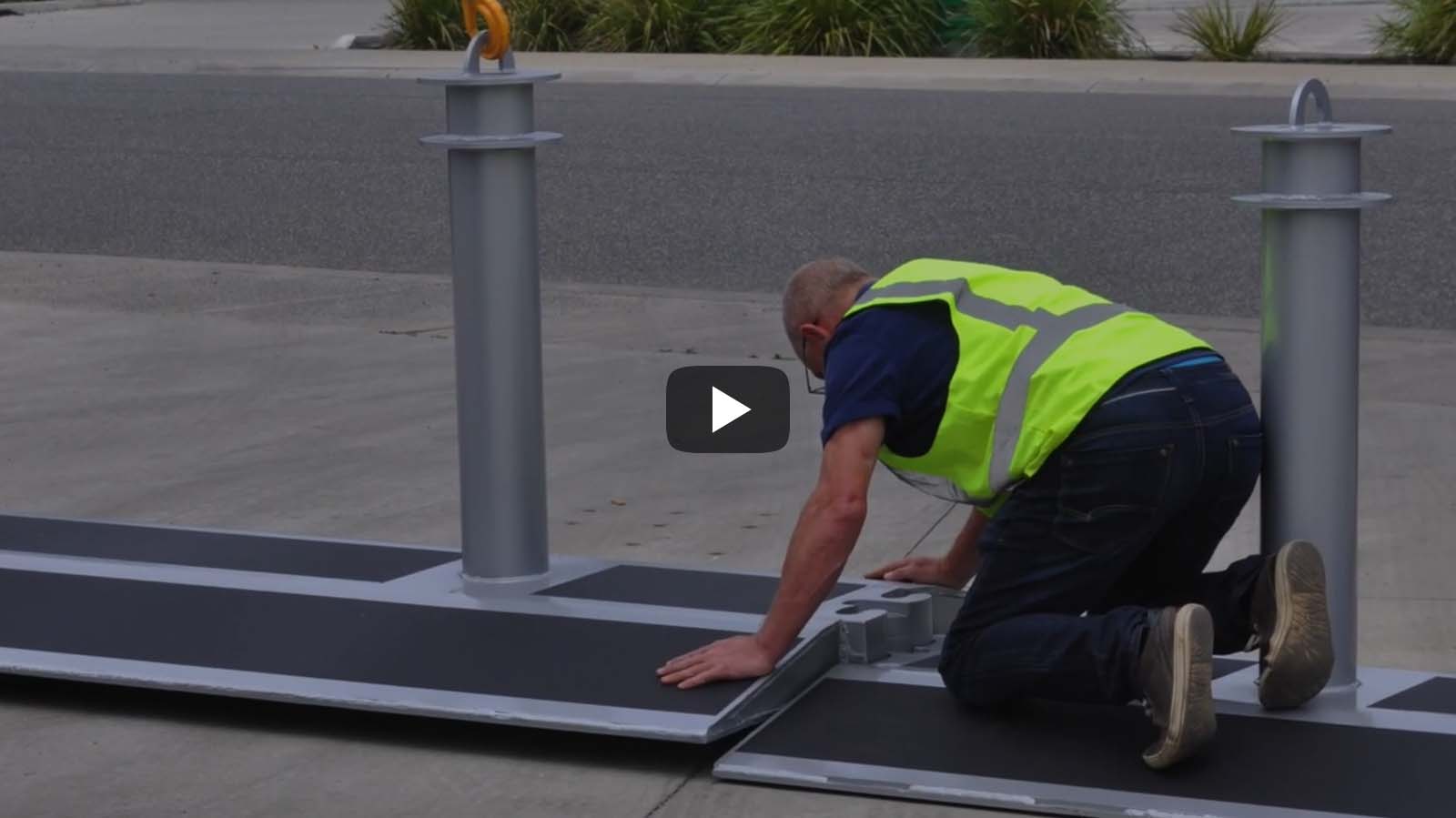

Rapid Stop Barrier Installation

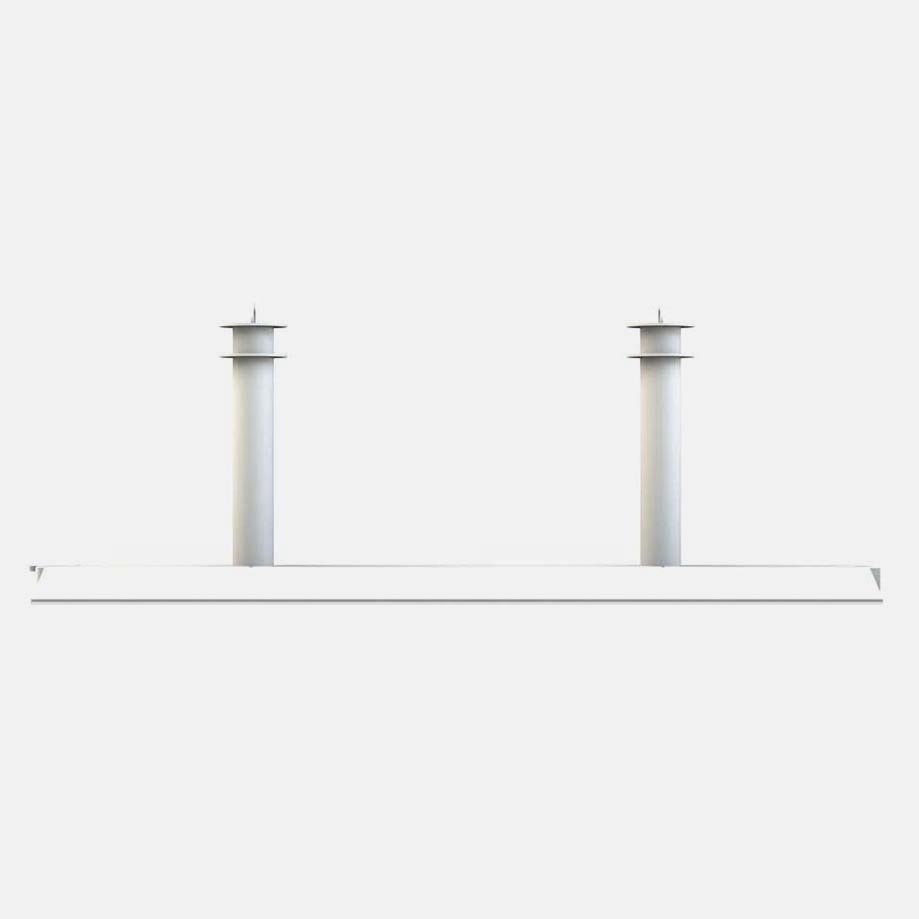

Specifications

Installed length 3000mm
Unit length 3088mm
Unit width 1150mm
Unit height (bollard) 1086mm
Unit height (base) 130mm
Weight 1250kg
Footing Freestanding no footing requirements
Vehicles Stopped
Vehicle Stopped Hatchback
SUV
Vehicle Stopped Sedan
Pickup
Crash Tested ASTM F3016 2270kg/5000lb vehicle at 60kmh/30mph

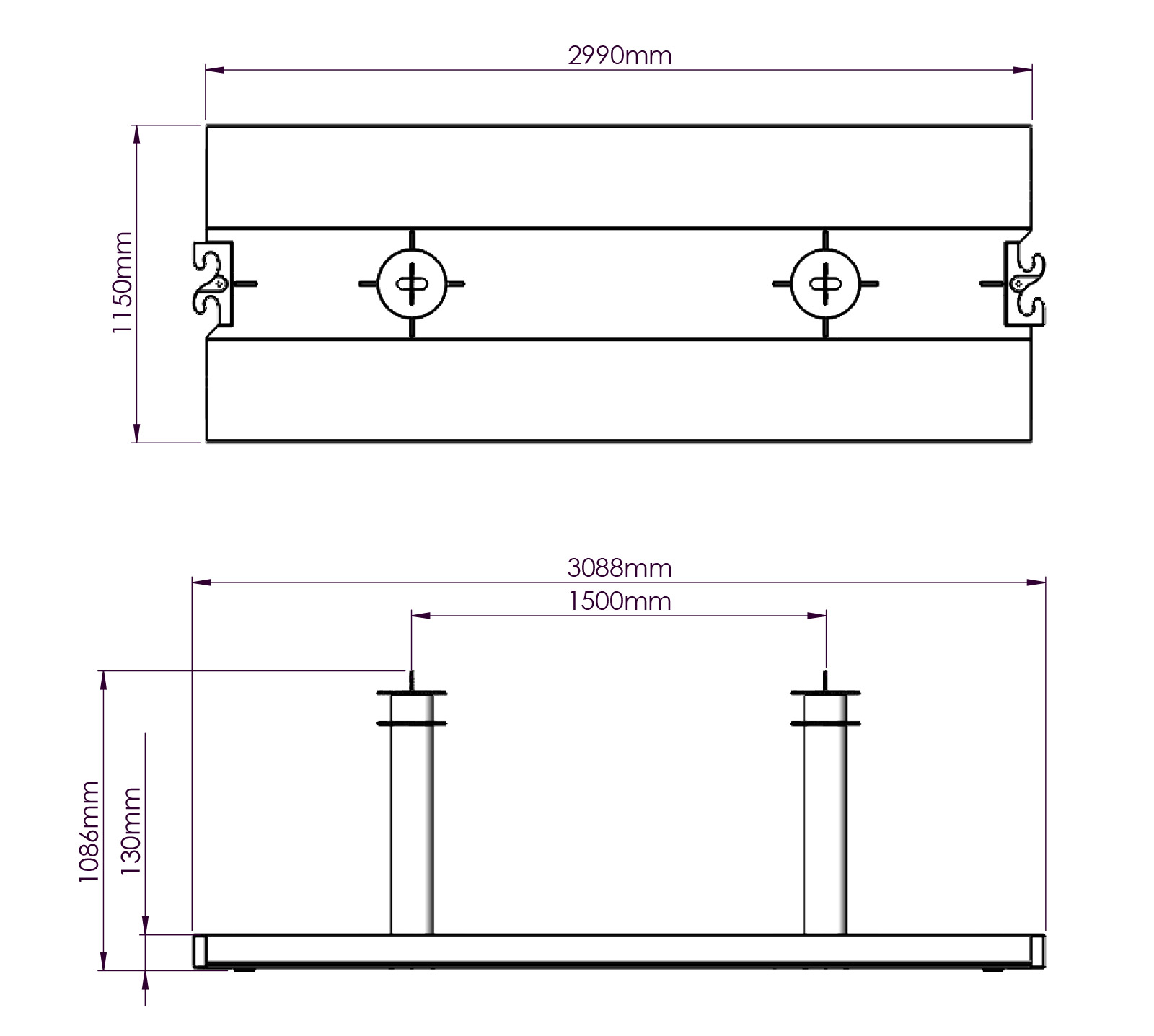

view technical drawing
SlipLoc Bollard



Downloads

SOP - Installation Rapid Stop Portable Bollards SOP - Rapid Stop Portable Bollards – End Plate



FAQ'S

(+)Expand All
The Rapid Stop Barrier is a form of protection for pedestrians and assets. Its portable nature lends itself to event and workzone applications, high risk terrorist areas and can also be used to protect assets such as gas, electricity and fuel.

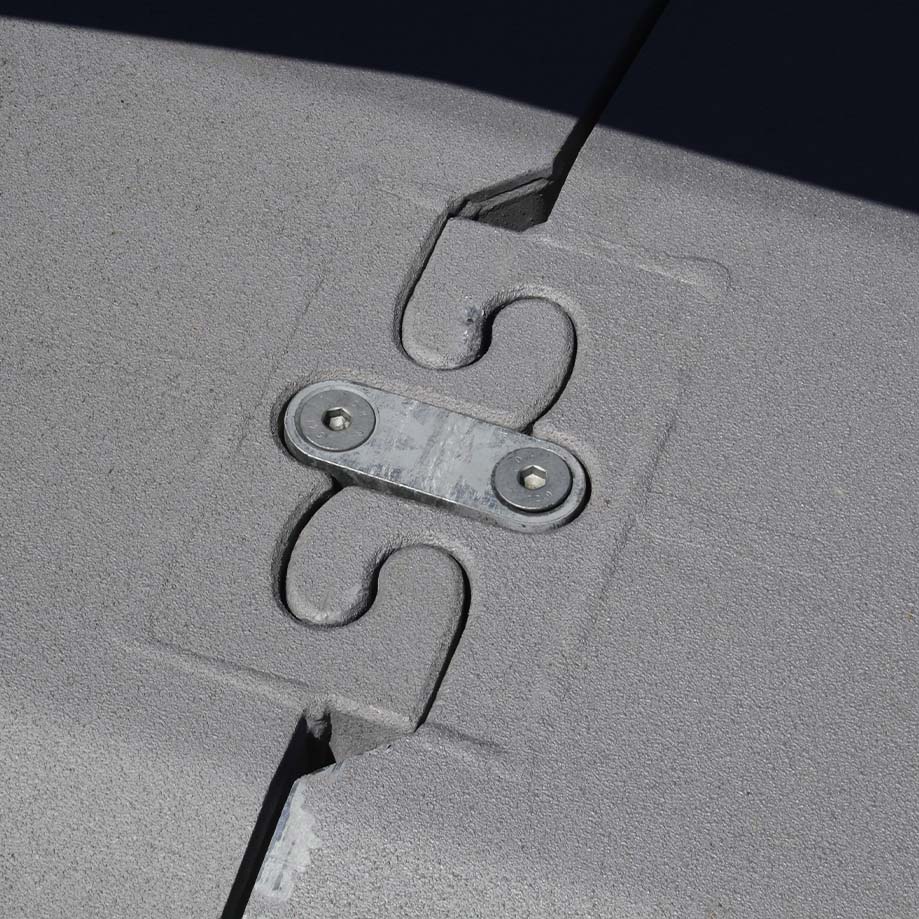

Installation of the Rapid Stop Barrier System is easy! Simply connect each unit on the ground, then bolt them together using the connector plate and bolts.
The Rapid Stop Barrier is available in any paint colour. Standard colours are usually galvanised steel, black, white, heritage green, yellow and blue. If there is a specific colour you require, please discuss with your local sales representative who can assist you further in your enquiry. Please Contact us for details.
Yes. The Rapid Stop Barrier can stop a 2,270kg pickup travelling at 60km/h (MASH compliant)
The Rapid Stop Barrier design has been computer simulated and engineered to withstand the design impacts, then has been proven by full scale crash testing. Other cheaper non-crash tested bollards may not perform as promised.
Please see the deflection results for Rapid Stop Barrier on the crash test page of this website www.TBA
The bollards are hot dip galvanised, then 2 pack painted. A slip resistant paint is also applied to the top surface.

Case studies

Portable Bollard System at the Block Open for inspections

The Block - Open for inspections

The Block 2019 fans were queuing in the cold overnight to ensure they had the chance to check out the the Oslo terrace houses, which were open for inspection on Sunday
Read more

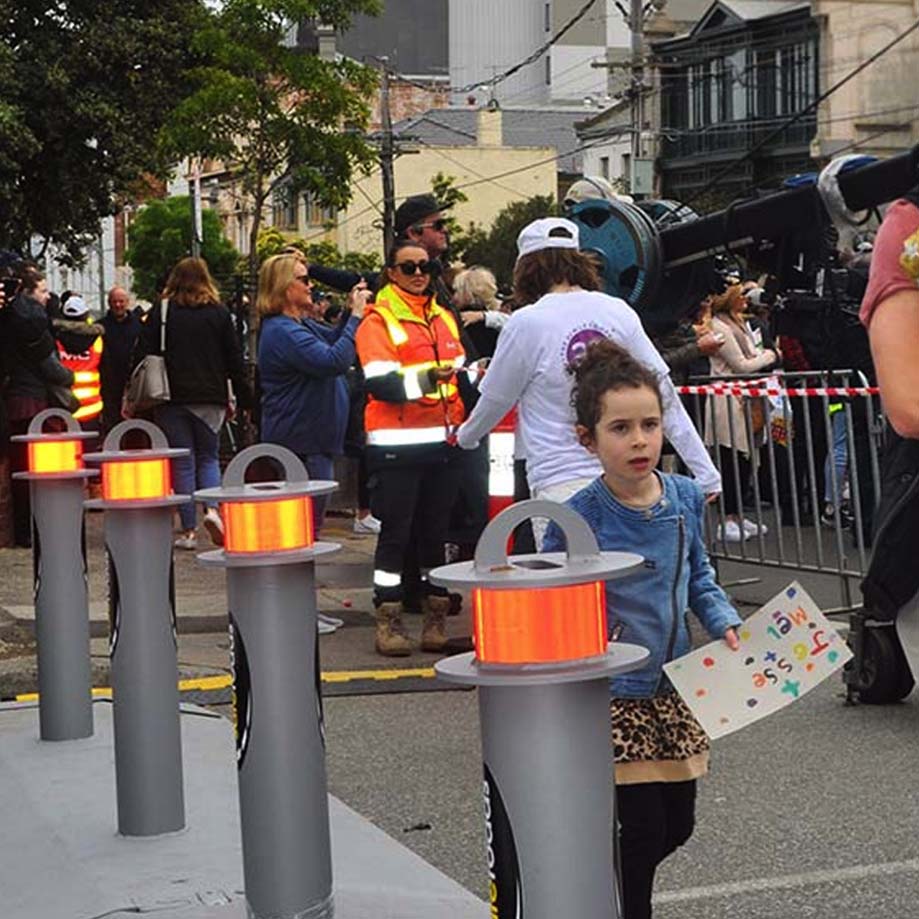

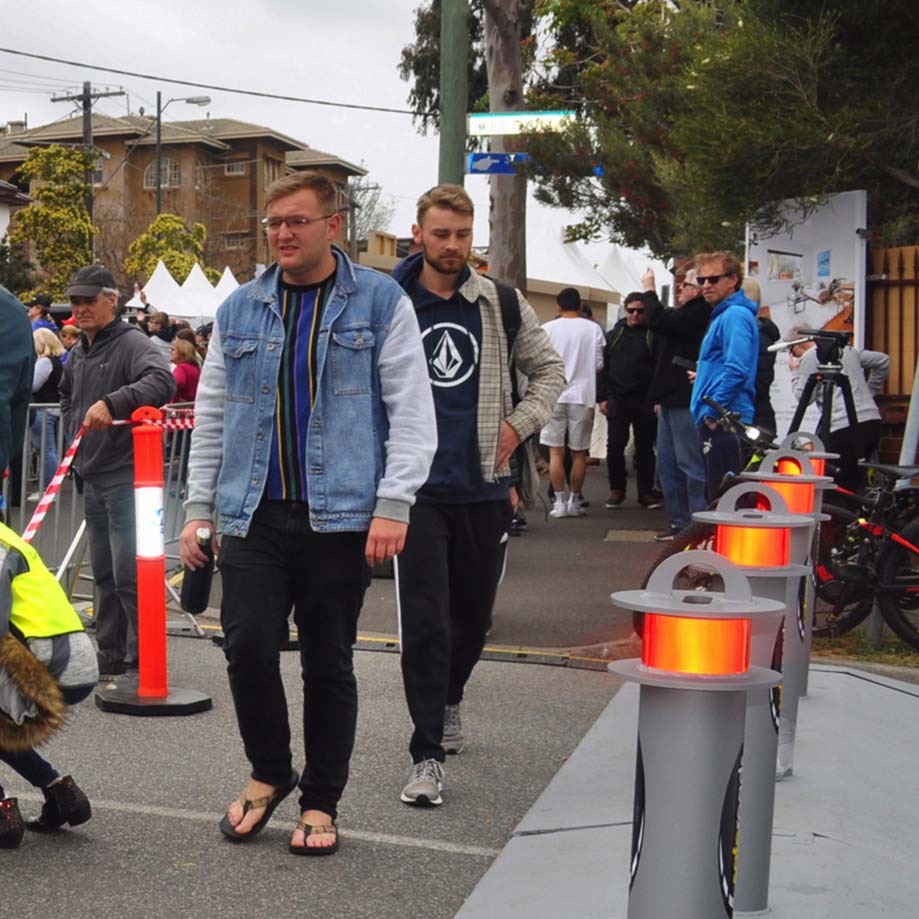

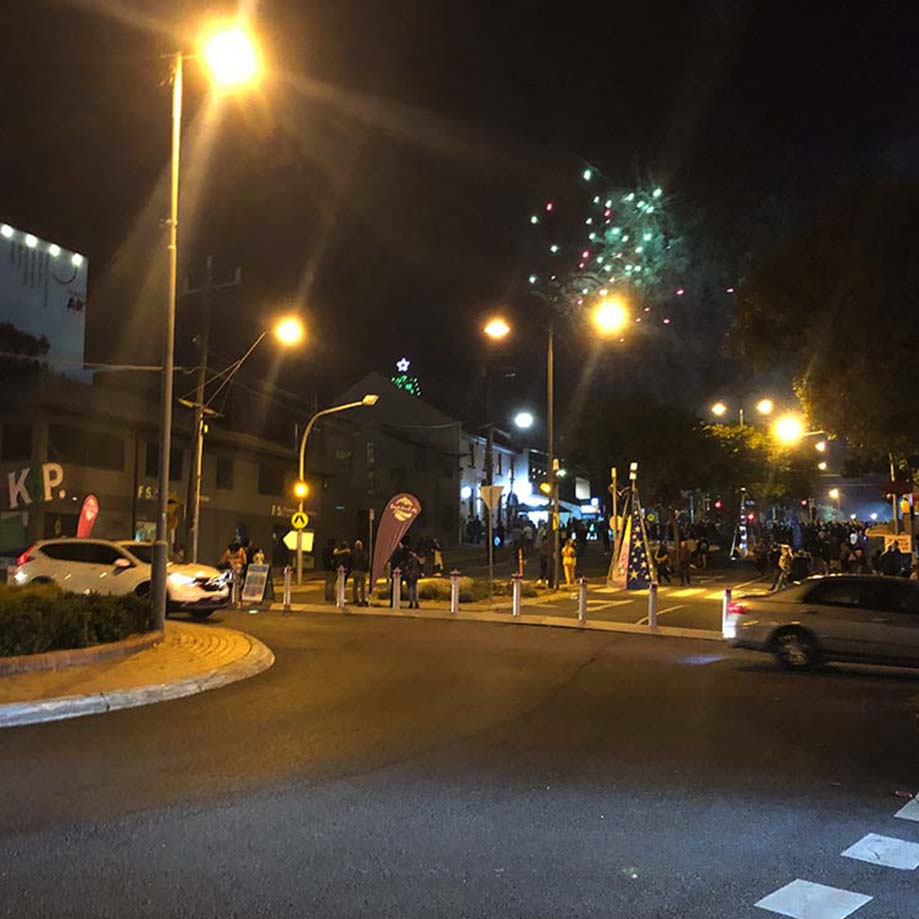

Saferoads Portable Bollard at Frankston Christmas Festival of Lights

Frankston Christmas Festival of Lights

One of Melbourne’s largest and most iconic street festivals, needed to ensure the protection the crowds enjoying the event.
Read more
