30W Delta Promenade Pole

30W Delta - Promenade Pole

Traditional and attractive

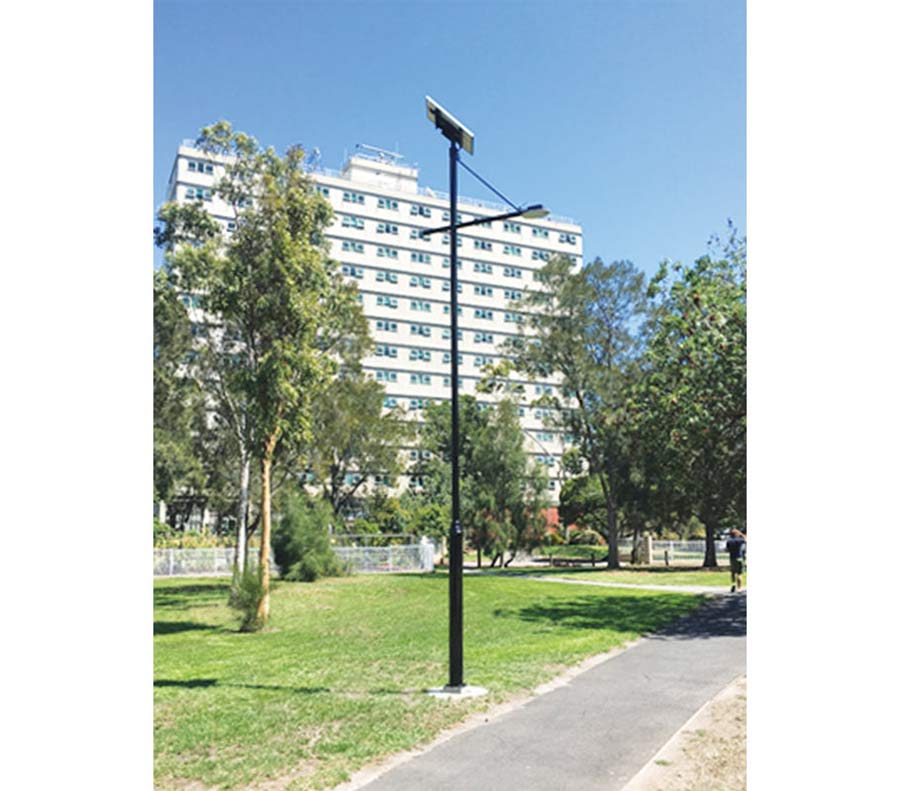

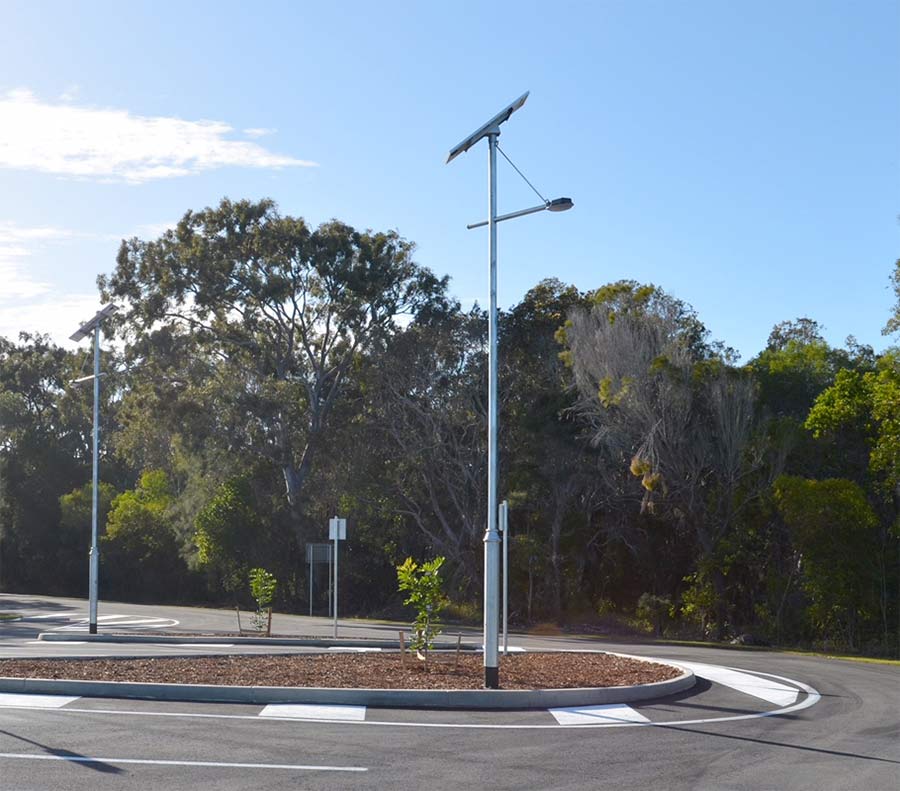

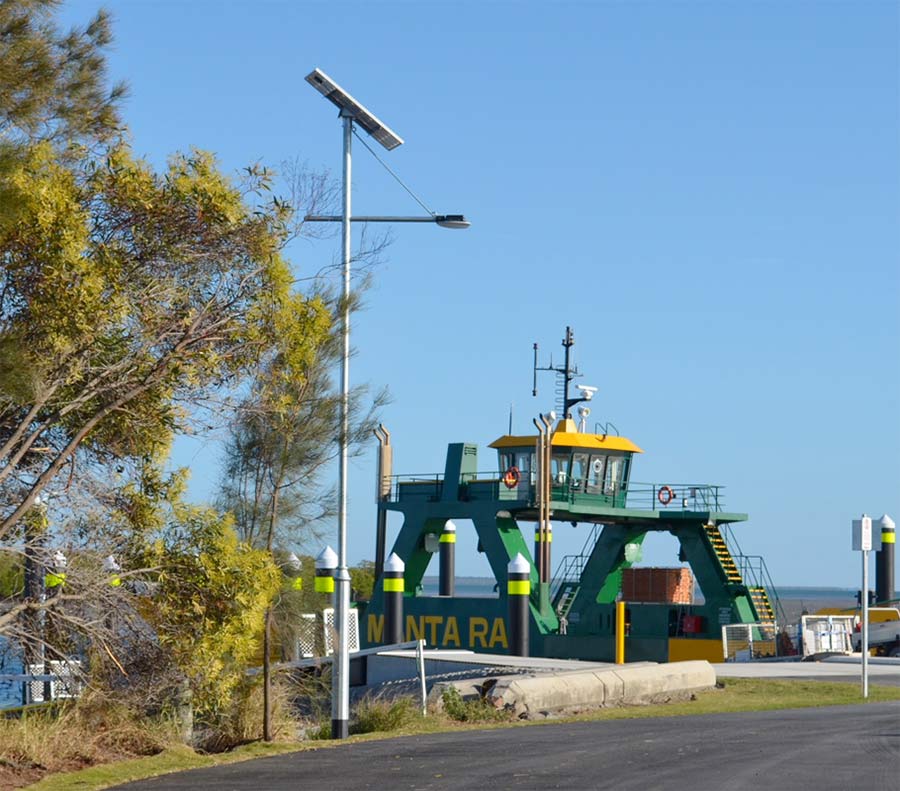

For parks, neighbourhoods and other areas where you want a traditional and attractive solution, choose our 30W Delta solar light and Promenade Pole.

The 30W Delta Solar Light is the perfect way to implement solar lighting whilst complementing the surrounding area. The 5.5m Promenade Pole offers a decorative style that always complements the surrounding area.

  • Decorative style with customised paint options
  • Solar panel can be faced in any direction to optimise sunlight
  • Mono-crystalline solar panel
  • Built in lithium-ion battery storage
  • Automatic day and night mode controlled by PE cell
  • Batteries housed within the LED light head

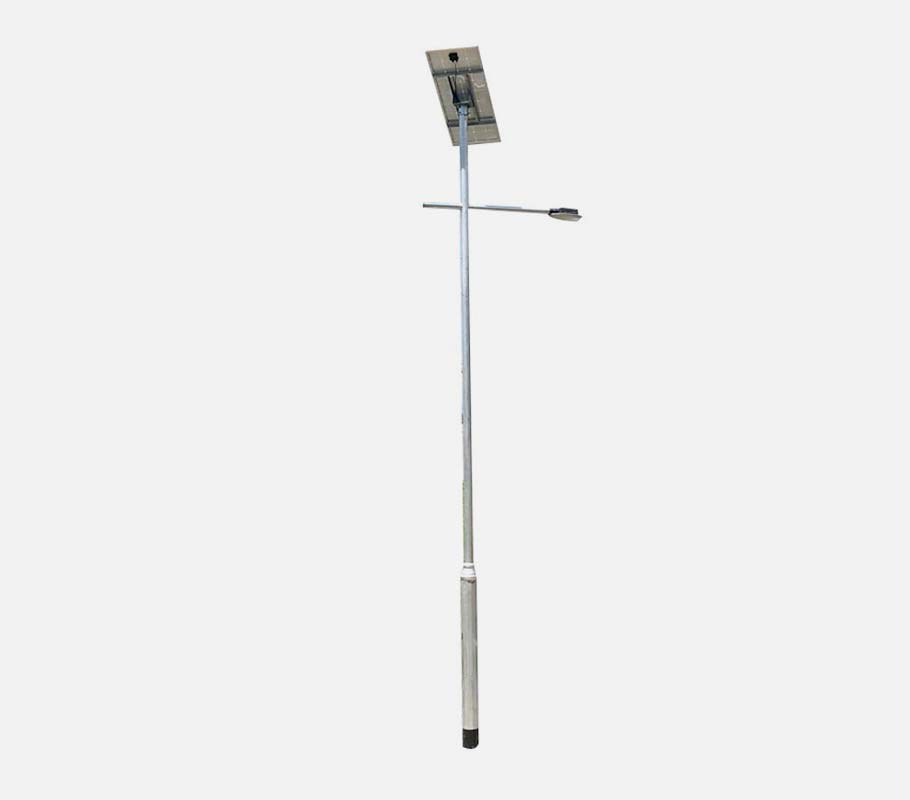

  • 5.5m Promenade light pole with single outreach
  • Surface or in-ground mount options for easy installation
  • Wind rating: Region C
Buy Online
Need to order a large quantity? Enquire now


Solar Lighting

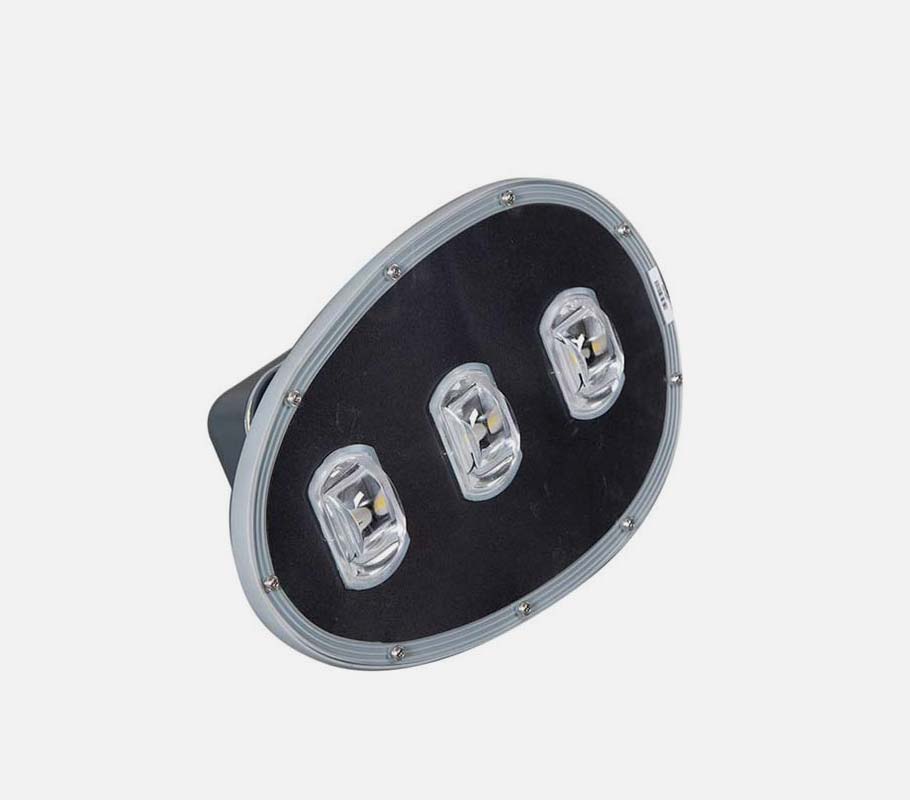

Light Head Variants Symmetrical/Asymmetrical
Power Consumption 30W
CRI Ra≥80
Luminous Flux 3180lm(6000K)
Luminous Efficacy 106lm/W(6000K)

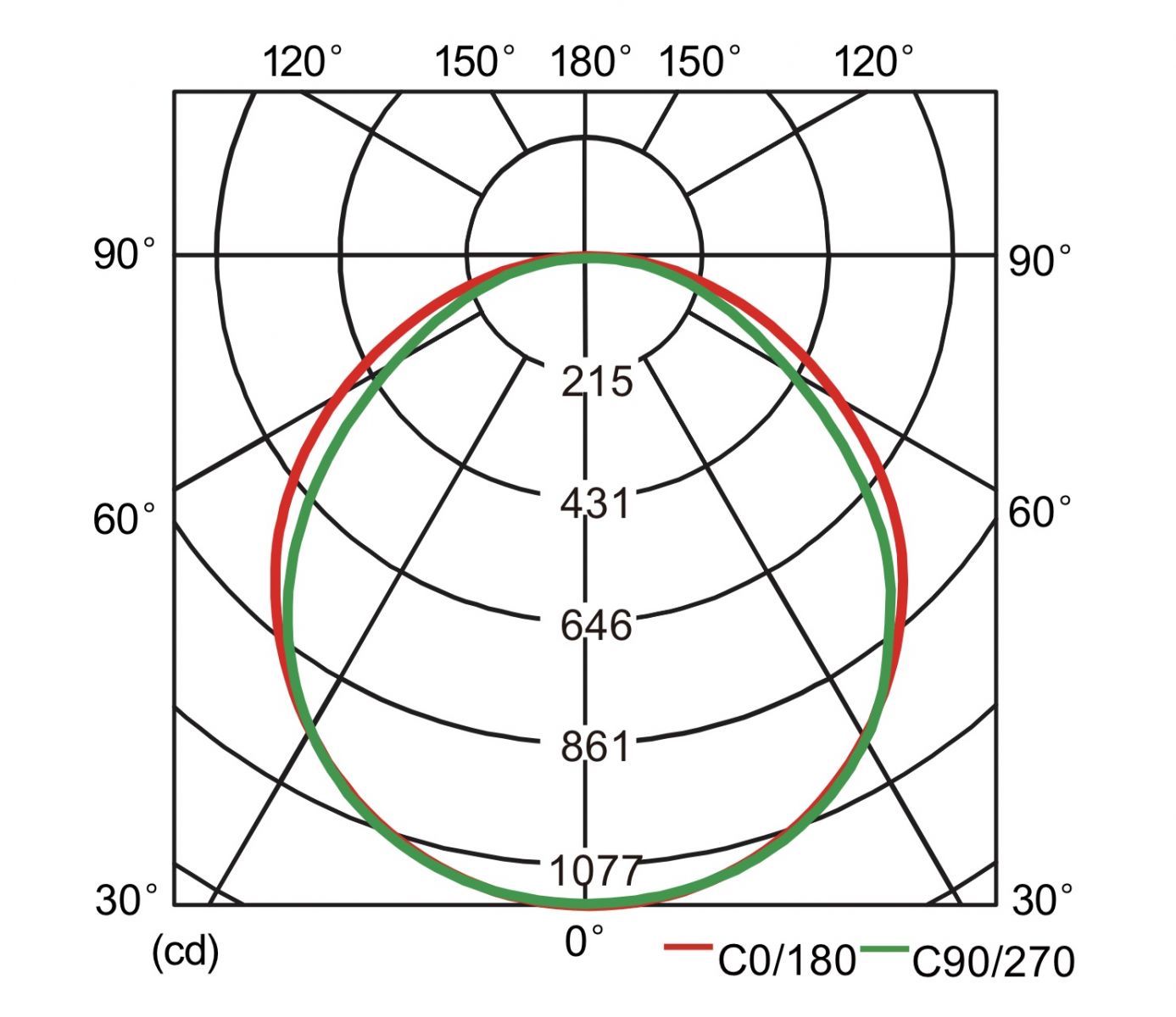

Beam Angle 120°
Lighting Duration 30hrs*1
Time to fully charged 8hrs*2

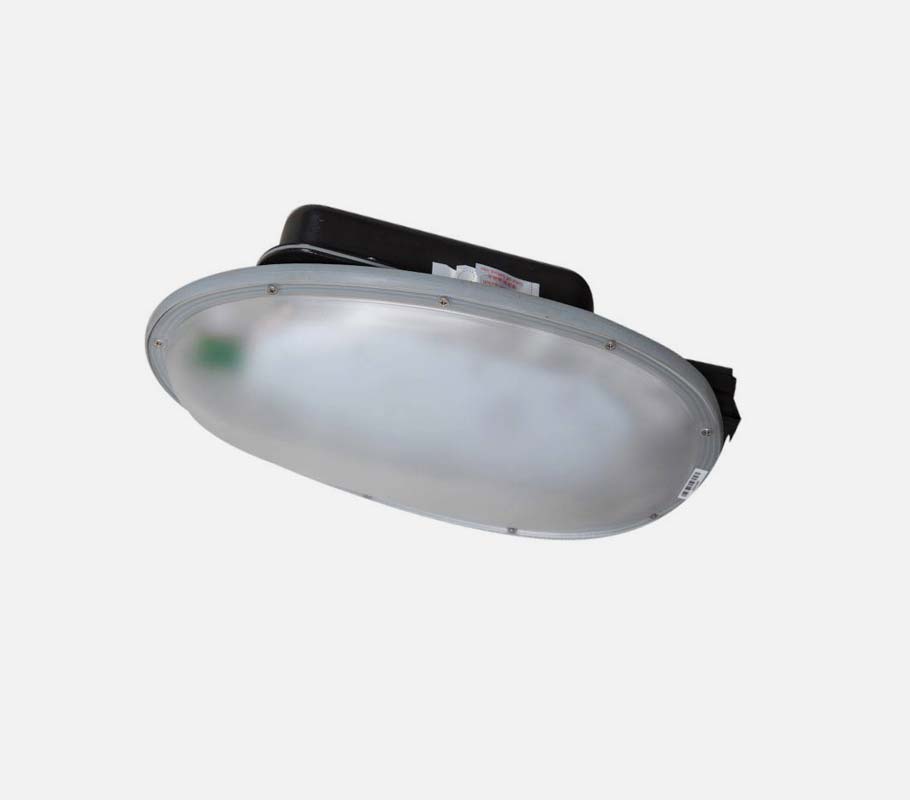

Luminaire Material Aluminum
Luminaire Weight 2.8kg/6.17lb
Solar Panel Weight 7.35kg/16.20lb
Battery Position Built-in on the luminaire
Battery 14.8V 15Ah, Internal
Operating Temperature -25°C~+45°C, -13°F~+113°F
Warranty 5 years

Battery Specifications:

Nominal Capacity 15000mAh
Battery cell Lithium battery
Battery Life 3yrs
Cycle Life 1000 times
Maximum Charge/ Discharge Current 5000mA
Standard Discharge Current 2000mA
Nominal Voltage 14.8V
Max Charge Voltage 16.8V
Discharge Cut-off Voltage 12.0V
Overcharge Detection Voltage 4.25V±0.025V
Overdischarge Detection Voltage 2.5V±0.1V
Overdischarge Detection Current 7A~15A
Relative humidity 10%~90%

Solar Panel Specifications

Maximum Power (Pmax) 60Wp / 90Wp
Maximum Power Voltage (Vmp) 18V
Maximum Power Current (Imp) 3.33A
Open-Circuit Voltage (Voc) 21.4V
Short-Circuit Current (Isc) 3.78A
System Voltage 1000V

Mechanical Characteristics

Solar Cell Mono125×78mm
Number of Cells 36 (4×9)
Dimension 765×550×35mm / 1196×550×30mm
Frame Aluminum alloy
Surface Glass 3.2mm, High Transmittance, Low Iron, Tempered Glass

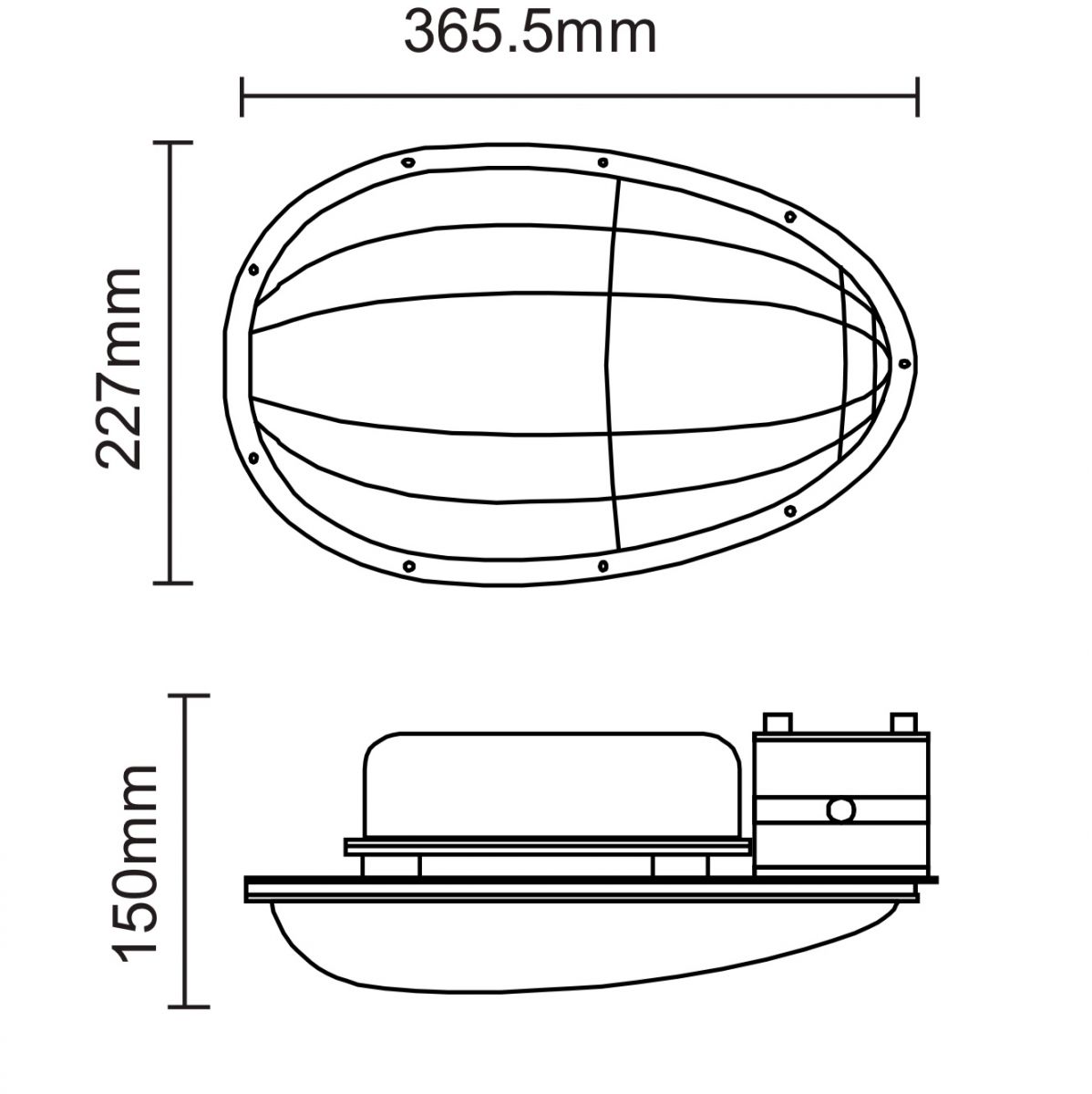

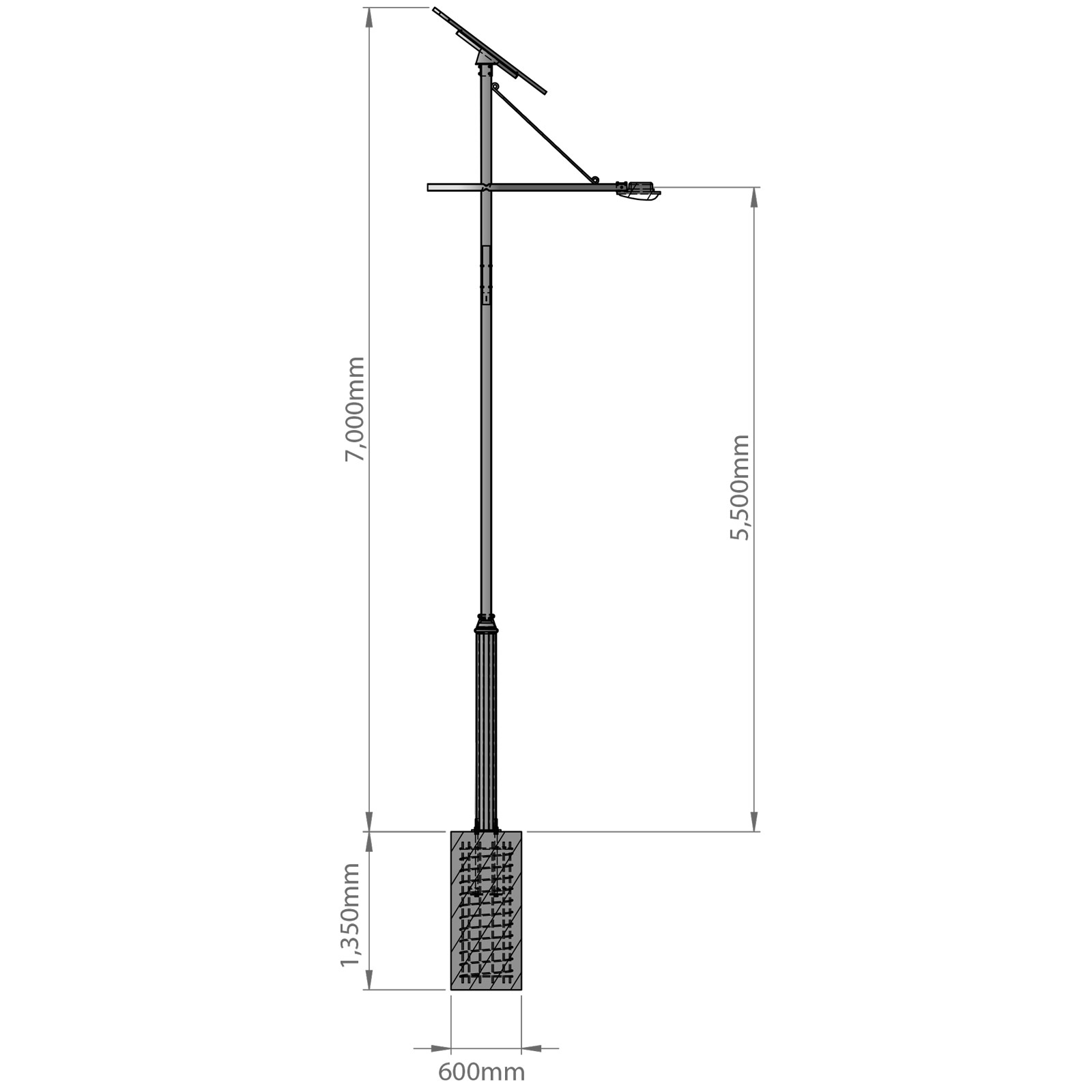

Solar Lights Pole technical drawing
Solar Lights Pole technical drawing
Solar Lights Panel technical drawing

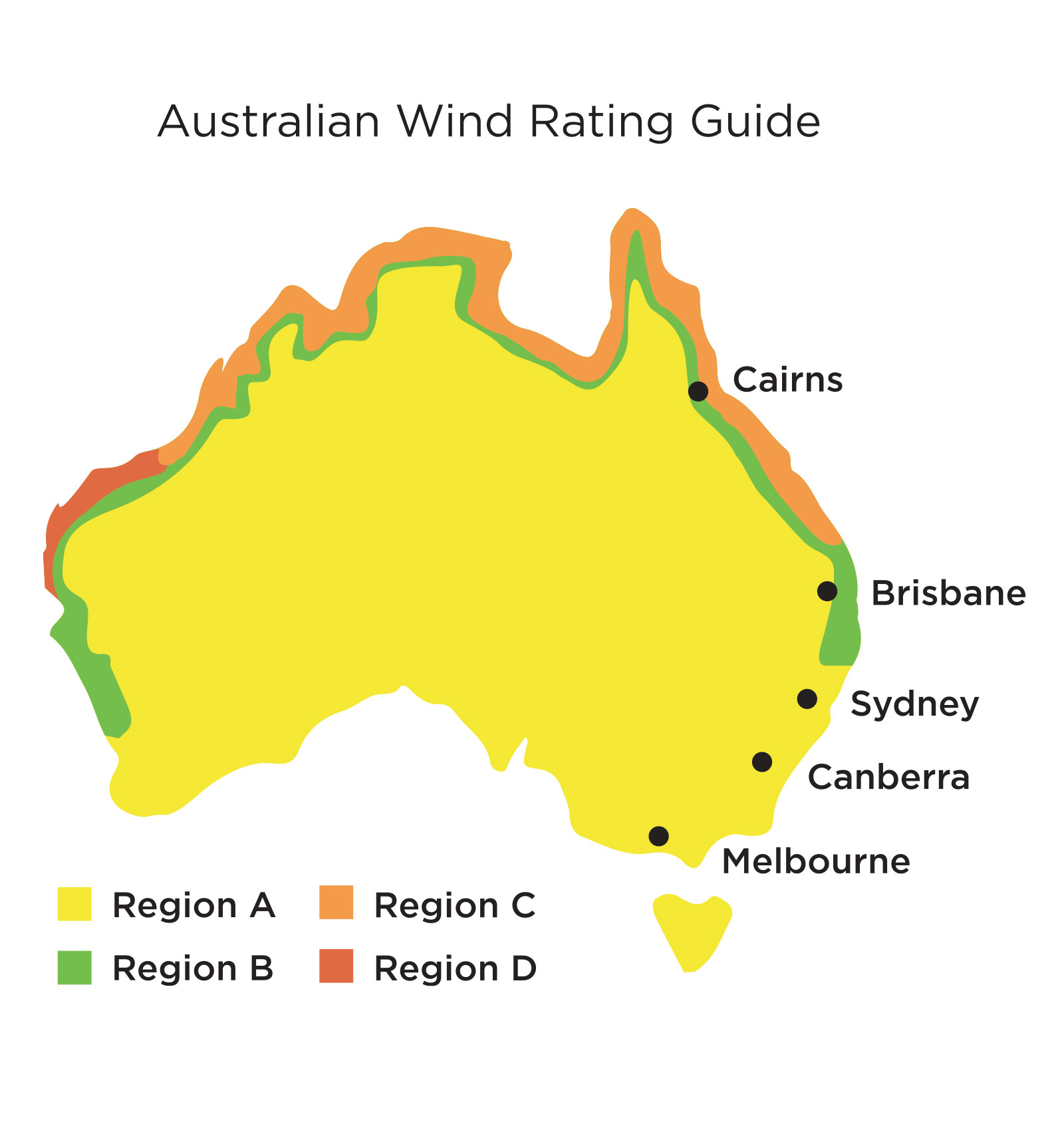

Australian Wind Rating Guide


Warranty: Light Fitting Warranty: Light Pole
IES File
*Please note this file will only open using programs such as Dialux, AGI32, or Relux.

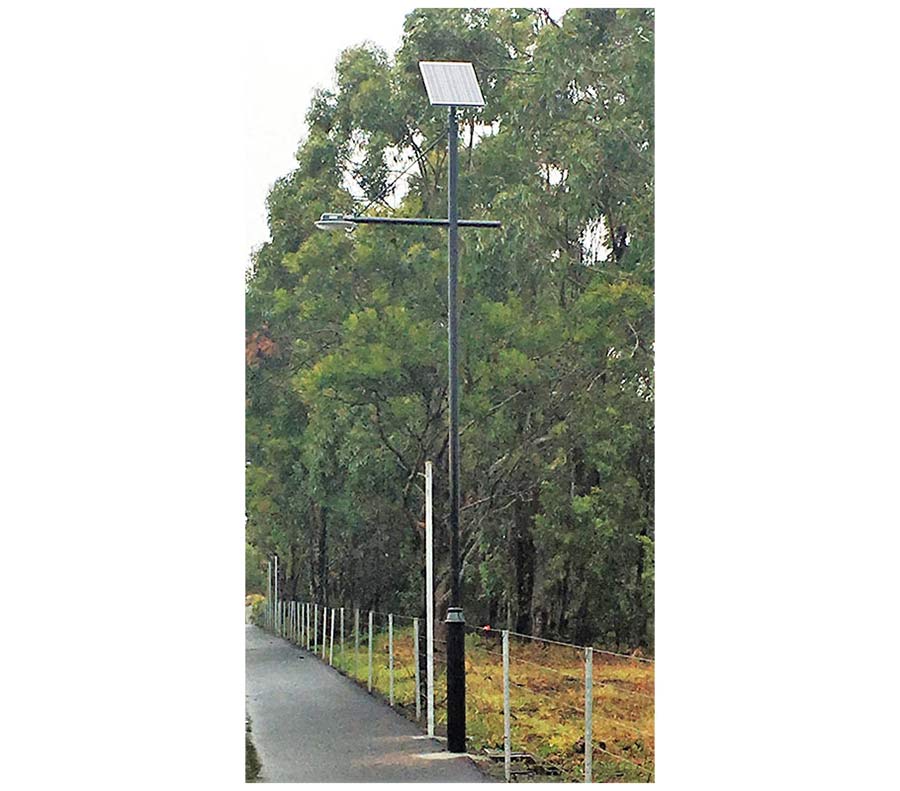

Case studies

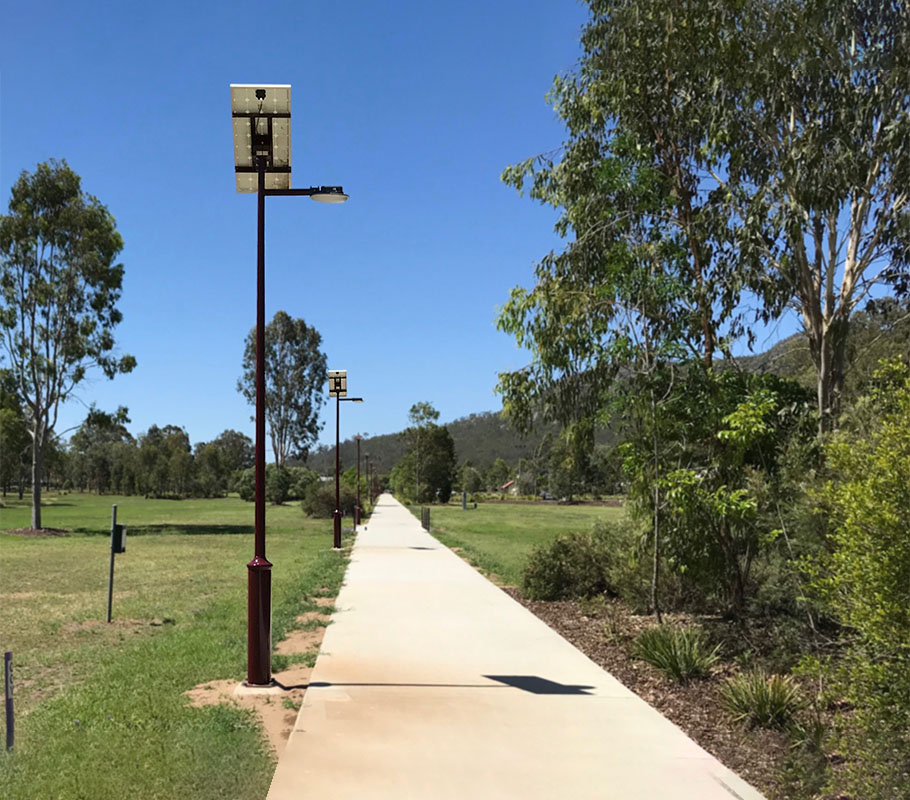

30W Delta Solar Promenade Light Pole

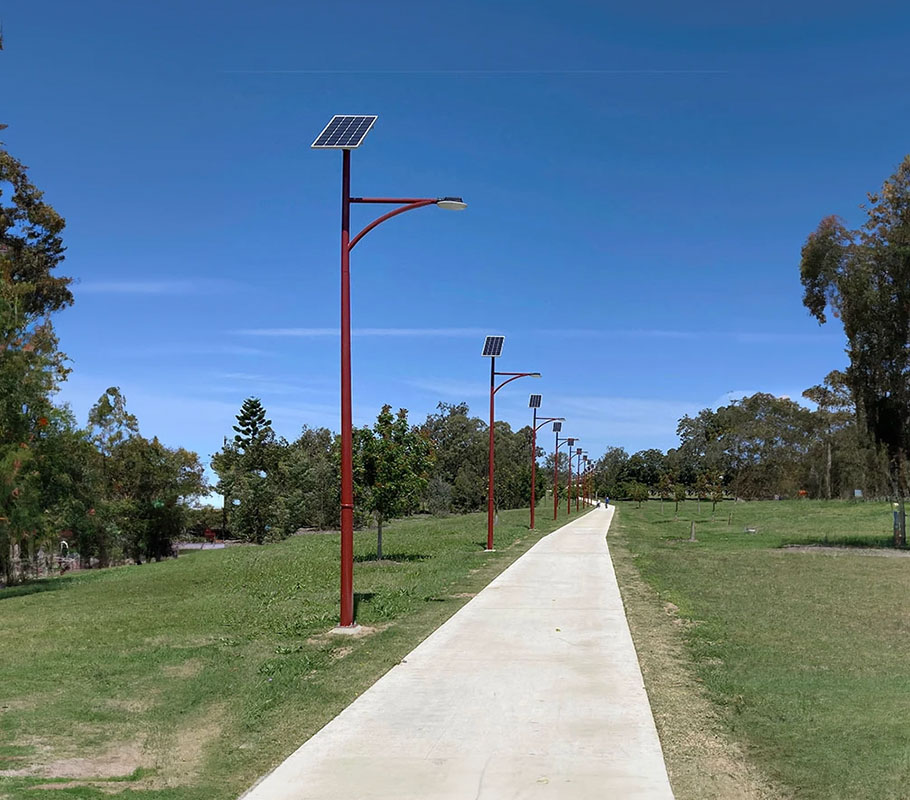

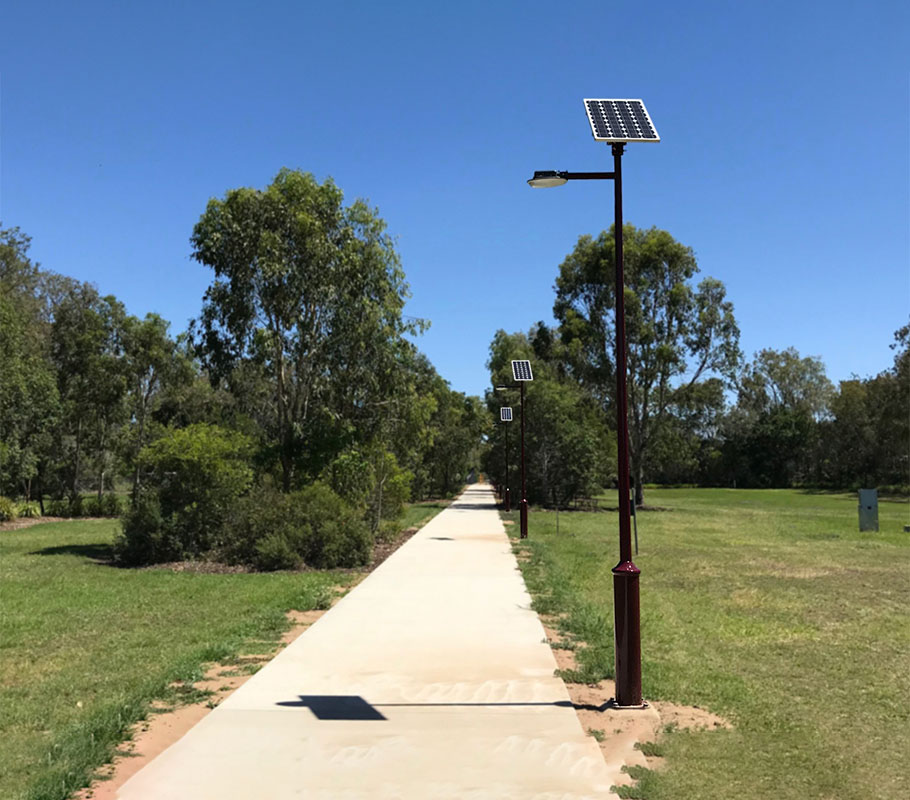

Somerset Council

Featuring 30W Delta Solar Lights

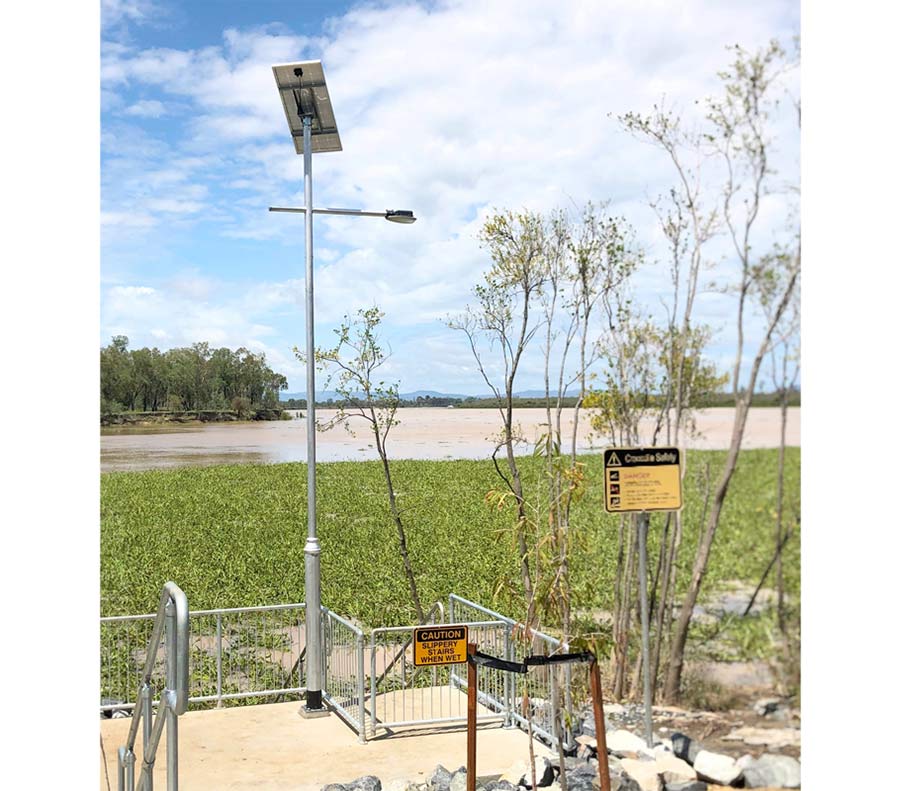

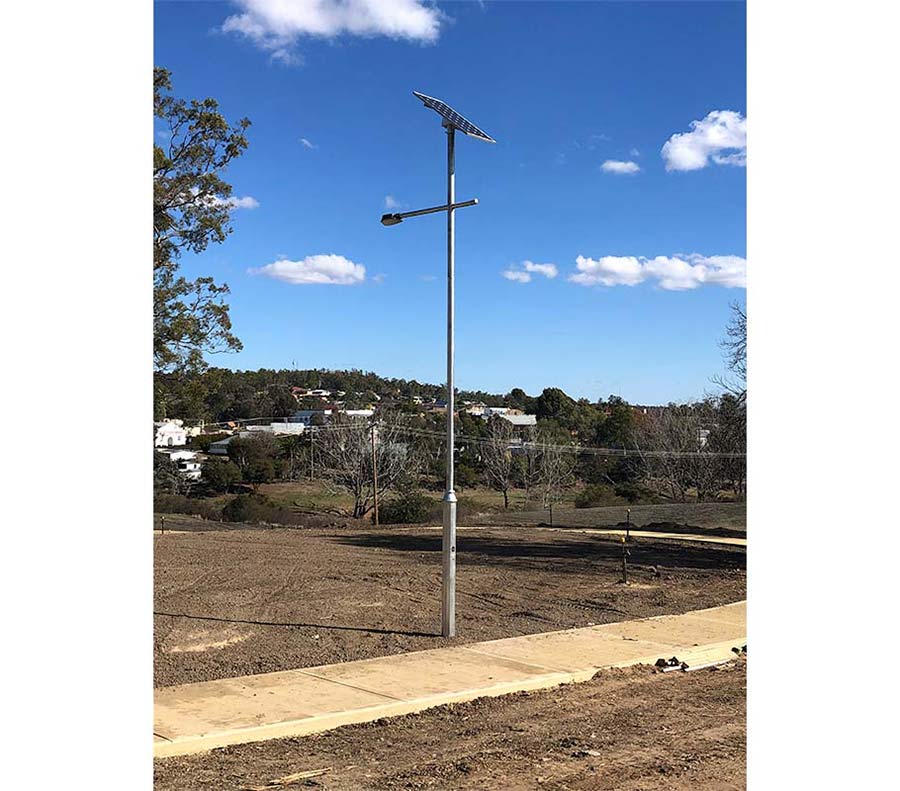

Solar Lights Installed at Gympie Regional Council

Gympie Regional Council

Featuring Delta 30W Delta Promenade Pole lights.
