100W Ultra - Telescopic Pole

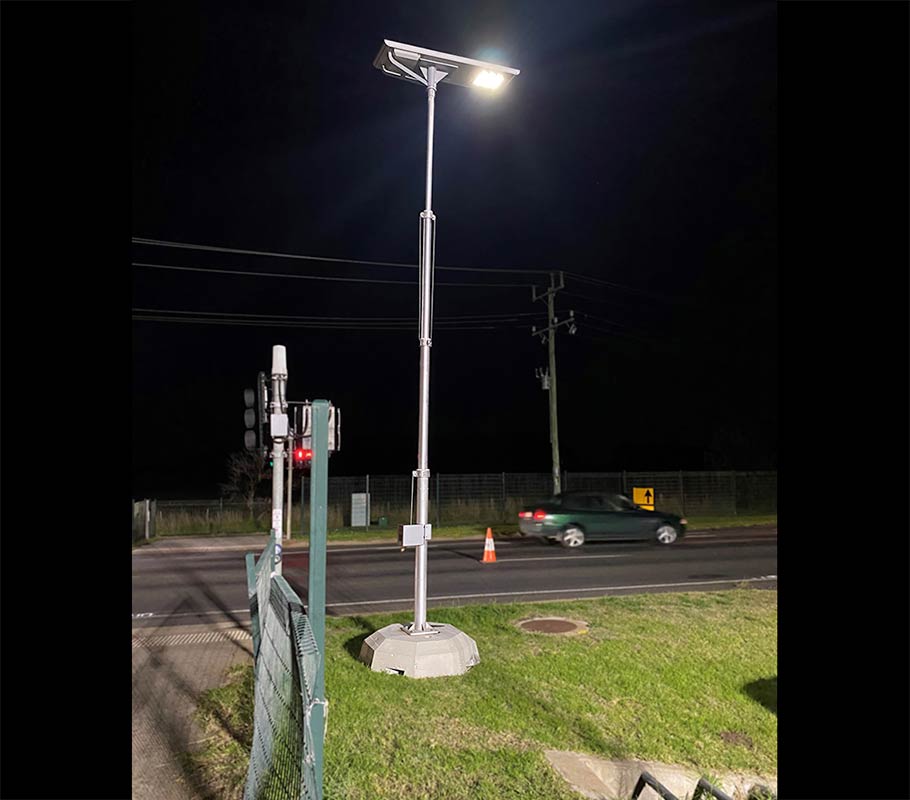

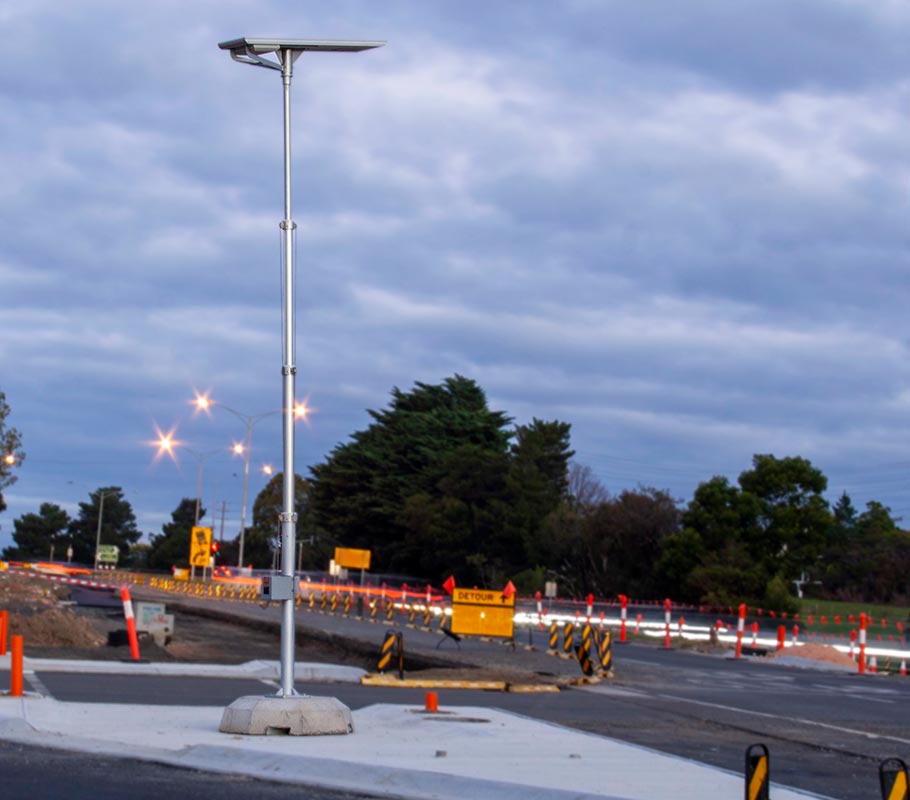

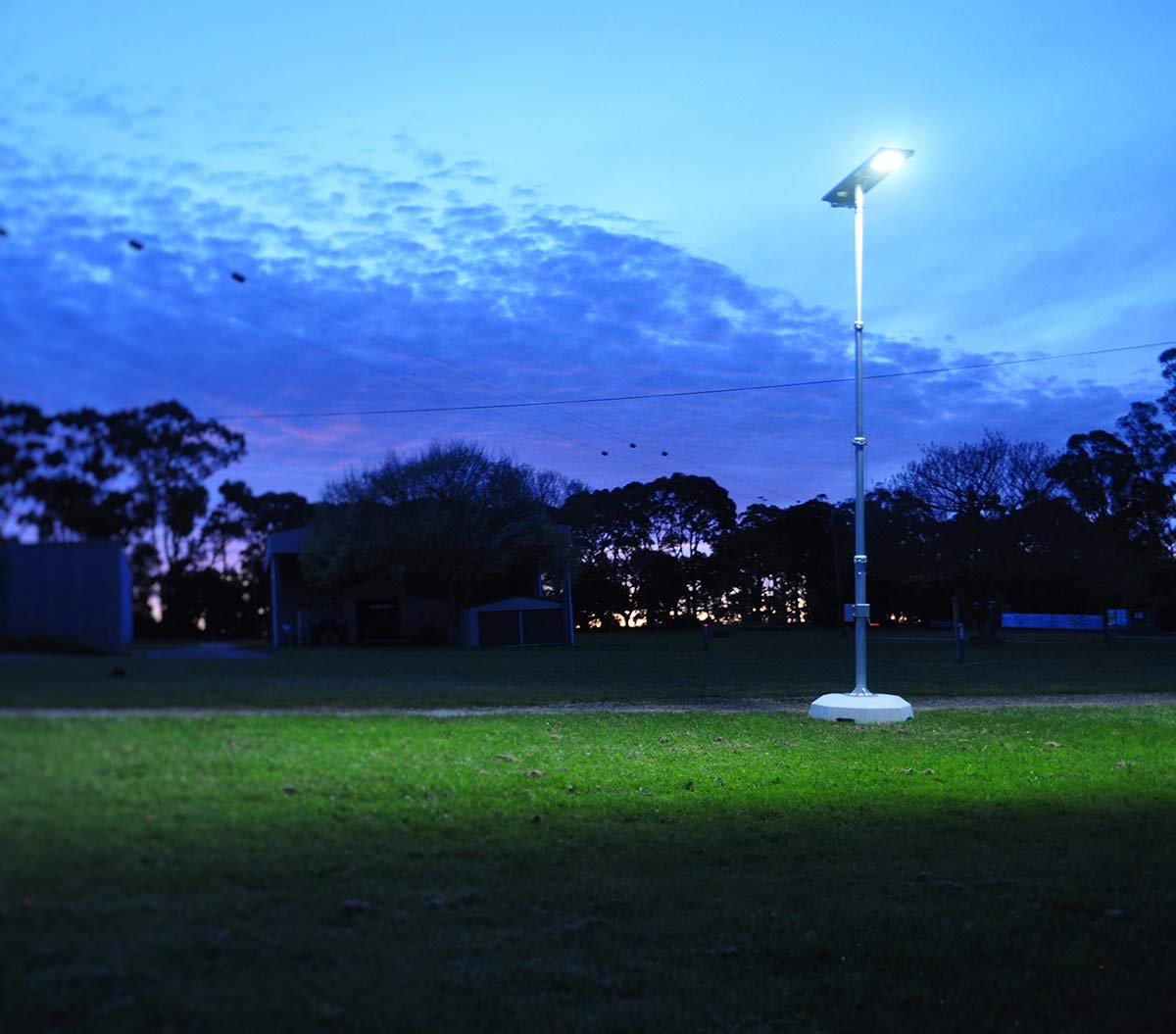

 Telescopic Light Pole

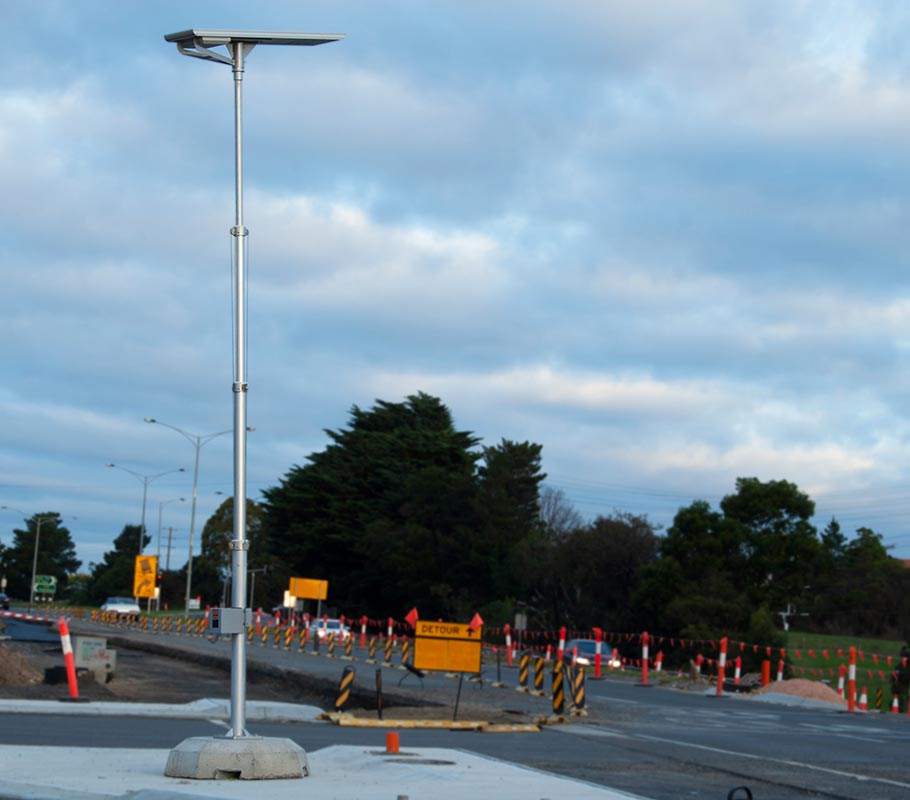

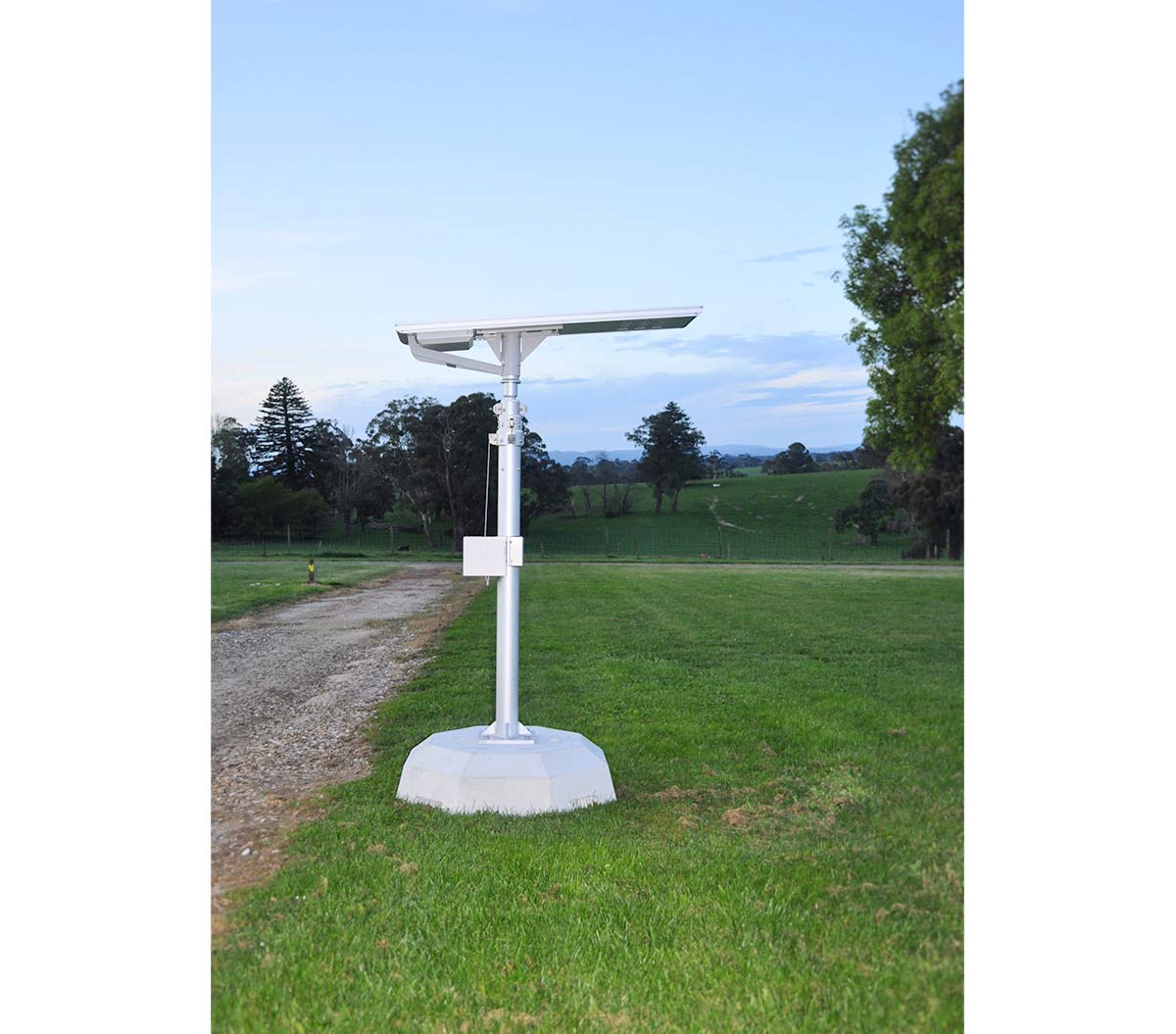

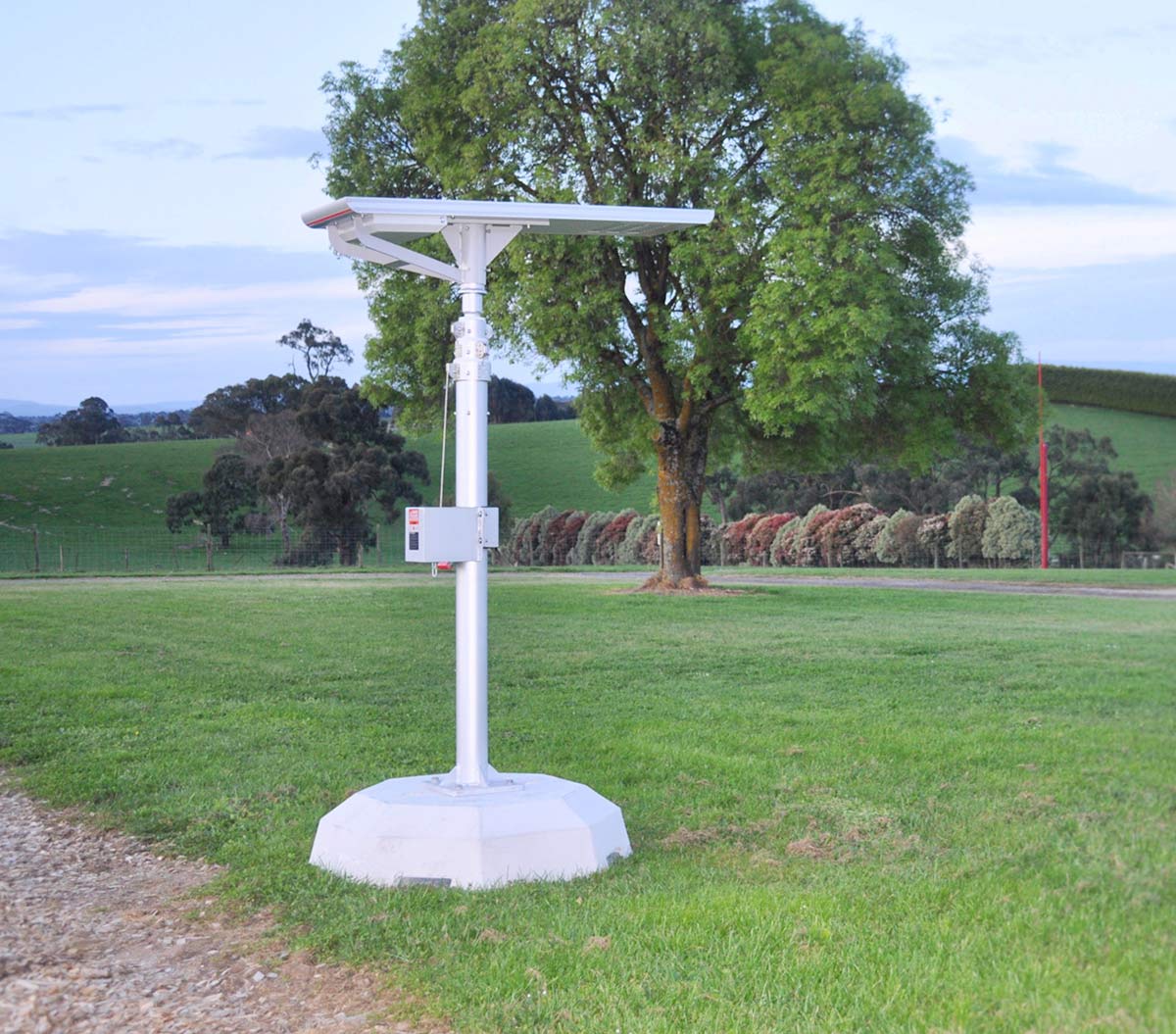

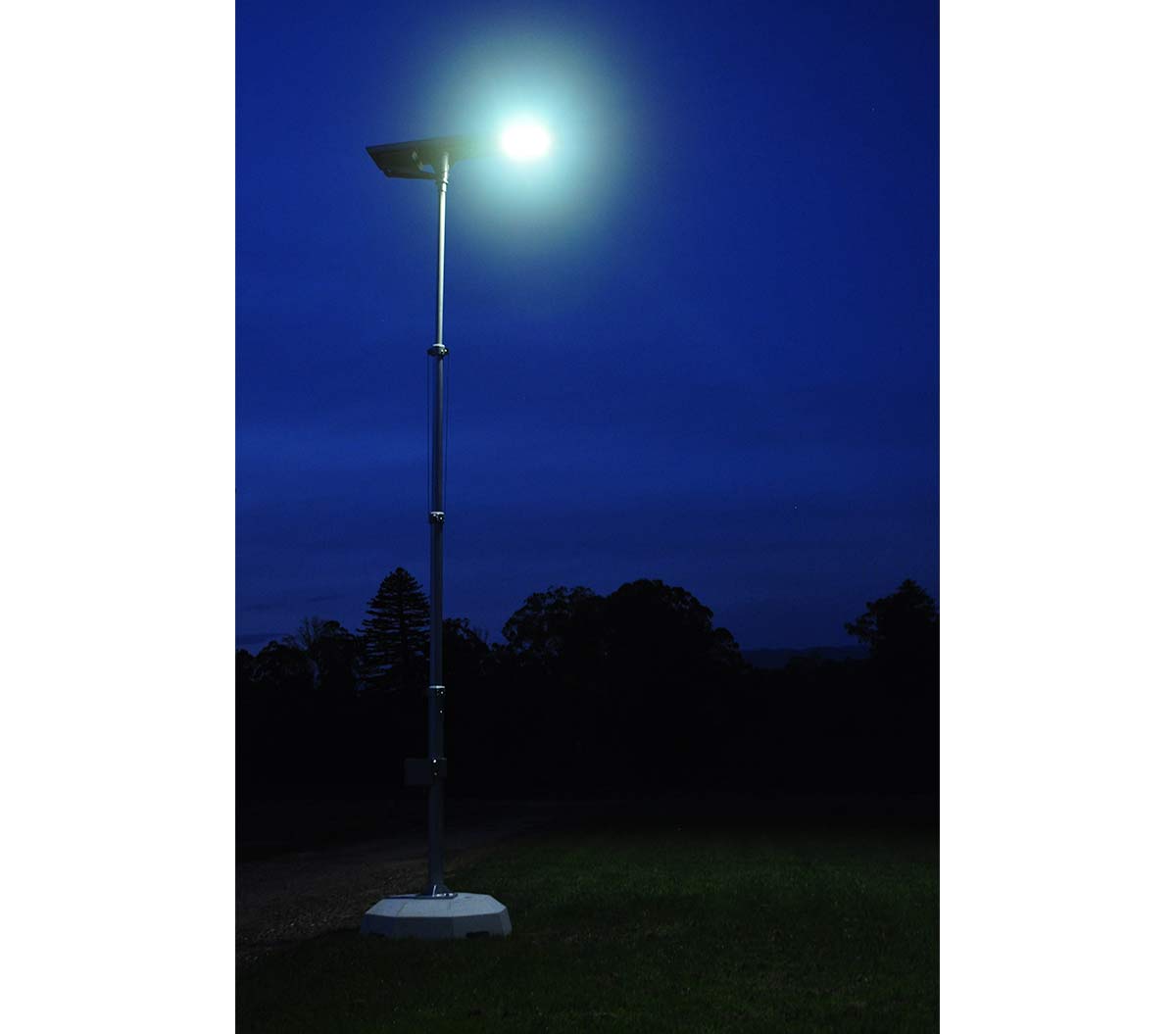

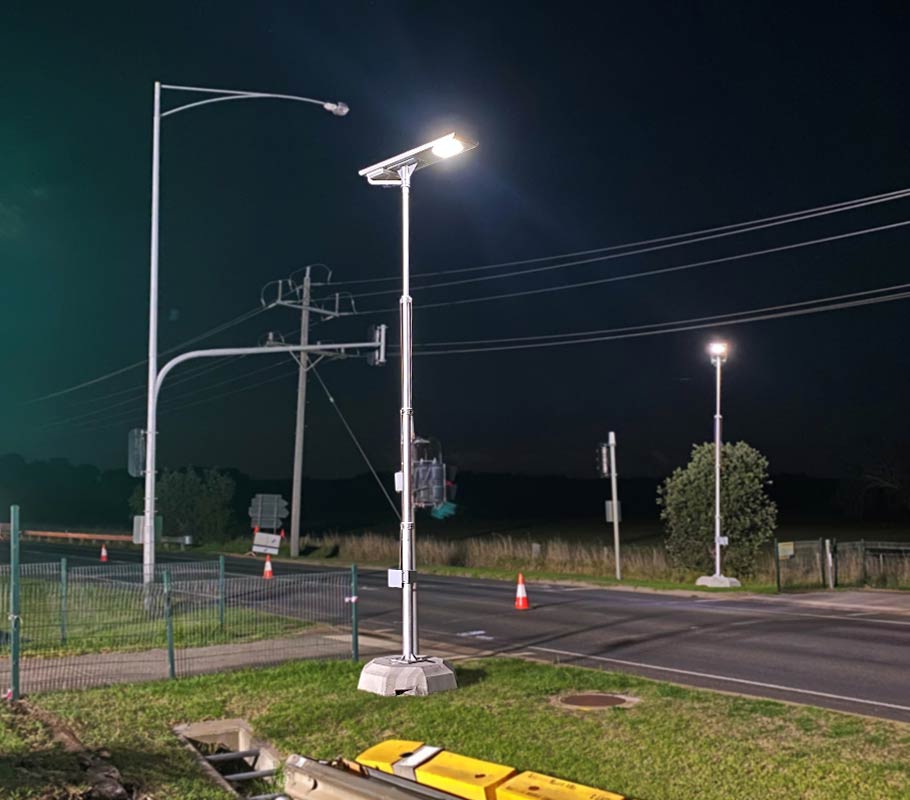

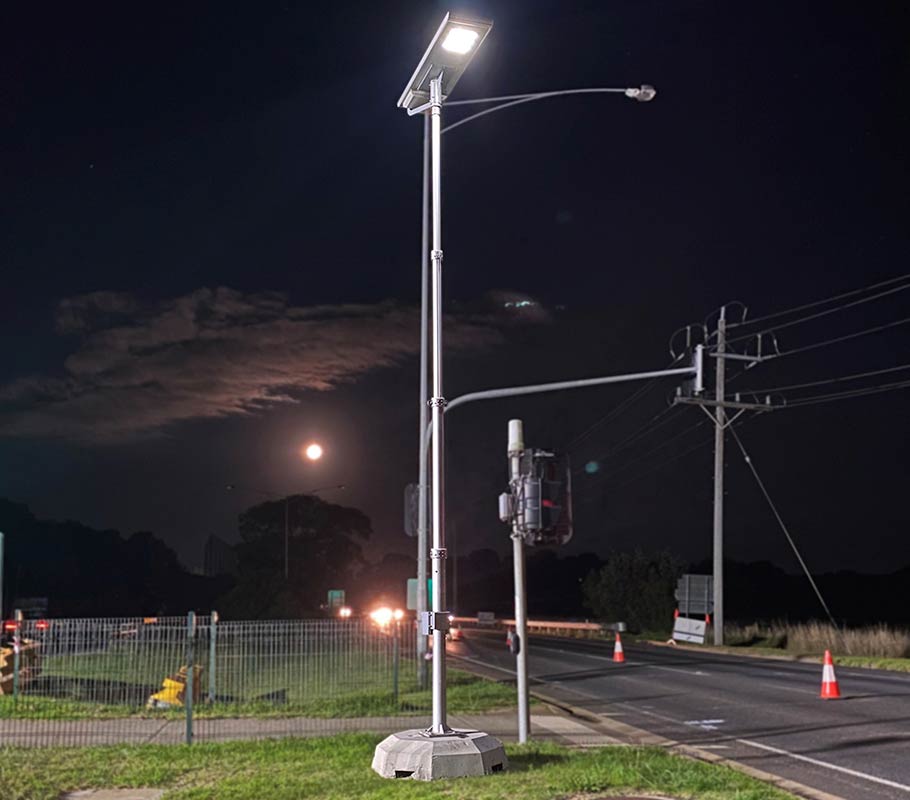

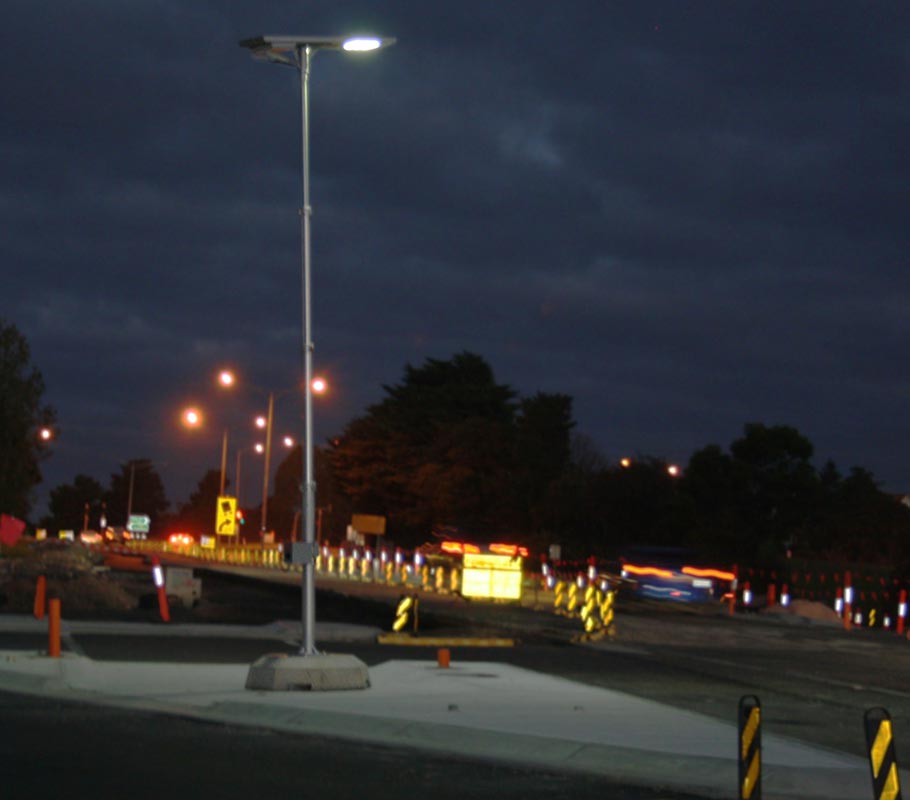

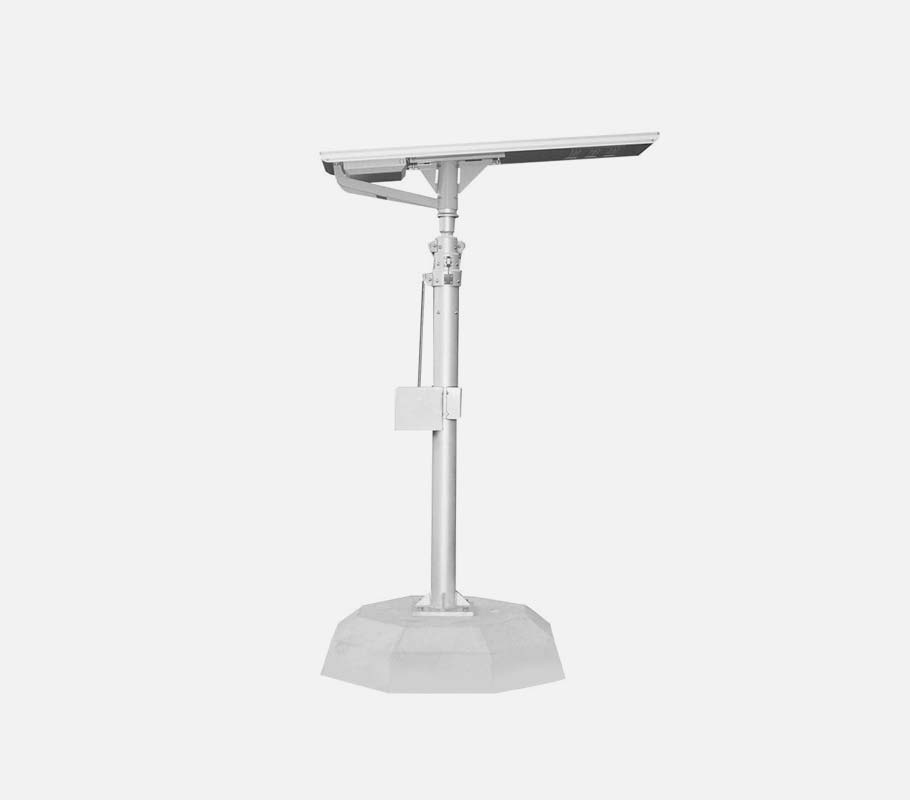

The 100W Ultra Solar Light with the Telescopic Light Pole is superior in terms of speed and ease of transport and deployment.

This popular solar lighting solution is completely portable and features a powerful 100W solar light fitting. Deployment is a breeze with the Telescopic light pole, which can be winched from lowered to raised position in under two minutes. The concrete base makes this solar lighting solution extremely sturdy. It is wind rated for Region A with the single concrete base option, and Regions B and C with the double concrete base. Mobility is not an issue thanks to the intuitive construction and built-in options for lifting.

  • Fully portable

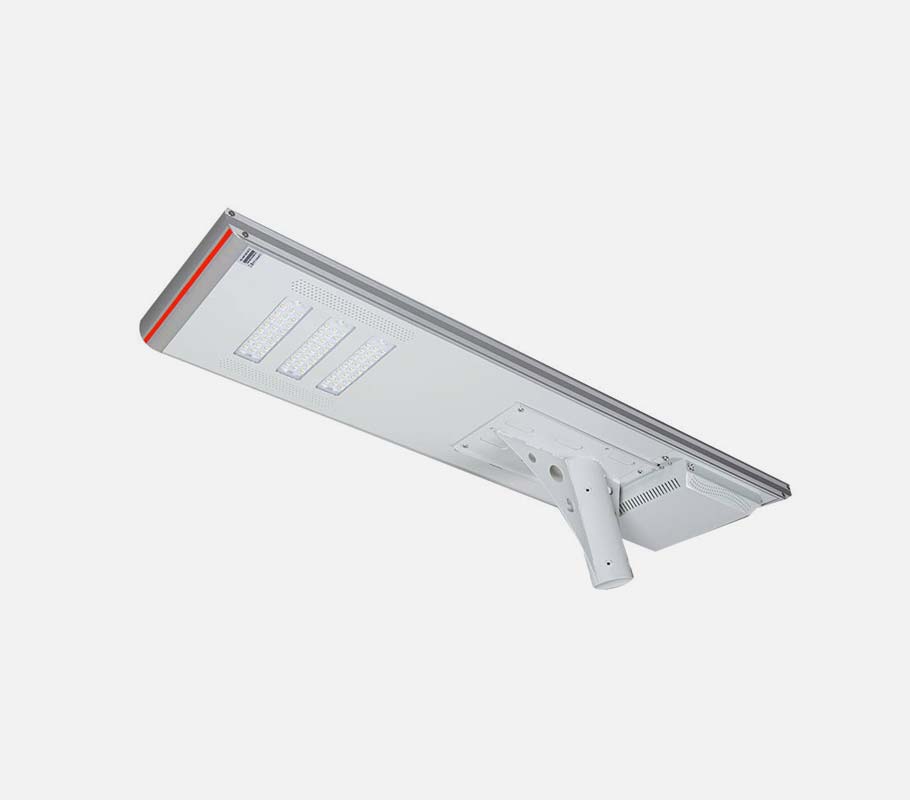

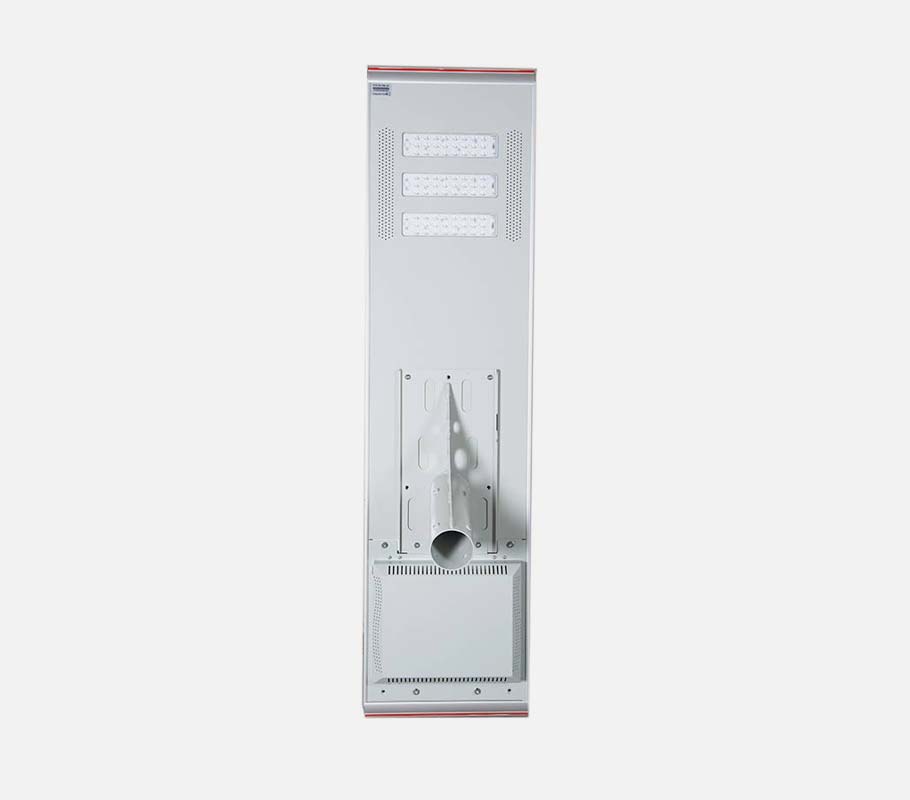

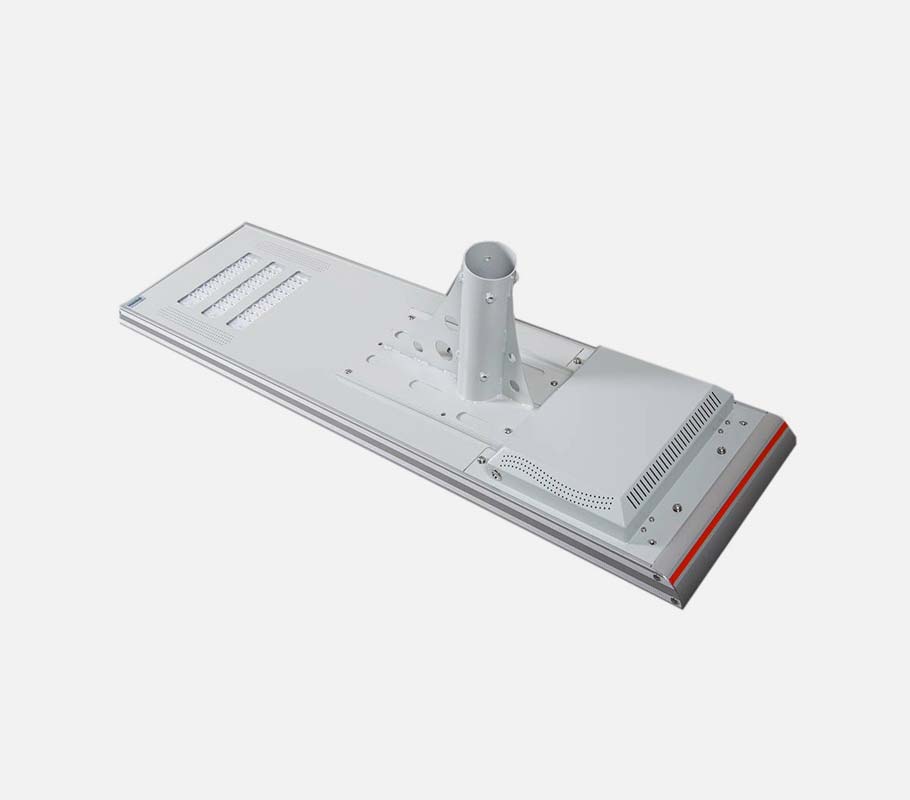

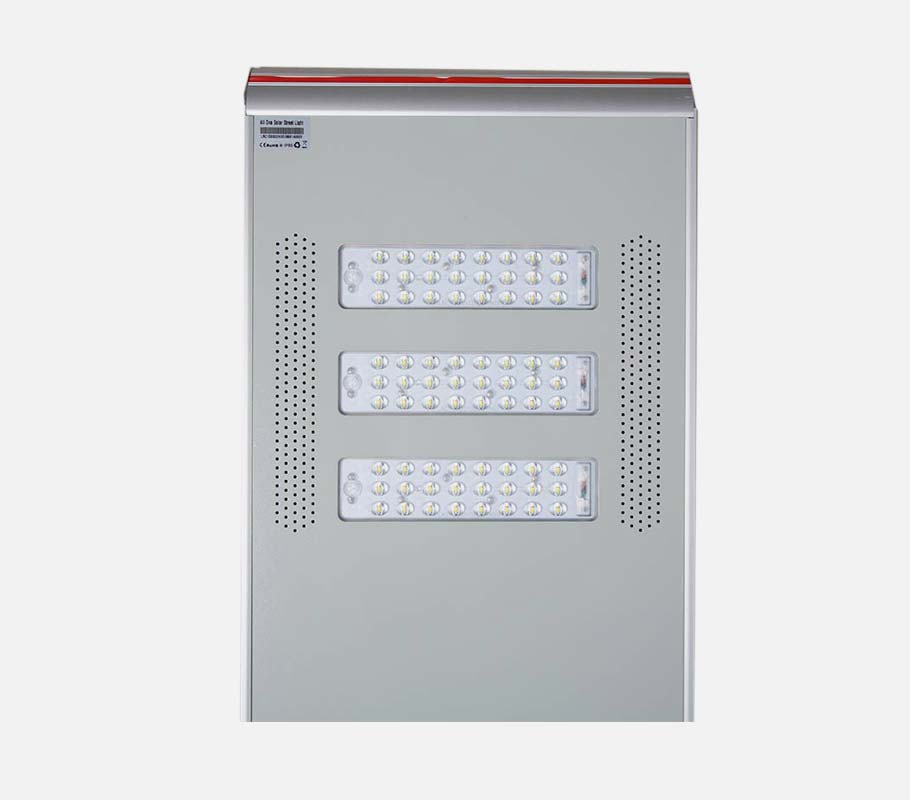

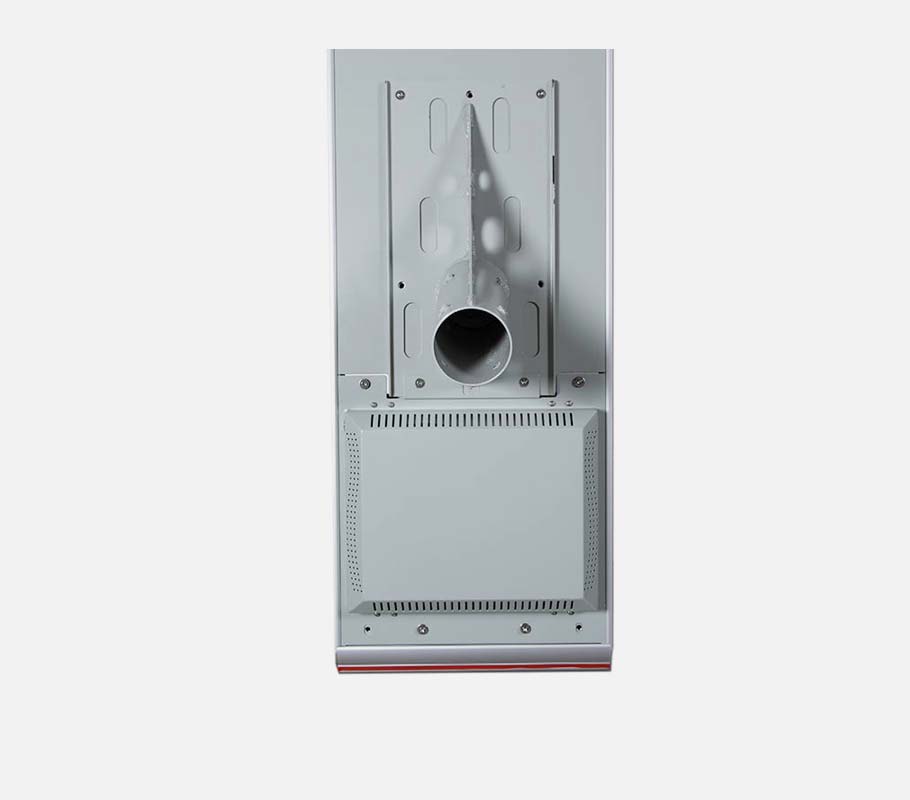

  • 100W all-in-one compact unit

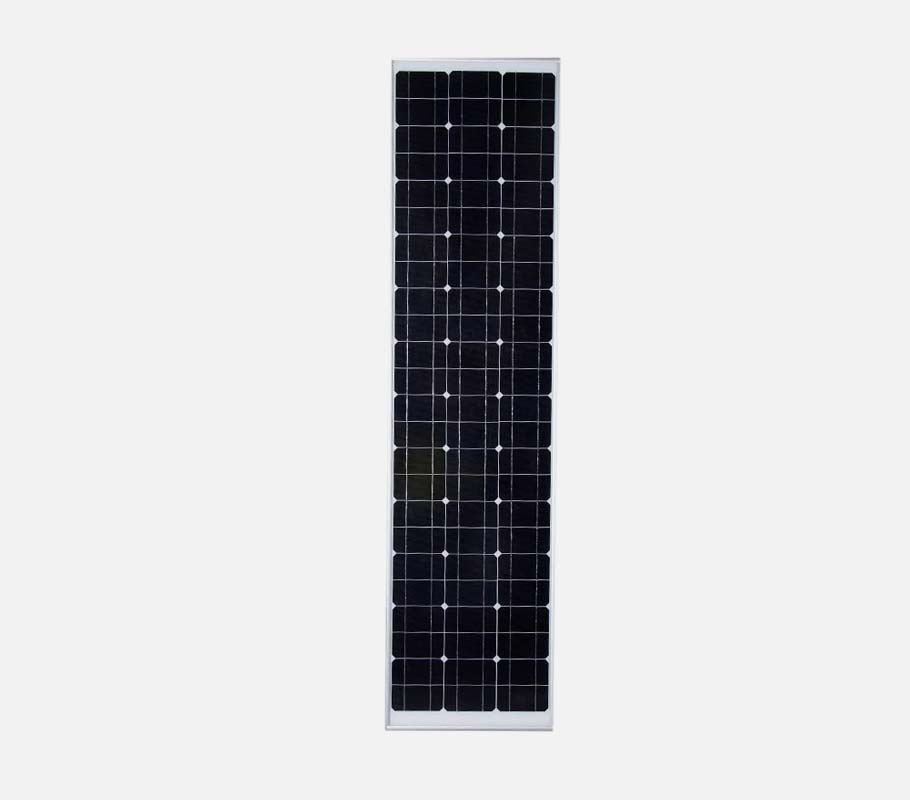

  • Mono-crystalline solar panel

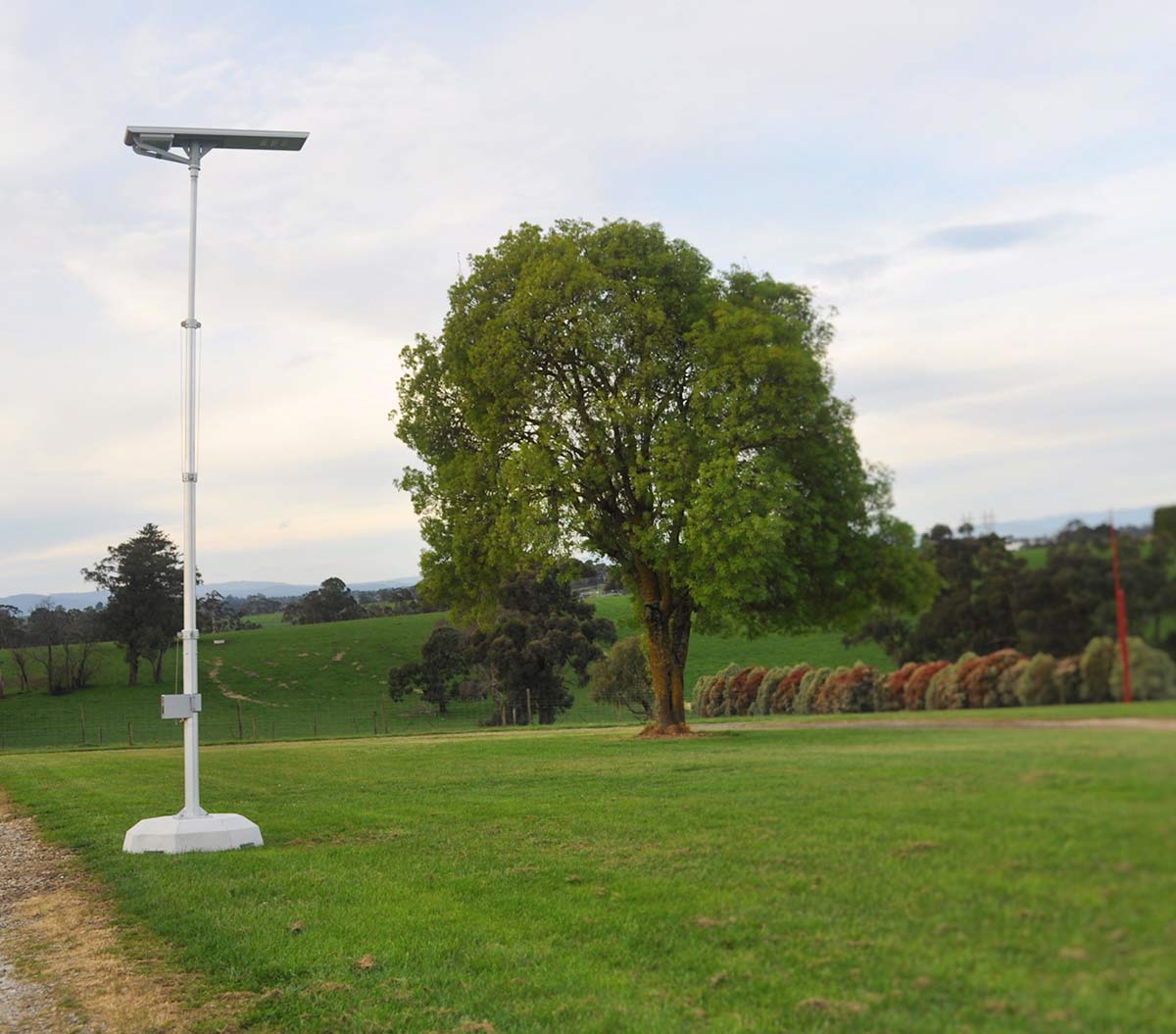

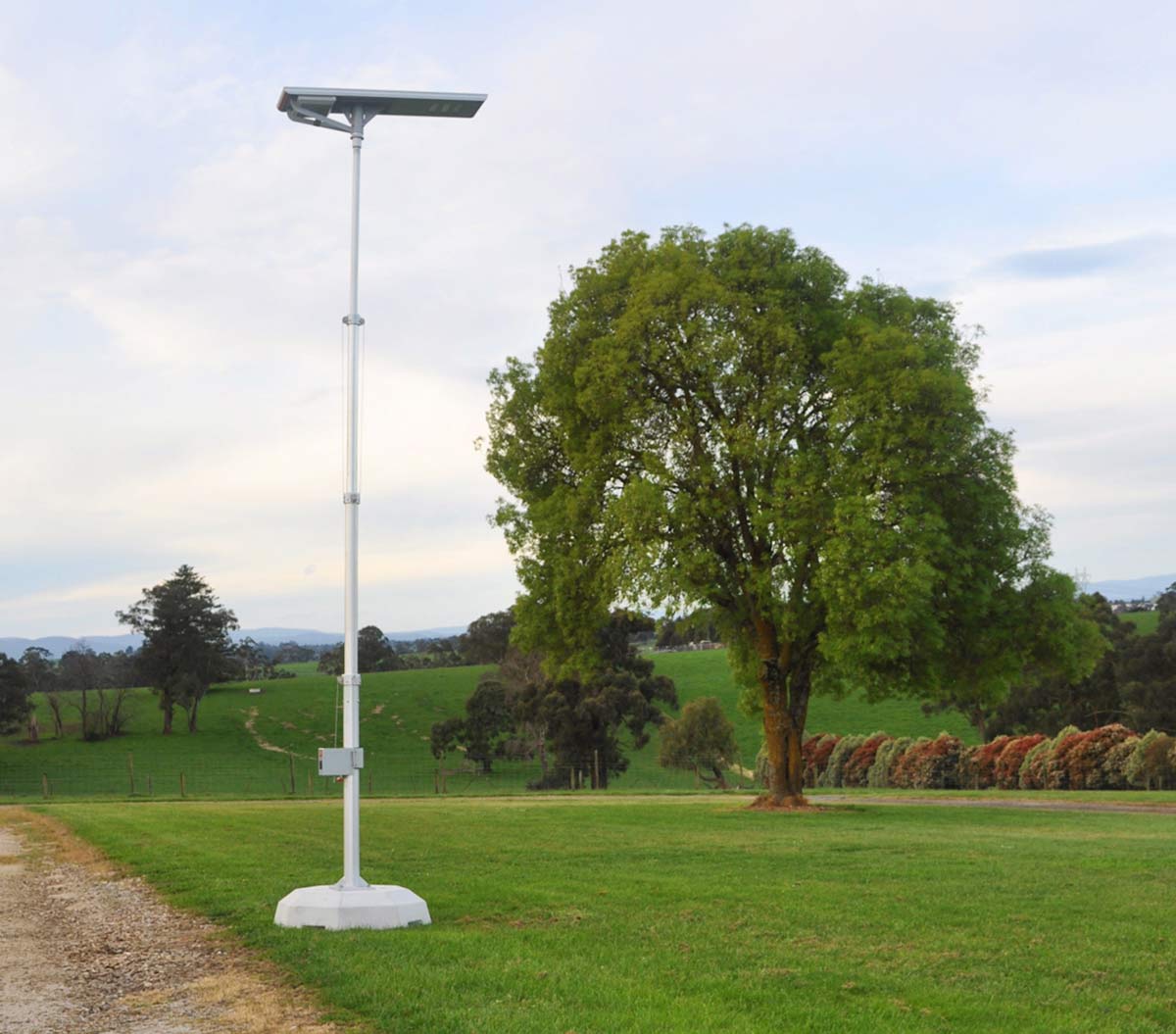

  • Telescopic light pole
  • Winch from lowered to raised position in less than 2 minutes
  • Extremely quick installation and removal
  • Convenient to transport
  • Built in lithium-ion battery storage
  • Two concrete base options to suit different wind regions
  • Built-in galvanised fork ports in base
  • Heavy duty lifting lugs
  • Strengthened with reo-bars running throughout base
  • No diesel required!
  • Great for sites with ever changing lighting needs
Buy Online
Need to order a large quantity? Enquire now

Videos

Solar Lighting

Specifications

Power Consumption 100W
Beam Angle 150° x 70°
Luminous Flux 14,000 Lm (TYP)
Colour Temperature 2700 - 6500K
Time to fully charge 8 hours
Battery Lithium life PO4

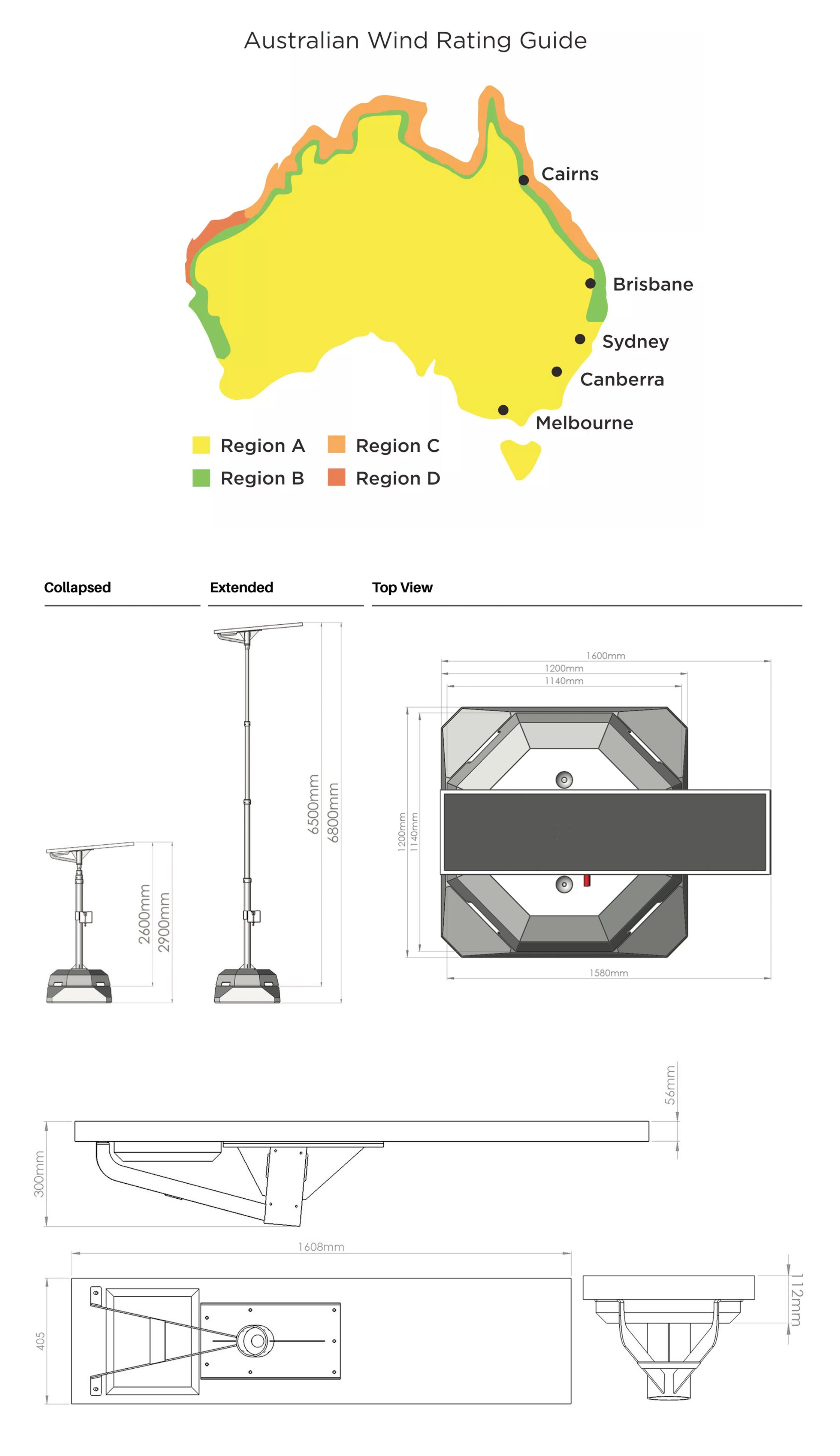

Telescopic Pole Single Concrete Block Wind Region A Double Concrete Block Wind Region B and C
Collapsed Overall Height 2.6m 2.9m
Overall Height 6.5m 6.8m
Weight 720kg 1720kg
Arena Light

Downloads

Warranty: Light Fitting Warranty: Light Pole SOP - Installation
IES File
*Please note this file will only open using programs such as Dialux, AGI32, or Relux.
Yes, on request. Please contact us
This will vary depending on the rating that you are seeking to achieve.
