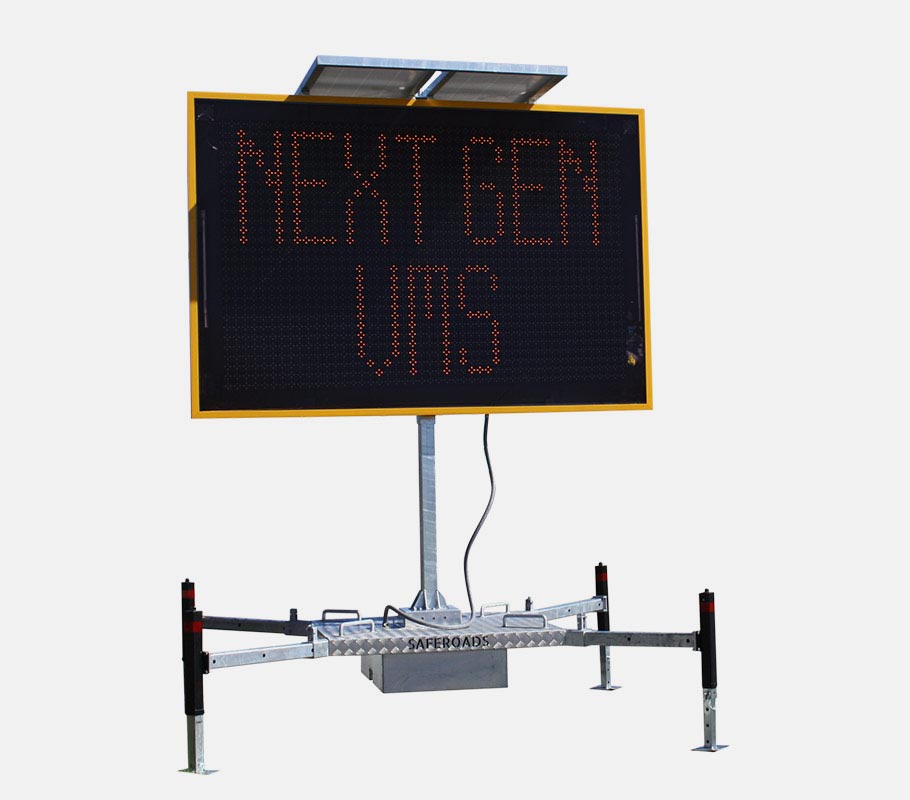

Nova VMS

Nova VMS

 The next generation in VMS

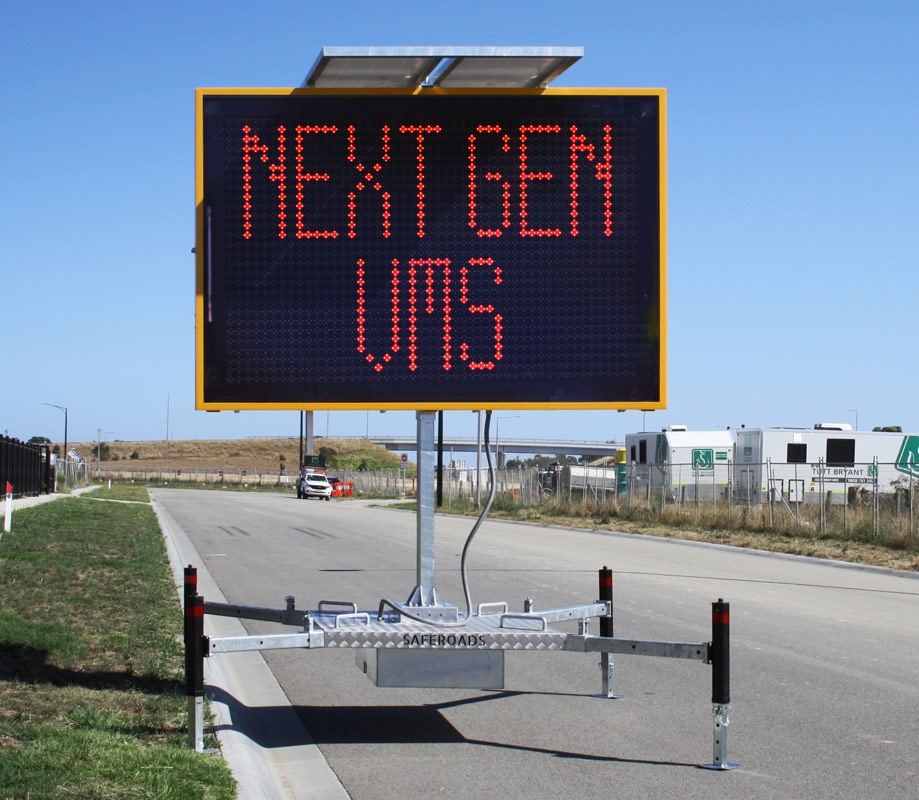

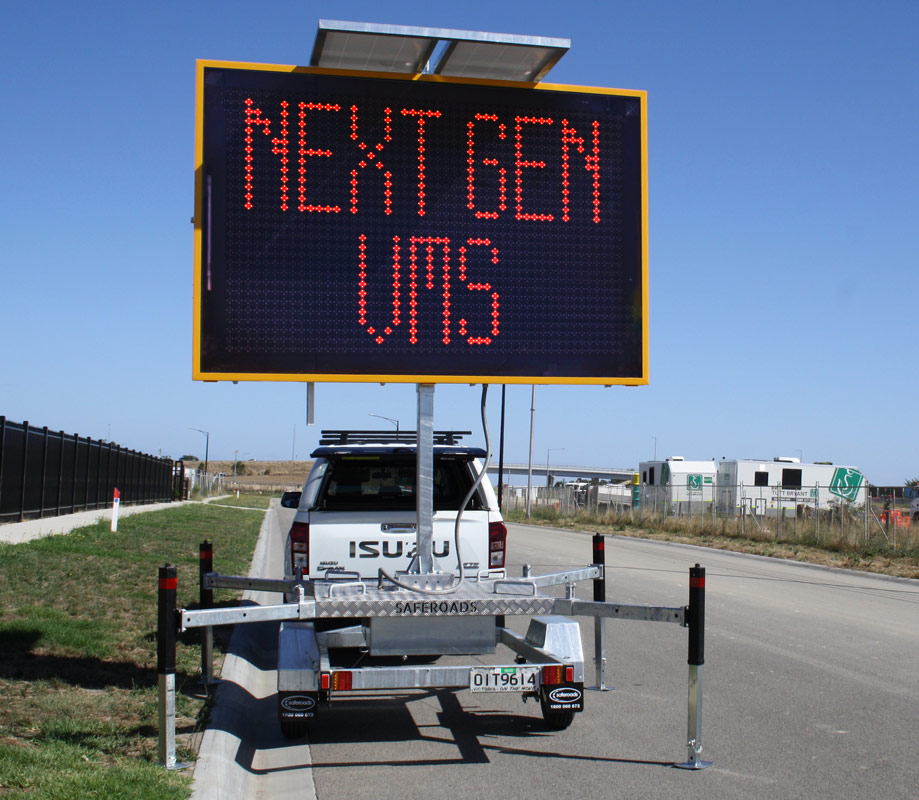

Innovative and unique, the Nova variable message sign has the option of removing the sign from the trailer. The two piece design reduces the risk of valuable and vital components being stolen while on site, and allows multiple signs to be deployed from a large trailer or truck, instead of individual trailers.

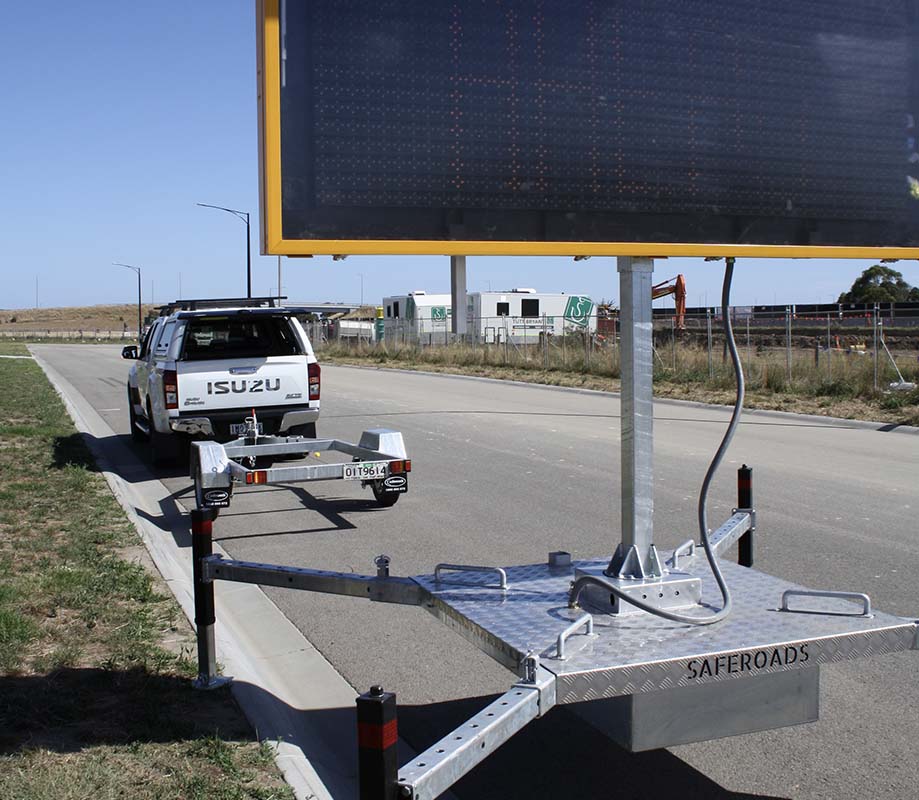

No matter the location, deployment can be achieved in less than 10 minutes. The unit detaches from the trailer leaving the assembly with fully concealed batteries mounted underneath the chassis. This prevents vandalism access, ensuring the security of the asset. Up to 4 units can be transported per heavy rigid truck, and five units per semi trailer truck.

Available in amber or five colour, the Nova VMS can be easily controlled from a smartphone or tablet, from any location. The Zone 2 management platform enables messages and schedules to be updated with ease. All Saferoads VMS customers have access to 24/7 Australian support services.

Designed and built in Australia, powered with solar energy and running on 12V electrics (no hydraulics), its a cleaner and more environmentally friendly solution for VMS.

  • C-Size VMS with unit that detaches from the trailer
  • Deployed in less than 10 minutes
  • Reduces the risk of vandalism
  • Requires minimal maintenance with no hydraulics!
  • Australian designed and built
  • Fully galvanised and powder coated

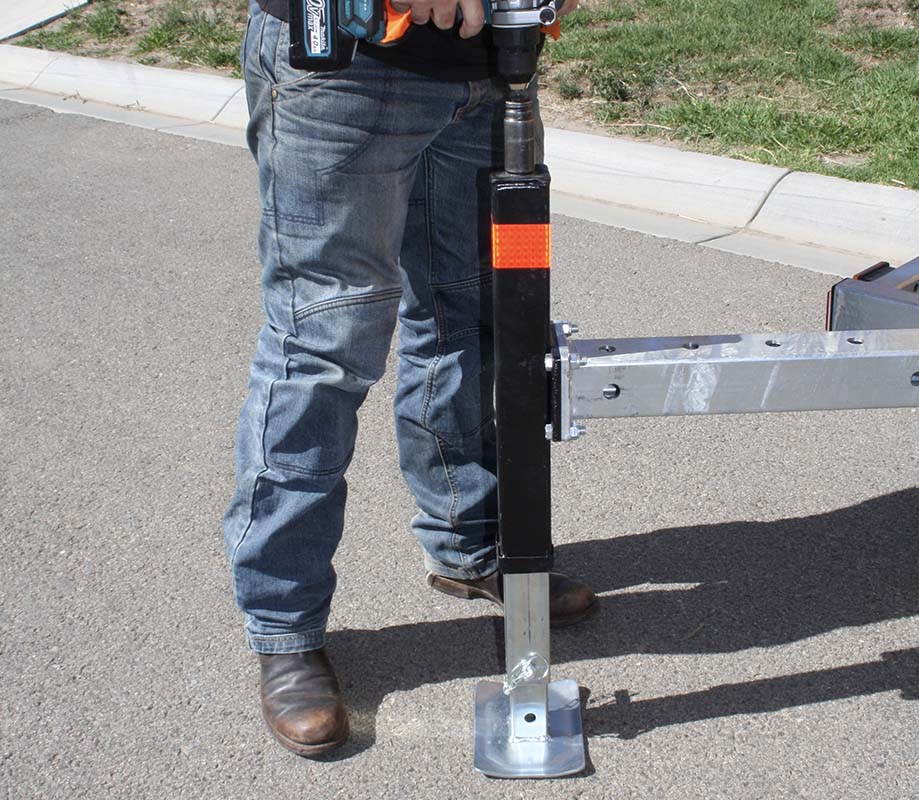

  • Stabiliser legs controlled by low speed drill or impact wrench

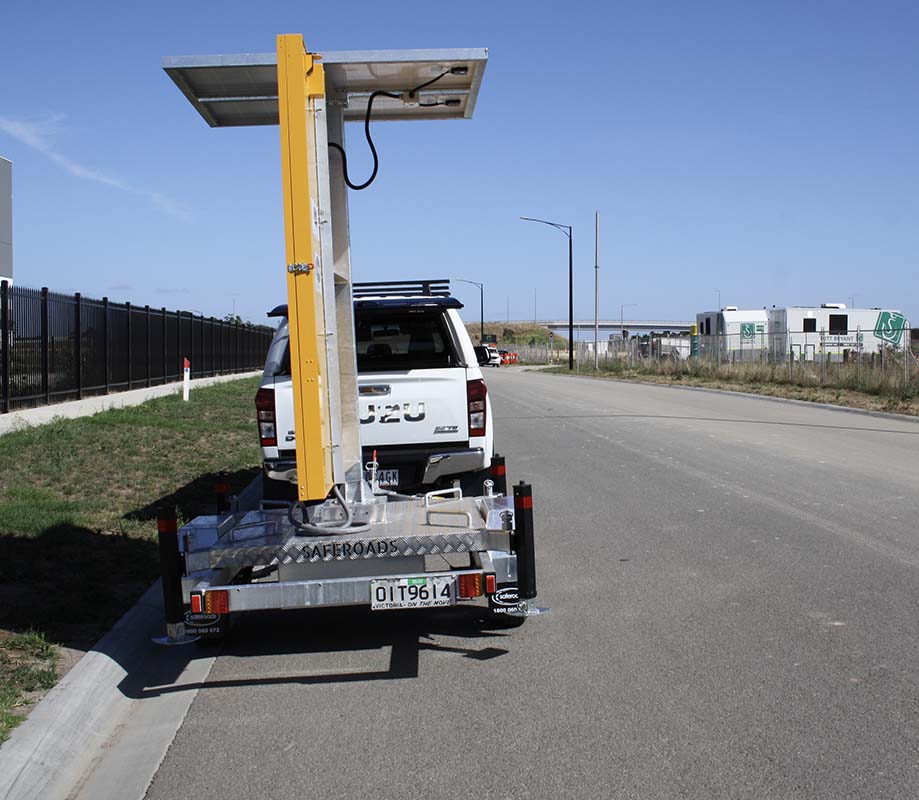

  • Electric mast system controlled by batteries/screw drive mechanism
  • Amber or five colour (blue, green, amber, red and white) options
  • Accessible from any browser/smartphone/tablet device
  • Zone Cloud Software is 100% Australian developed, owned and hosted
  • 12V 200AH batteries are securely mounted and concealed underneath the chassis

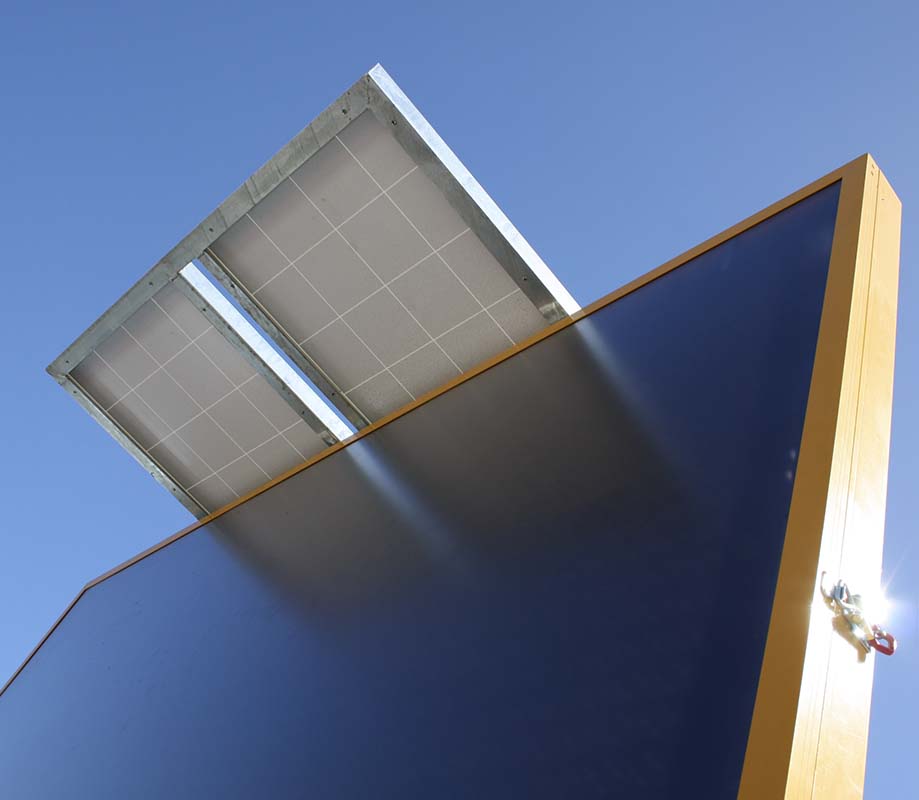

  • 2 x 200W solar panels
Buy Online
Need to order a large quantity? Enquire now

Videos

Nova VMS
Electronic Signs

Specifications

Model Amber or 5 Colour
Weight (Overall) 1150kg
Weight (Trailer Only) 250kg
Travelling Length 3850mm
Travelling Width 1800mm
Travelling Height 2860mm
Max Deployed Width 3000mm
Max Deployed Length 3000mm
Max Deployed Height 4120mm
No of 12V 200AH Batteries Amber - 2 / 5 Colour - 3
No of 200W Solar panels 2


Product Features & Inclusions

LED Display
48 x 28 Full Matrix LED Pixels
400mm Character Height
Galvanised Removable Trailer

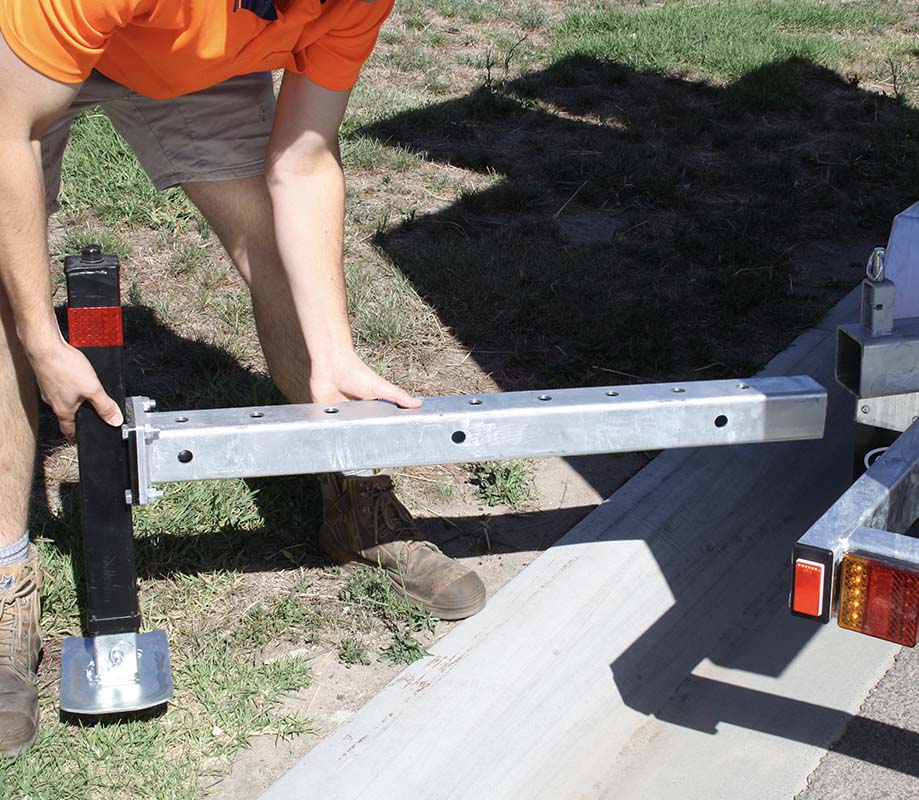

Extendable Stabilising Outriggers
Automatic Brightness/Dimming
No Software To Install
Checker Plate Floor
Sealed Pelican Case on Trailer
Program Using Any Tablet/Smartphone
Scheduling Software Allows Pre Programming
Spare Wheel
Radar System for Speed Monitoring - Optional
Remotely Monitor Battery Levels, GPS Location, Power And Usage Settings

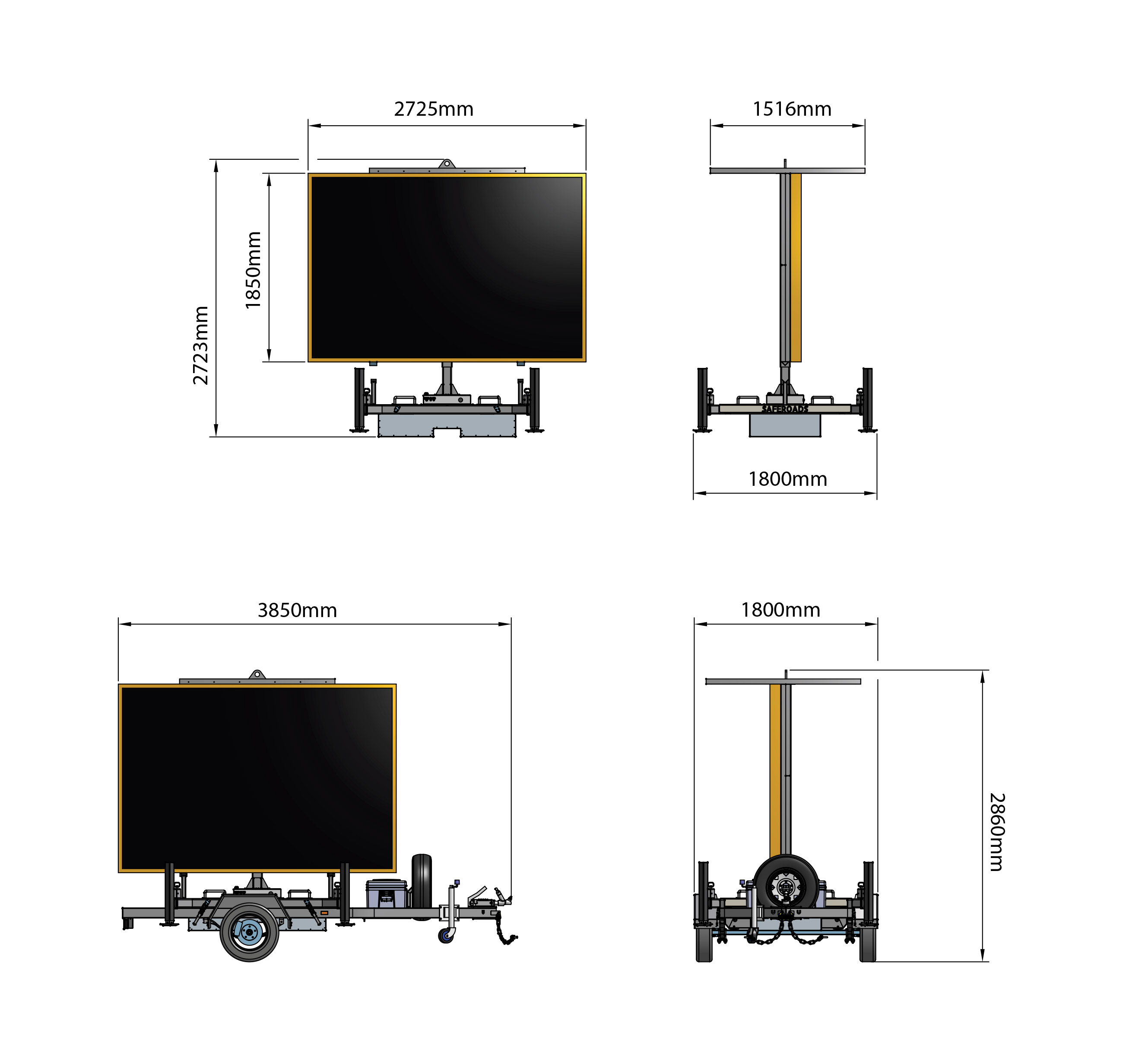

Nova VMS Drawing
